Appendix
A.2 Data tables
SIRIUS 3RW5 Modbus TCP communication module
Manual, 03/2018, A5E43676481002A/RS-AA/001
75

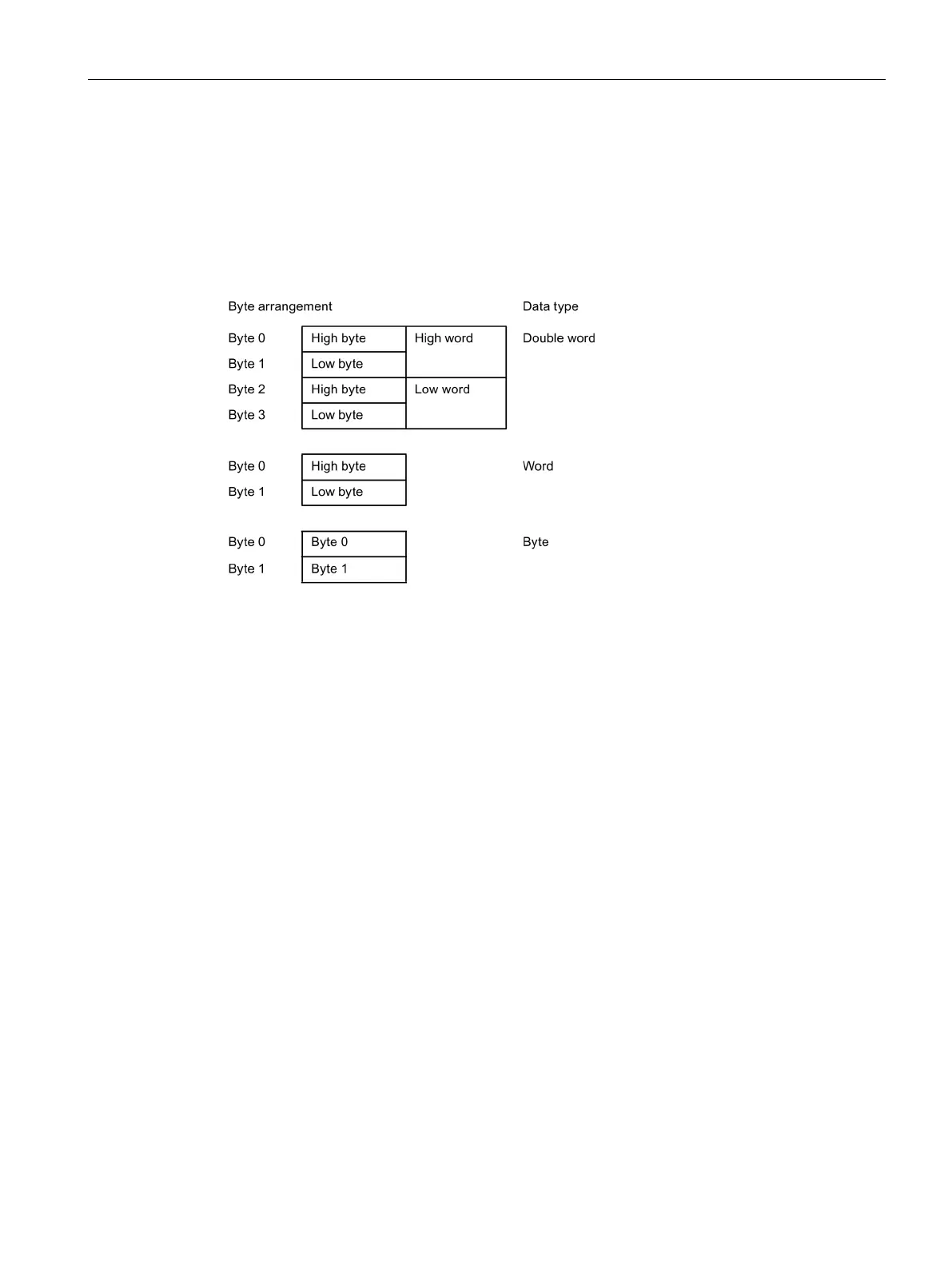

When data longer than one byte are stored, the bytes are arranged as follows ("big endian"):
1 register corresponds to 1 word (2 bytes).
The following specifications apply in the data tables:
● Addresses are represented as hexadecimal values.
● The access to undefined addresses is illegal and generates an error message.
● Non-relevant (reserved) entries are not listed.
Fill these entries with "0" when writing.
● In data tables for parameters, codes are shown in square brackets "[...]". "[D*]" describes
the default coding.
The object number (Obj. No.) is used for unique identification of all parameters available in
the 3RW5 soft starter. In the case of a parameterization error, the object number of the faulty
parameter is displayed in data table "Soft starter diagnostics" (Page 82) under
"Faulty parameter number".
