Siemens SIRIUS 3RW5 series User Manual

SIRIUS 3RW5 Modbus TCP communication module
Manual, 03/2018, A5E43676481002A/RS-AA/001
73
Appendix
A
A.1
Data formats
A.1.1
Current values as percentages

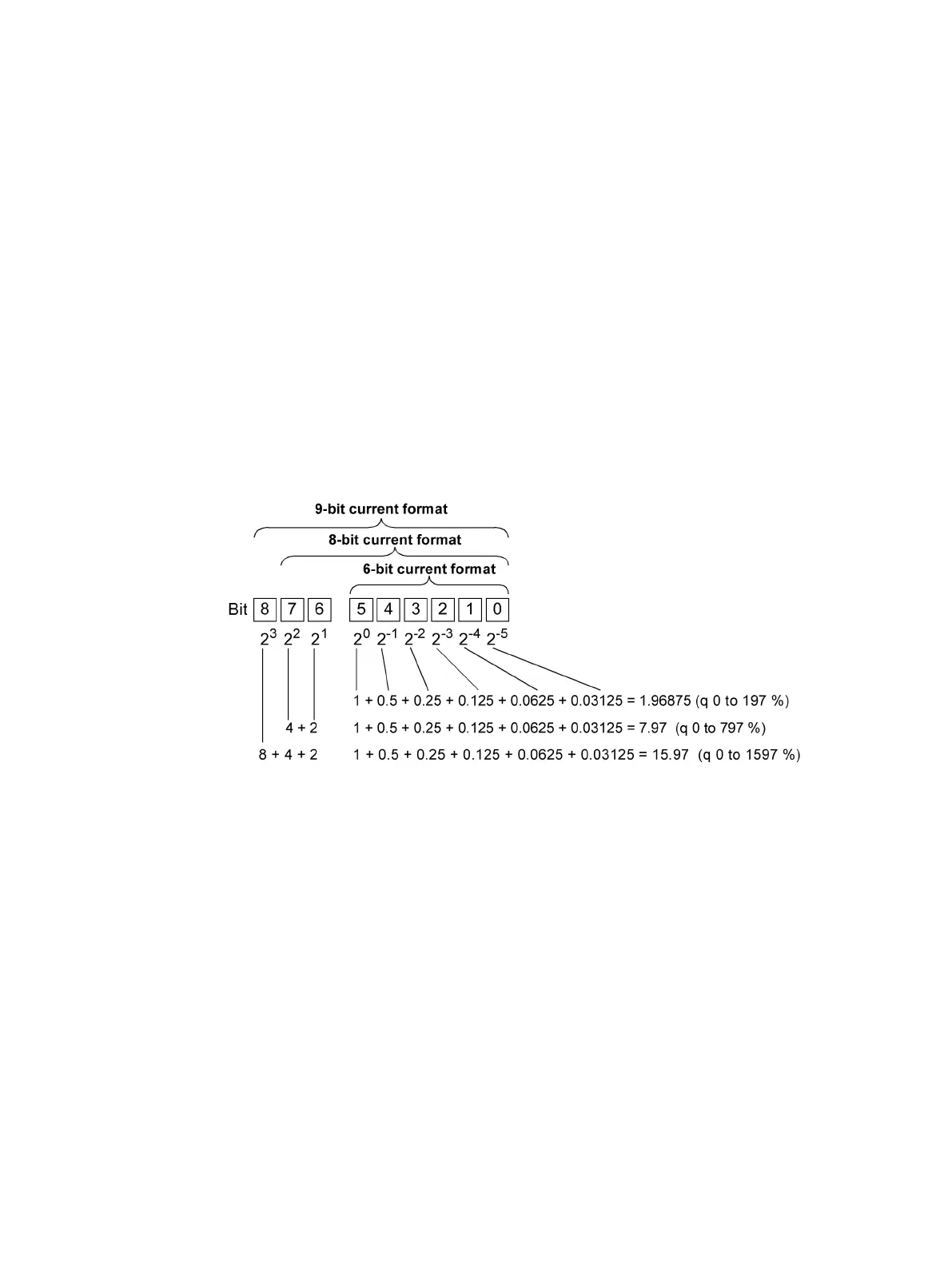

Current values are coded as percentages in different current formats:
● 6-bit current format
● 8-bit current format
● 9-bit current format
Examples of current values
The following values are examples of current values expressed as percentages:
● Phase currents I L1, I L2, I L3 (8-bit current format)
● Last tripping current (9-bit current format)
You will find a complete overview of all measured values in chapter Measured values
(Page 86).
