Description
3.6 Modbus TCP cable
SIRIUS 3RW5 Modbus TCP communication module
Manual, 03/2018, A5E43676481002A/RS-AA/001
27

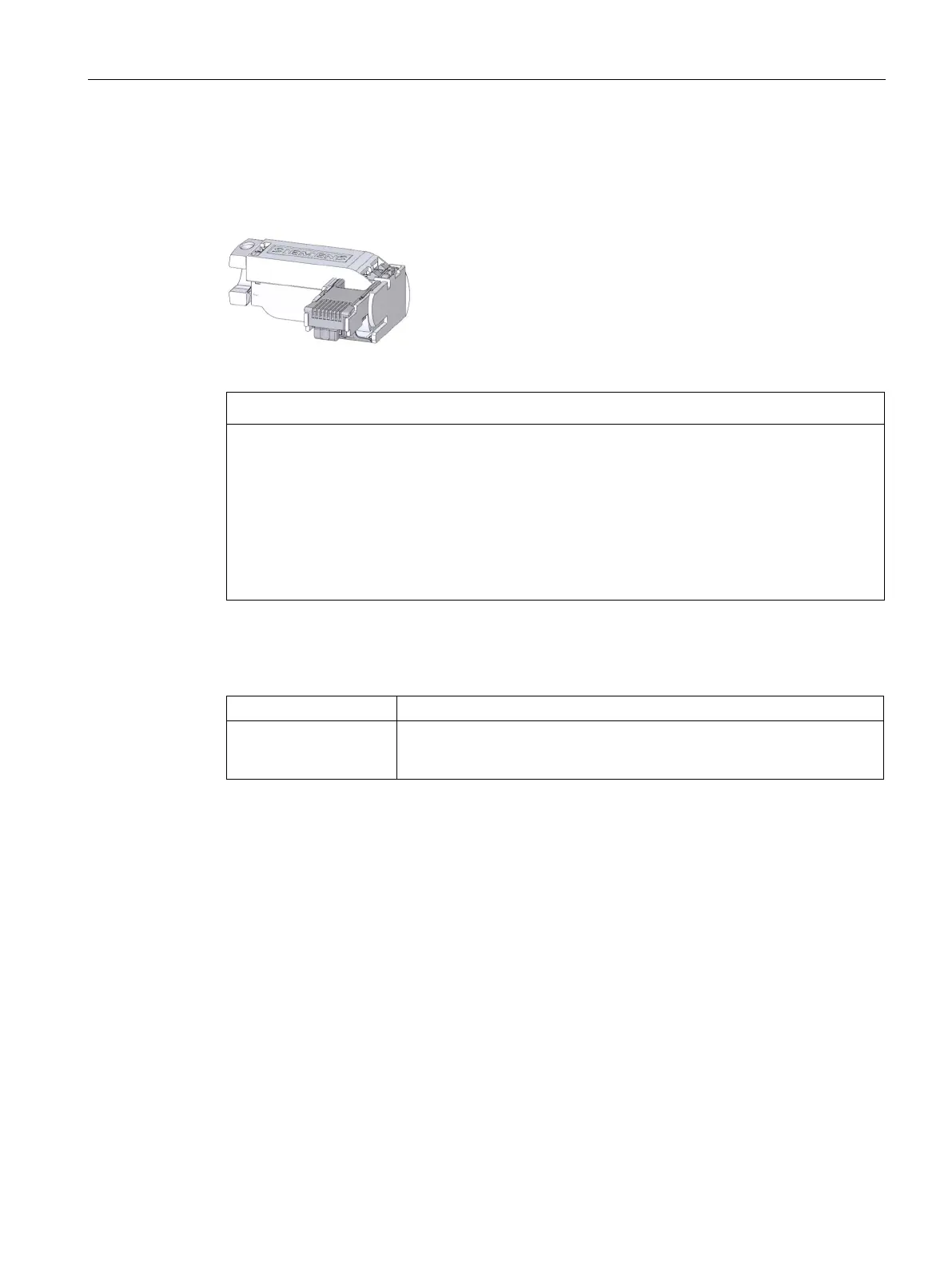

For connection, use only angled industrial bus connectors with a RJ45 socket for Industrial
Ethernet.
Damage to the cable, bus connector and 3RW5 communication module
If you use unsuitable bus connectors, the following can happen:
• The hinged cover of the 3RW5 soft starter does not close.
• The connecting cable is impermissibly bent.
• The bus connector or the 3RW5 communication module is damaged.
Use bus connectors with a right-angled cable outlet and dimensions that match the
recommended bus connector.
Recommended bus connector
6GK1901-1BB20-2AA0 Industrial Ethernet FastConnect RJ45 Plug 90 2x 2, RJ45 plug connector
(10/100 Mbit/s) with rugged metal housing and FC connecting method, for
IE FC cable 2x 2; 90° cable outlet
