Connecting
5.1 Connecting the bus connector
SIRIUS 3RW5 Modbus TCP communication module
36 Manual, 03/2018, A5E43676481002A/RS-AA/001

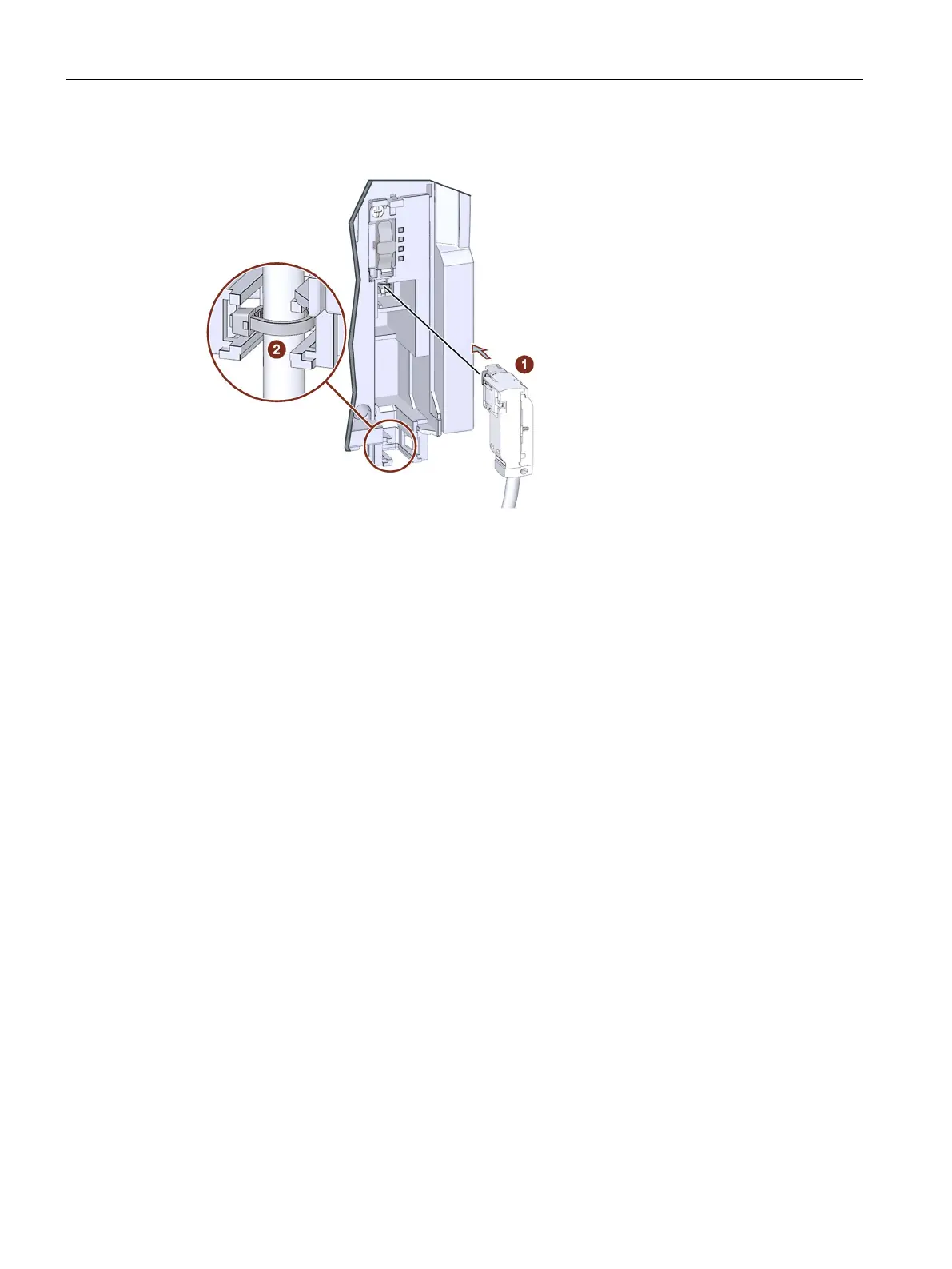

1. Plug the bus connector of the cable into the socket of the 3RW5 communication module.
2. Secure the cable with a cable tie.
The 3RW5 communication module is now properly mounted and connected. You can
integrate the 3RW5 soft starter into the associated network environment.
