3.3 SIWAREX WT241 product overview
SIWAREX WT241
16 Manual, 05/2015, A5E36046748A
3.3 SIWAREX WT241 product overview
The electronic weighing system described here is a stand-alone weighing electronic; having
all functions and interfaces on board, which are necessary to operate an industrial scale.

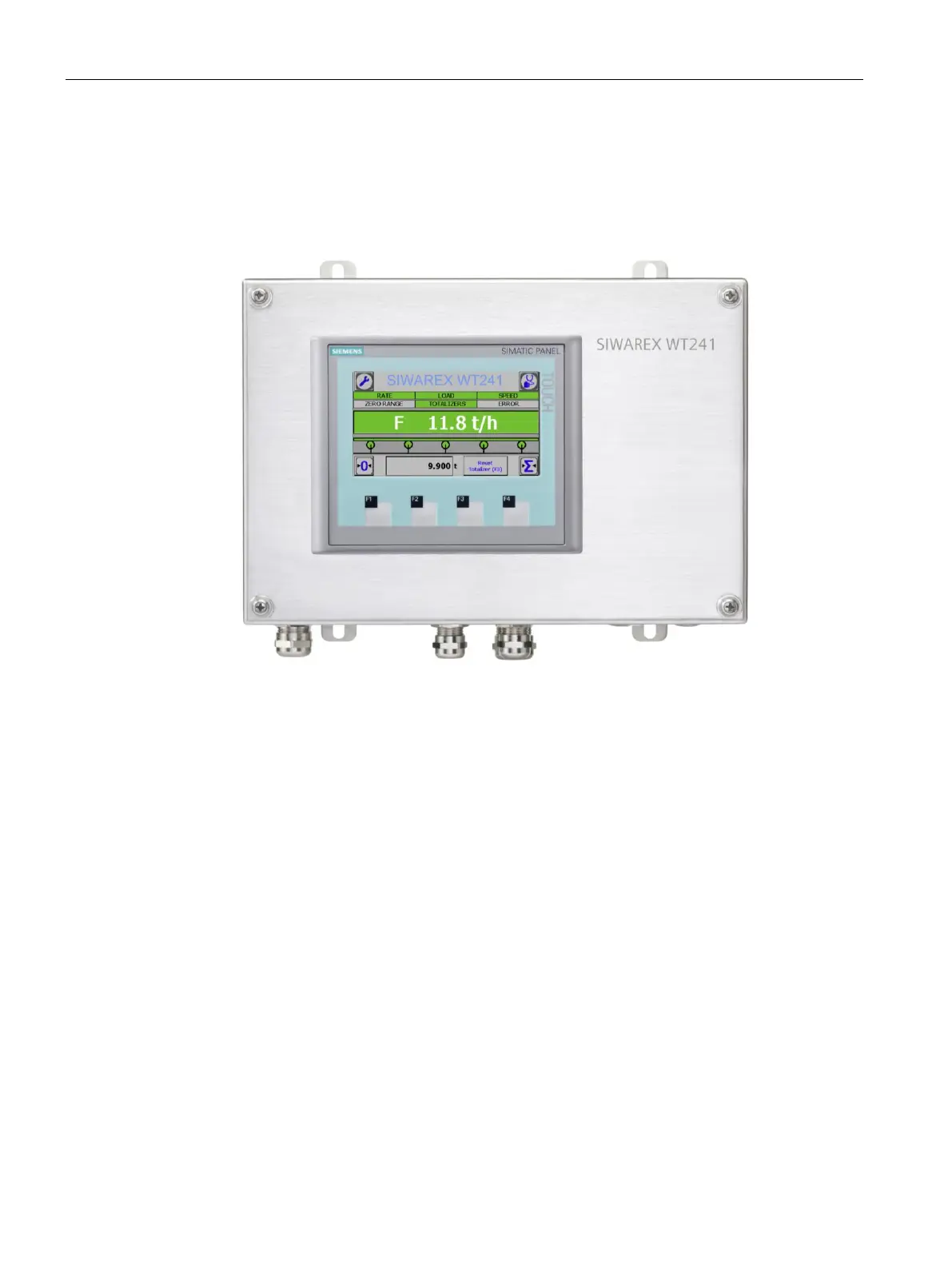

Figure 3-1 SIWAREX WT241 weighing terminal
The terminal consists of following components:
 Weighing electronic SIWAREX WP241
 Touchpanel SIMATIC KTP400 basic color PN
 Power supply
 Terminal board for belt scale, speed sensor and analog output
 Stainless steel enclosure (1.4301) with
o M16 cable gland for mains cable
o 3 M16 + 1 M20 cable gland for load cell connection and speed sensor
o 4 M16 through-hole with dummy plugs
o Earthing bolt
