8 Scale parameters and functions of the belt scale
8
8.1 SIWAREX WT241 Operating View

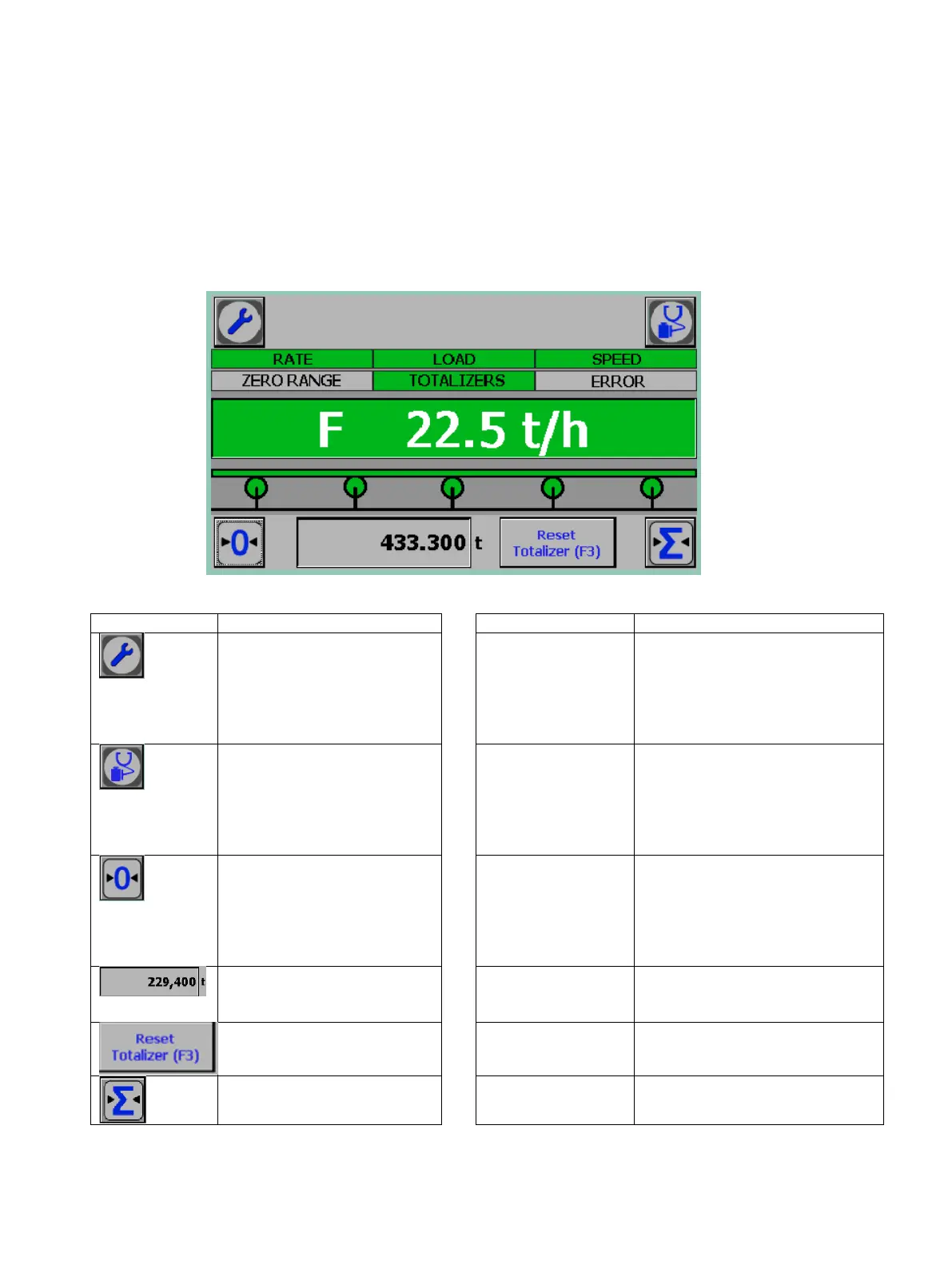

Figure 8-1 Operating View SIWAREX WT241
Variable
Description
Variable
Description
Go to main menu
RATE
Limit flow rate
Yellow if current rate below min-
imum limit
Red if current rate above maxi-
mum limit
Setting in „1.3.1 Limits 1/2“
Go to menu 2.0 Diagnostics
LOAD
Limit belt load
Yellow if current rate below min-
imum limit
Red if current rate above maxi-
mum limit
Setting in „1.3.1 Limits 1/2“
Zeroing
SPEED
Limit belt speed
Yellow if current rate below min-
imum limit
Red if current rate above maxi-
mum limit
Setting in „1.3.1 Limits 1/2“
Main totalilzer
ZERO RANGE
Belt load within range of zero
offsets
Setting in “1.3.2 Limits 2/2”
Reset Main totalizer
TOTALIZERS
Totalizers active
Go to menu 4.0 Totalizer
ERROR
An error is occured
