Siemens SIWAREX WT241 User Manual

Connecting
6.1 Overview
SIWAREX WT241
24 Manual, 05/2015, A5E36046748A
Connections at bottom side

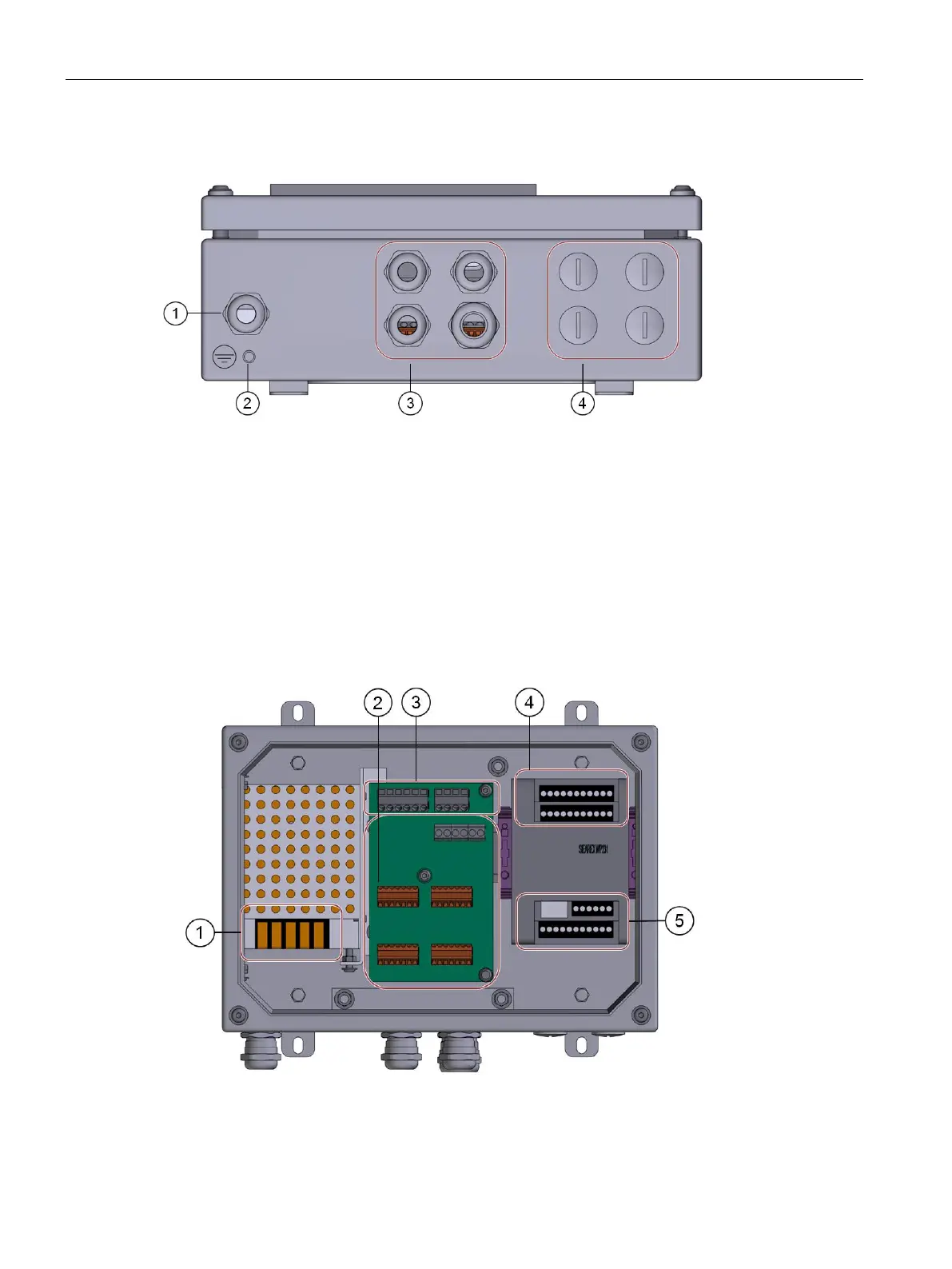

Figure 6-2 SIWAREX WT241 bottom side with connections
①
M16 cable gland for mains cable
②
Earthing bolt
③
M16 and M20 cable glands for load cells
④
Through holes equipped with dummy plugs
for further connections
Connections inside the terminal
Figure 6-3 SIWAREX WT241 inside
