TXP-CLC Course
DB diagram page edit Default Symbols info standart
>1
&
&
>1
10 s 0
channel 1
DCM
moto r/sole noid va lve
Standard symbols
Standard symbols
for every function:
for every function:
Measurement
Measurement
Open loop control
Open loop control
Closed loop control
Closed loop control
Standard symbols to design logic diagrams
are provided by an ES 680 symbol library
DCM
MO
w/o DT
DCM
MO - R
w/o DT
TAP
DCM
MO
w/o DT
DCM
MO - R
w/o DT
TAP

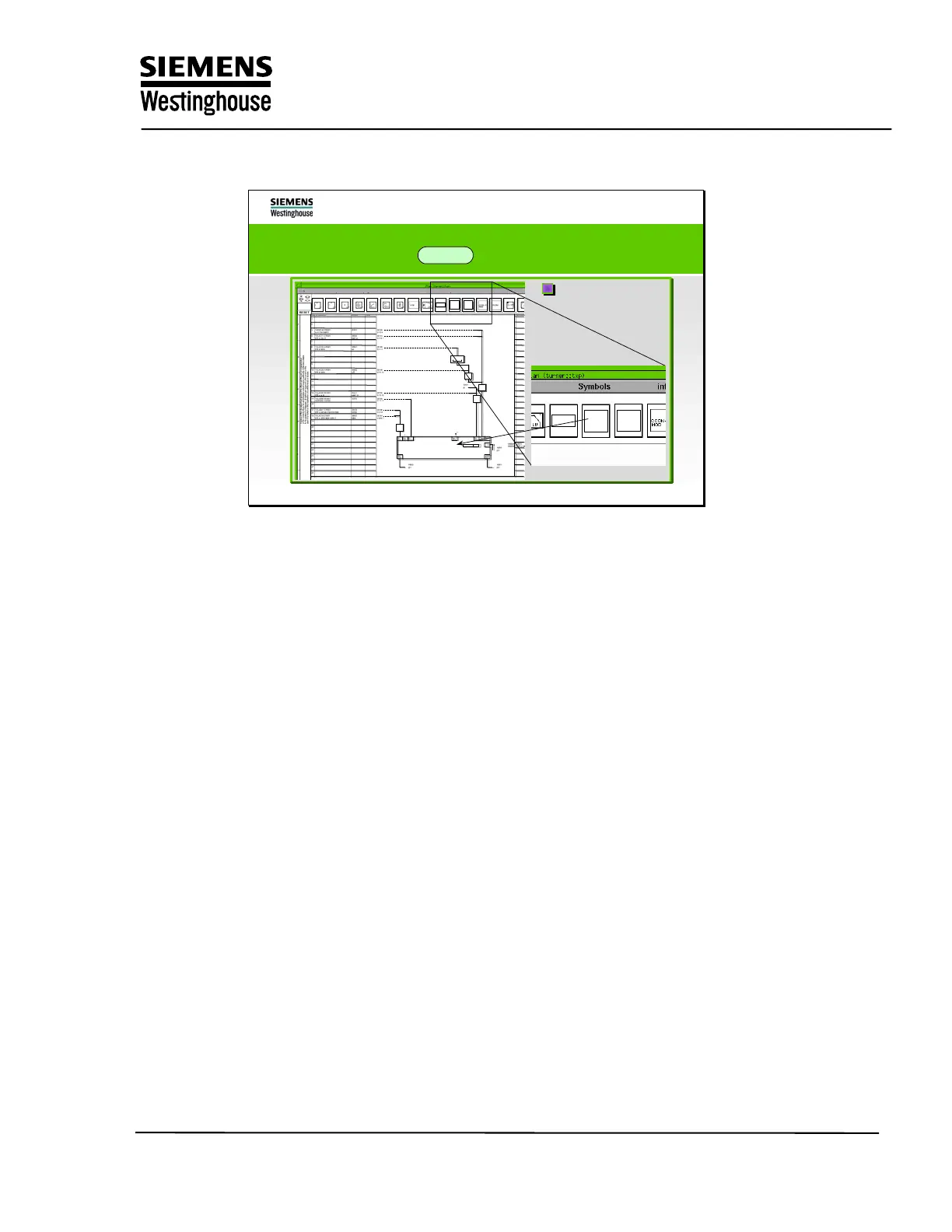

Standard blocks are available in the form of symbols for creating and modifying
function diagrams. The symbols are assigned to the individual levels and
functions. This prevents symbols being entered in levels in which they do not
perform a function.
The symbols are placed in the diagram using the “drag & drop” principle (click
symbol in the symbol bar, drag it into the desk-top, and place it at the desired
location).
Function blocks are connected simply by drawing connecting lines from one
symbol port to another symbol port. Invalid connections are rejected immediately.
