Overview
14
Building Technologies A6V10257473_b_en_--.doc
Fire Safety & Security Products 01.2010
4.3 XC1003-A

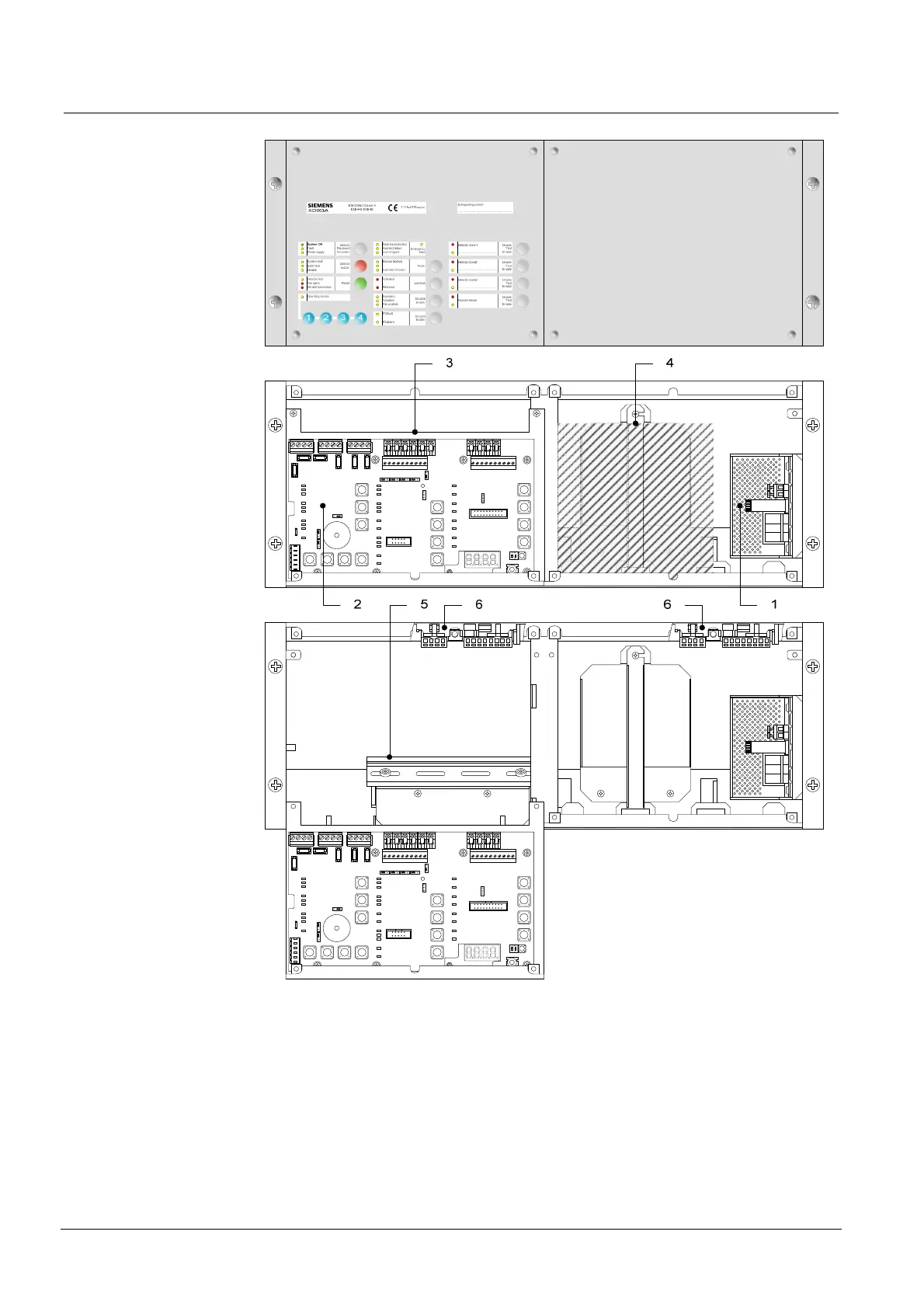

Fig. 3 XC1003-A
1 FCP1004-E power supply unit with charger
2 XCM1002 mainboard
3 Removable mainboard holder
4 4.5 A/h or 7.2 A/h batteries
5 DIN rail for accessory mounting (Z3B171 relay module, XCA1030 multi-sector
modules, etc.)
6 FDCI / FDCIO222 module for the connection to a fire detection system
(option)
