Removing the Rear Panel

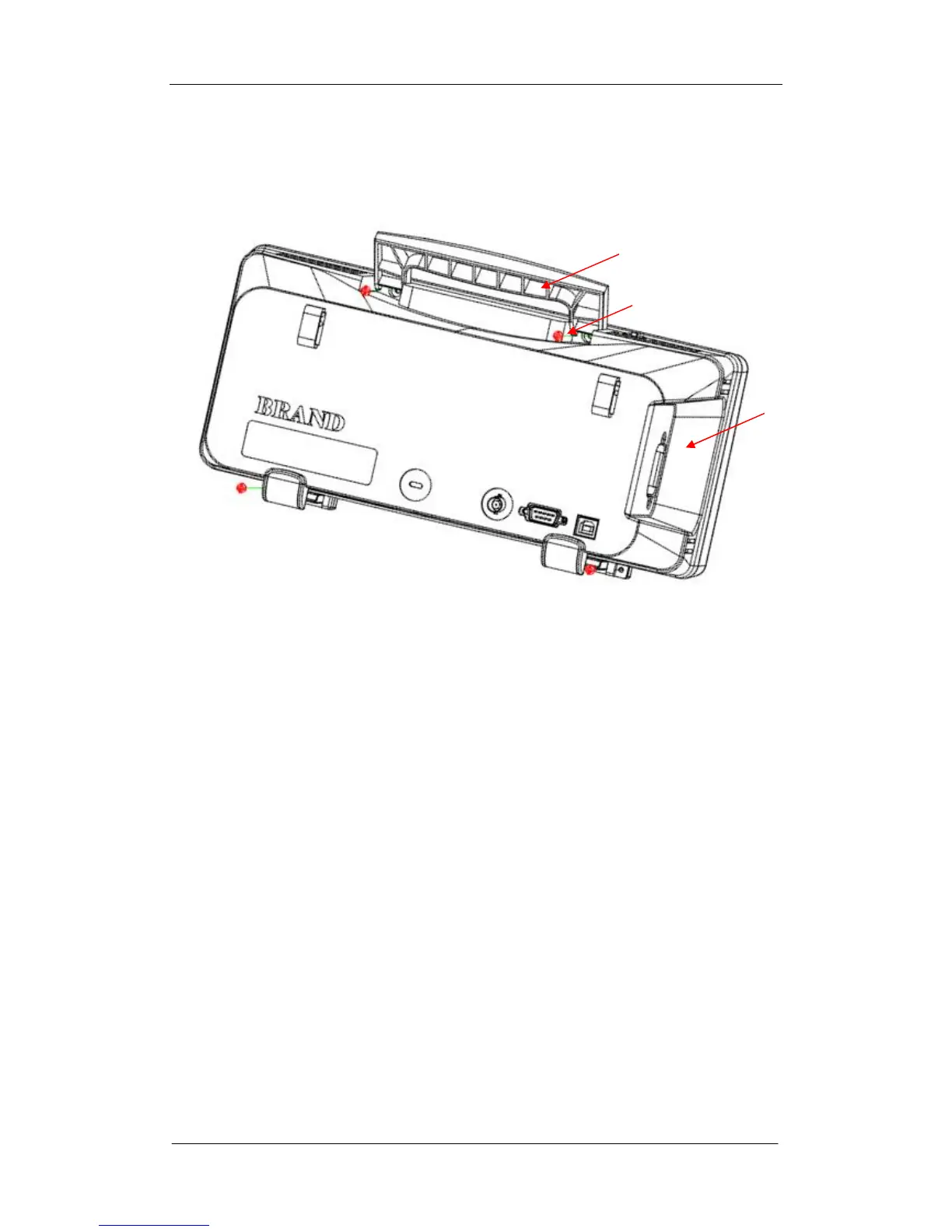

Figure 5-2 Removing the rear panel
Removing steps：
1. Place the oscilloscope face down on a soft surface such as an anti-static
mat.
2. Remove the four screws located on the rear panel. Tilt the handle to gain
better access to the top two screws.
3. Lift the rear panel up and off carefully.
To install the rear panel, please operate as the reverse steps.
The rear panel screw
The rear panel handle
