Removing the Power Supply Module

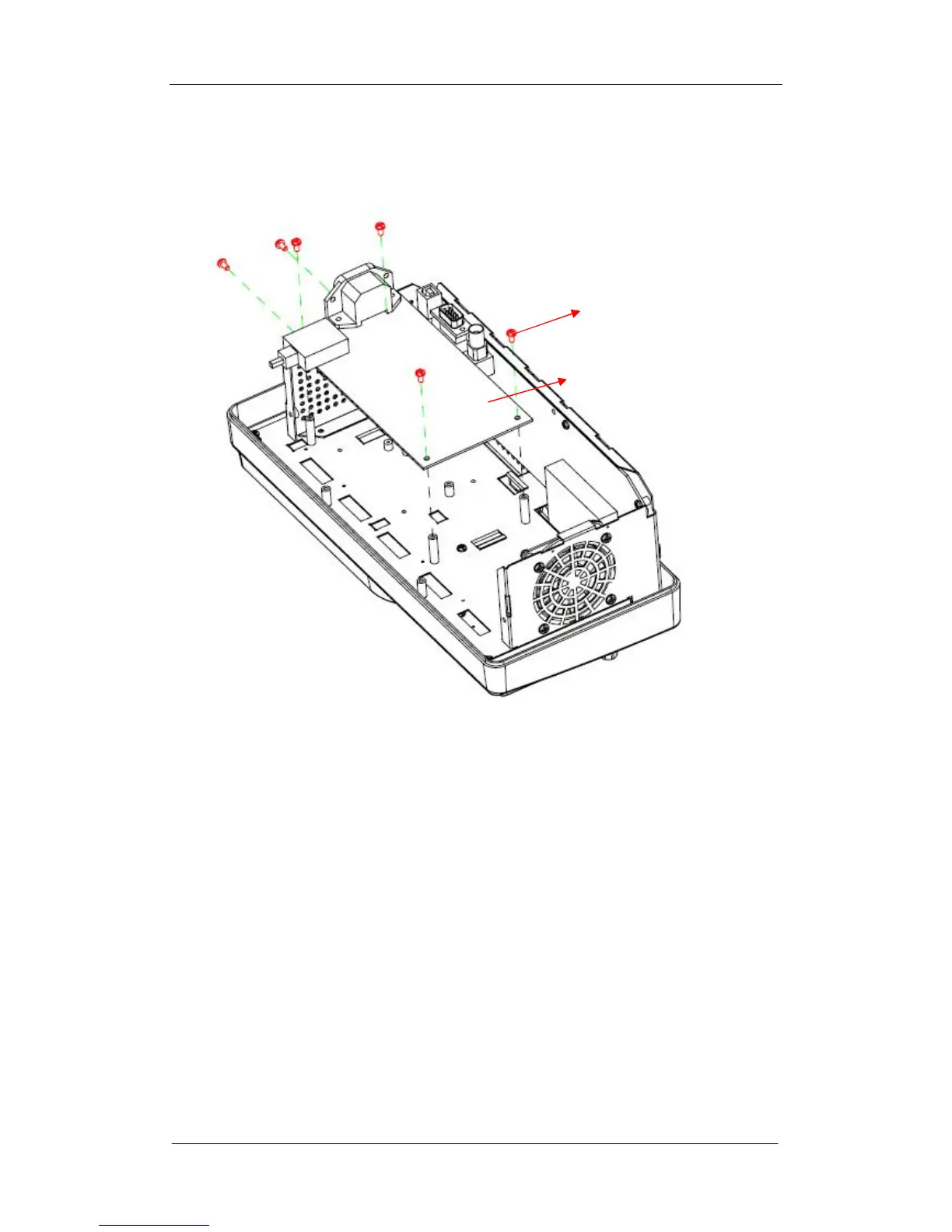

Figure 5-5 Removing the power supply module
Removing steps:
1. Place the oscilloscope face down on a soft surface such as an anti-static
mat.
2. Disconnect the backlight inverter cable connected to display module, the
power cable connected to main board module and the ground wire
connected to the metal shelf close to it.
3. Remove the six screws located on the edge of the power supply module.
4. Lift the power supply module up and off carefully.
To install the power supply module, please operate as the reverse steps.
Power supply module
Power supply module screw
