32 SDS1000CML/CNL/DL Service Manual
Removing the Rear Metal Cover

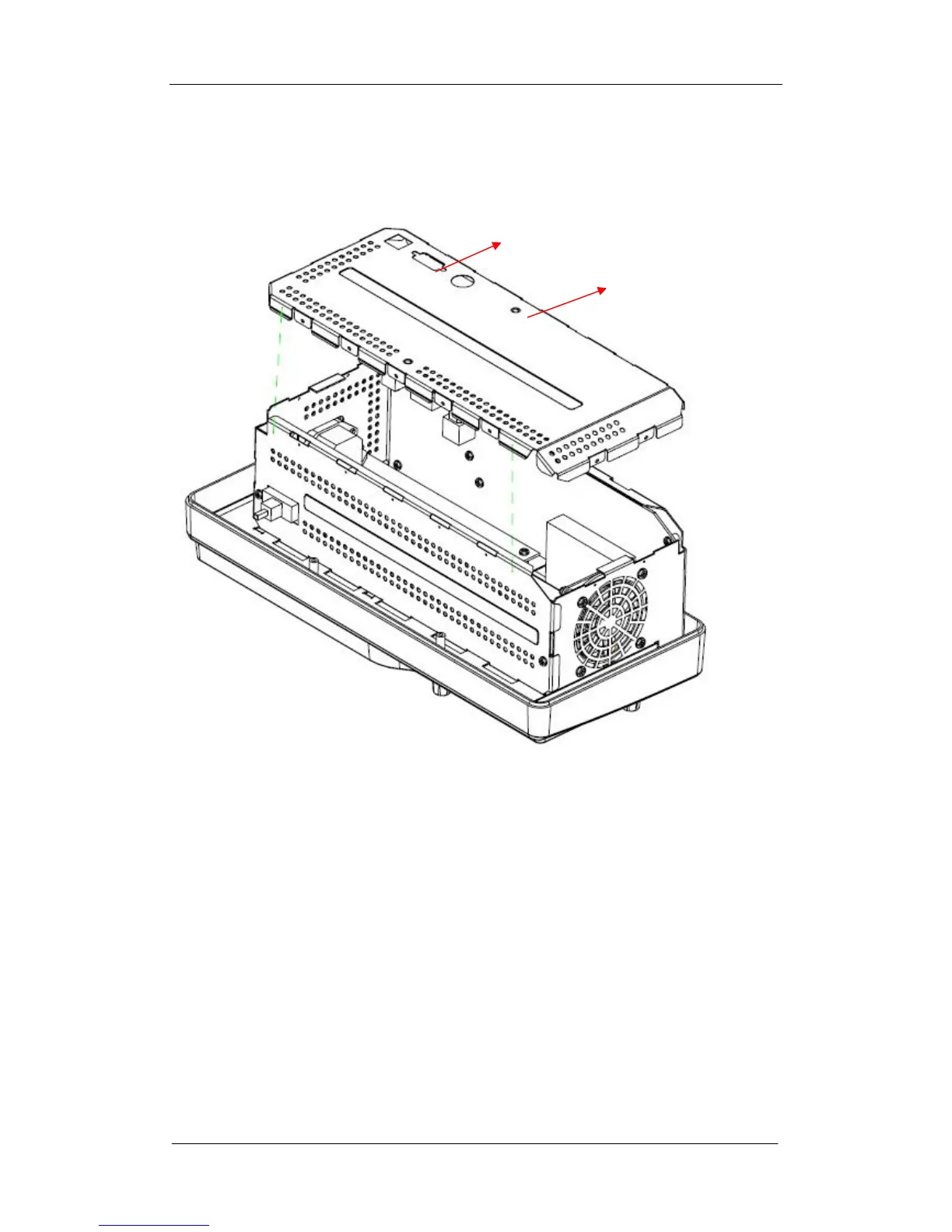

Figure 5-3 Removing the rear metal cover
Removing steps：
1. Place the oscilloscope face down on a soft surface such as an anti-static
mat.
2. Remove the two screws located around the RS-232 interface.
3. Since the edge of the rear metal cover is sharp, you should lift the rear metal
cover up and off carefully to avoid scratching your hand.
To install the rear metal cover, please operate as the reverse steps.
Rear metal cover
Rear metal cover screw
