SDS1000CML/CNL/DL Service Manual 39
Removing the Display Module

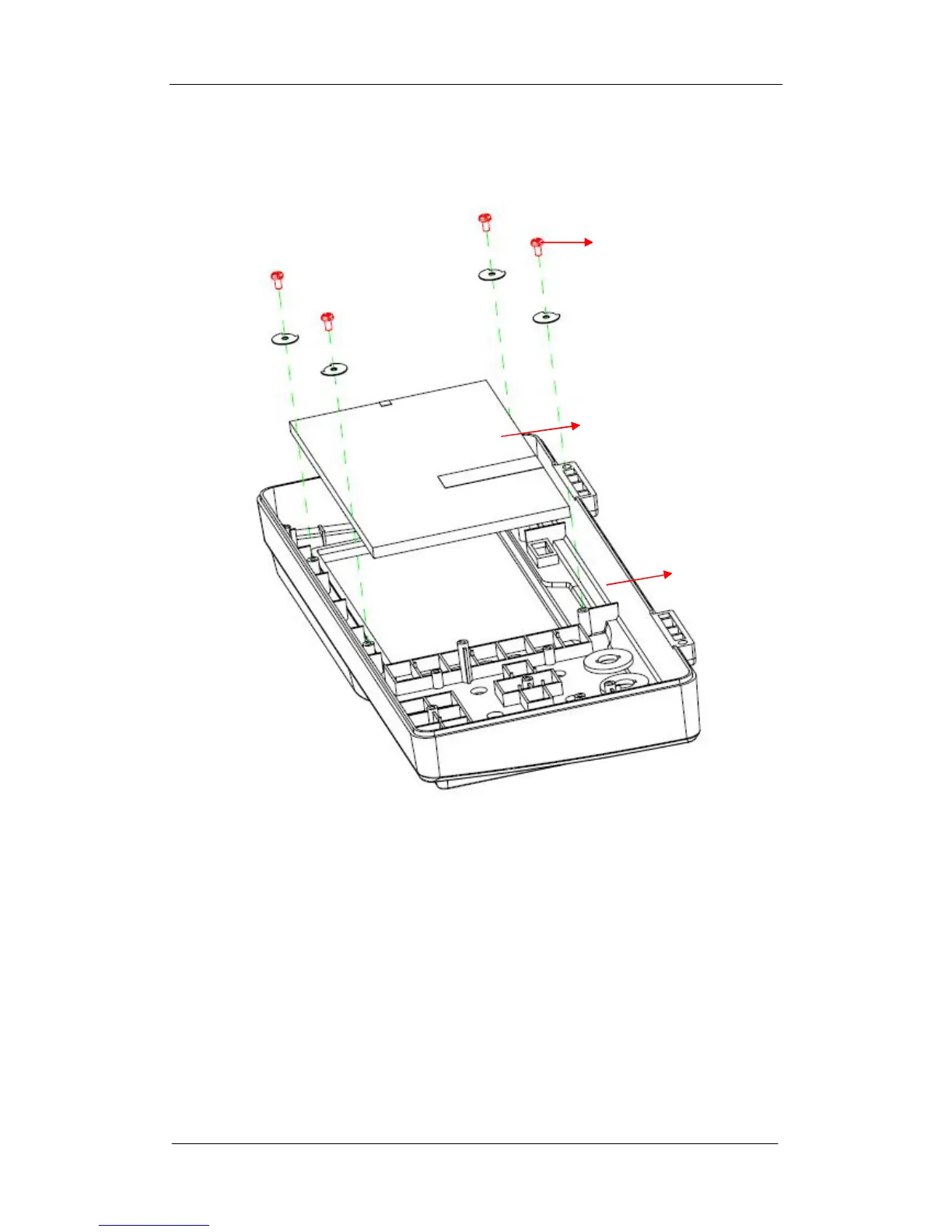

Figure 5-10 Removing the Display Module
Removing steps:
1. Place the front panel module on a soft surface as the figure above shows
such as an anti-static mat.
2. Disconnect the display cable from the front panel module.
3. Remove the four screws located on the edge of the display module.
4. Separate the display module from the front cover and then lift it up and off
carefully to avoid scratching the LCD screen.
To install the display module, please operate as the reverse steps.
Display module
