44 SDS1000CML/CNL/DL Service Manual
Main Board Drawing

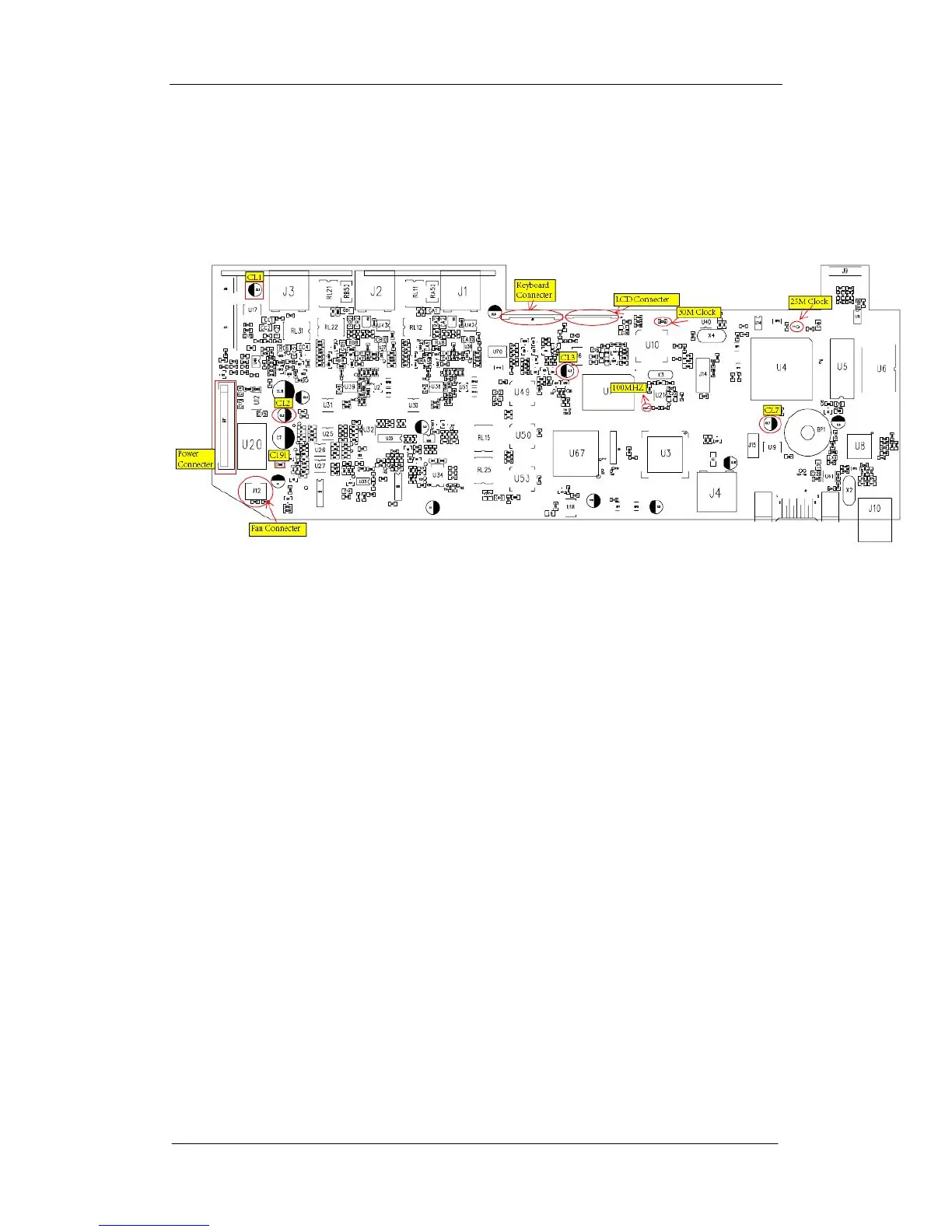

Please refer to the following drawing to quickly locate test points on the main
board for easy resolution of the failures you encounter.
Figure 6-1 Main board module
