Removing the Top Metal Cover

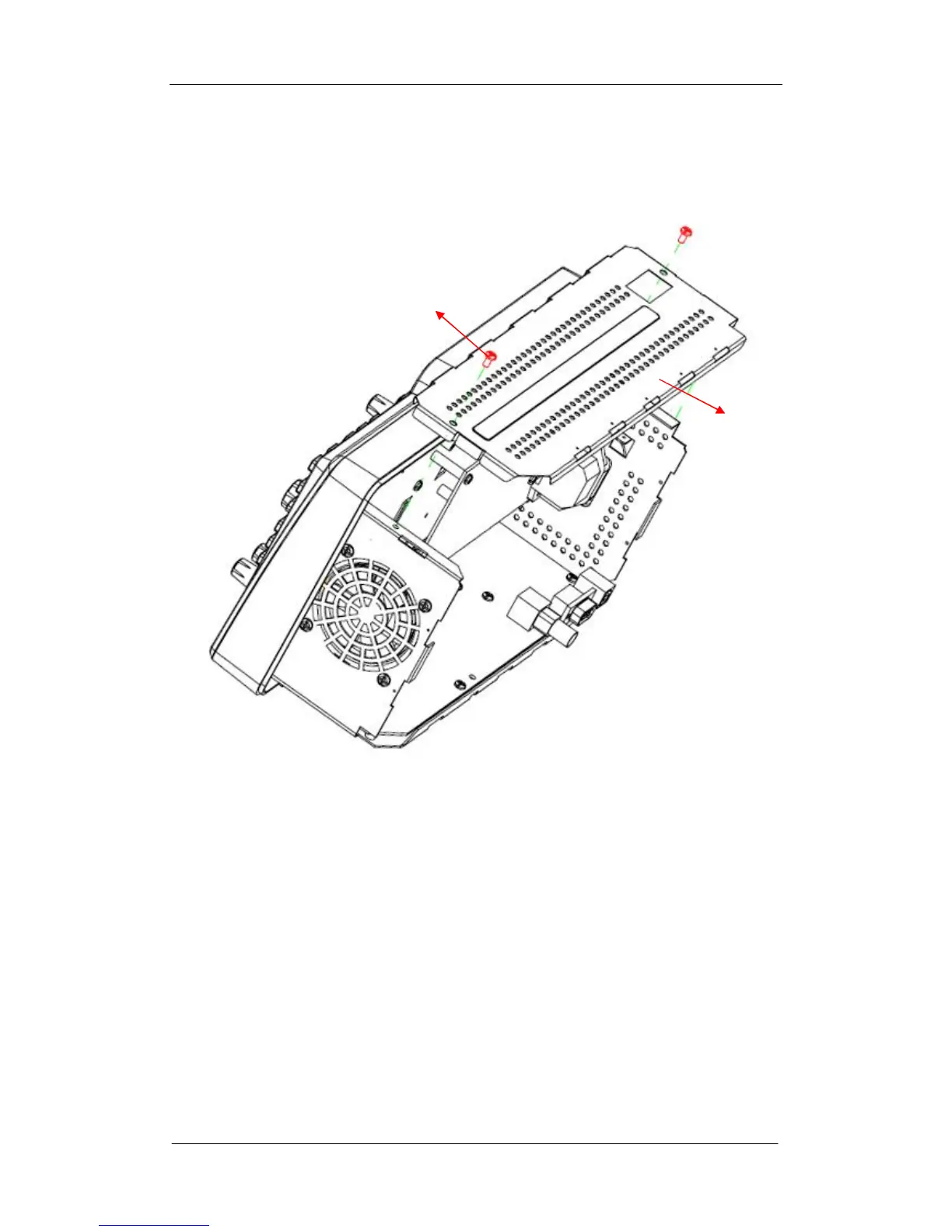

Figure 5-4 Removing the top metal cover
Removing steps:
1. Place the oscilloscope bottom down on a soft surface such as an anti-static
mat.
2. Remove the two screws located on the top metal cover.
3. Since the edge of the top metal cover is sharp, you should lift the top metal
cover up and off carefully to avoid scratching your hand.
To install the top metal cover, please operate as the reverse steps.
Top metal cover
