Removing the Metal Shelf

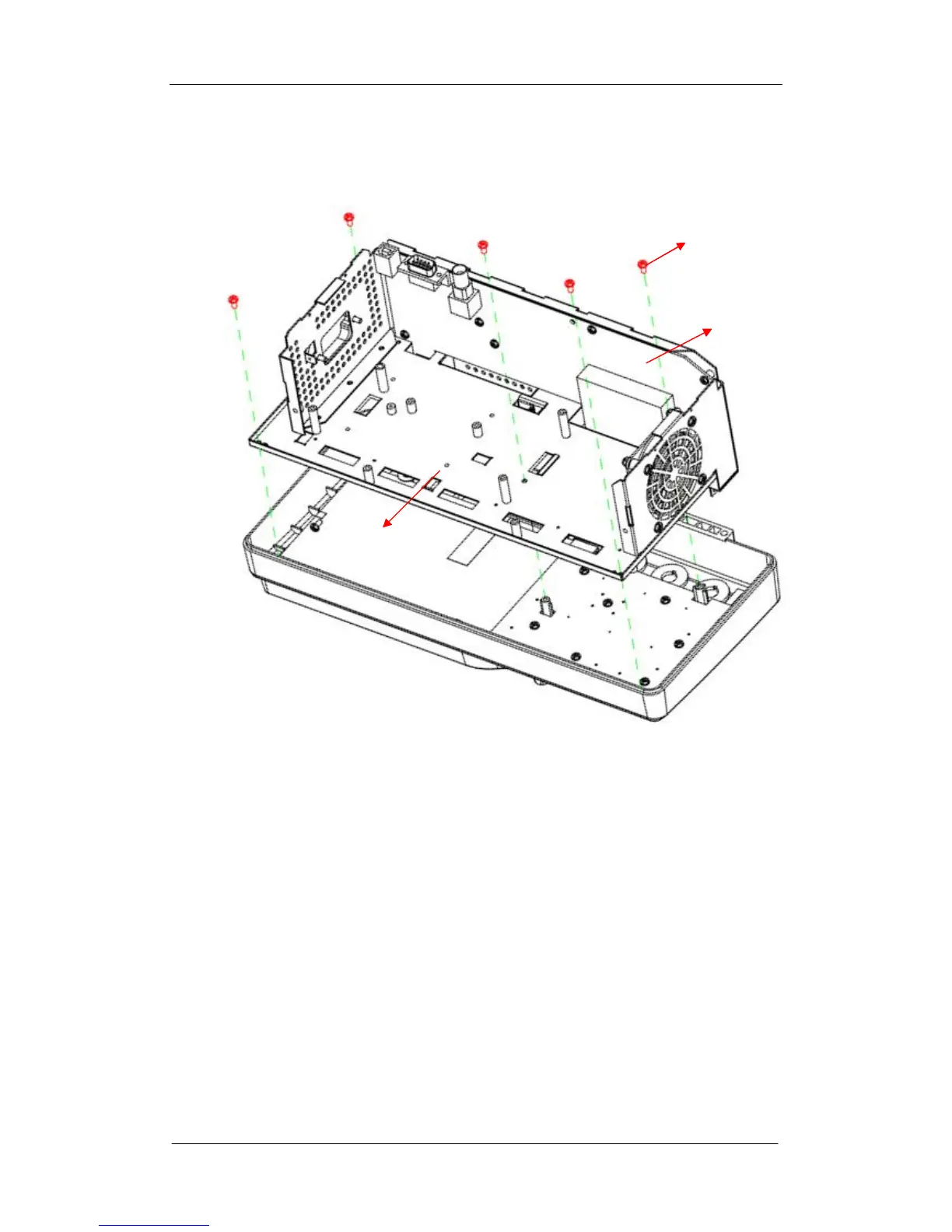

Figure 5-6 Removing the Metal Shelf
Removing steps:
1. Place the oscilloscope face down on a soft surface such as an anti-static
mat.
2. Disconnect the display module cable and keypad module cable connected
to the main board module.
3. Remove the five screws located on the edge of the metal shelf.
4. Separate the metal shelf from the front panel and then lift it up and off
carefully to avoid your hand scratched from the sharp edge of the metal
shelf.
To install the metal shelf, please operate as the reverse steps.
Metal shelf screw
Metal shelf
