SIGLENT
40 SDS1000CML/CNL/DL Service Manual
Removing the Keypad Module

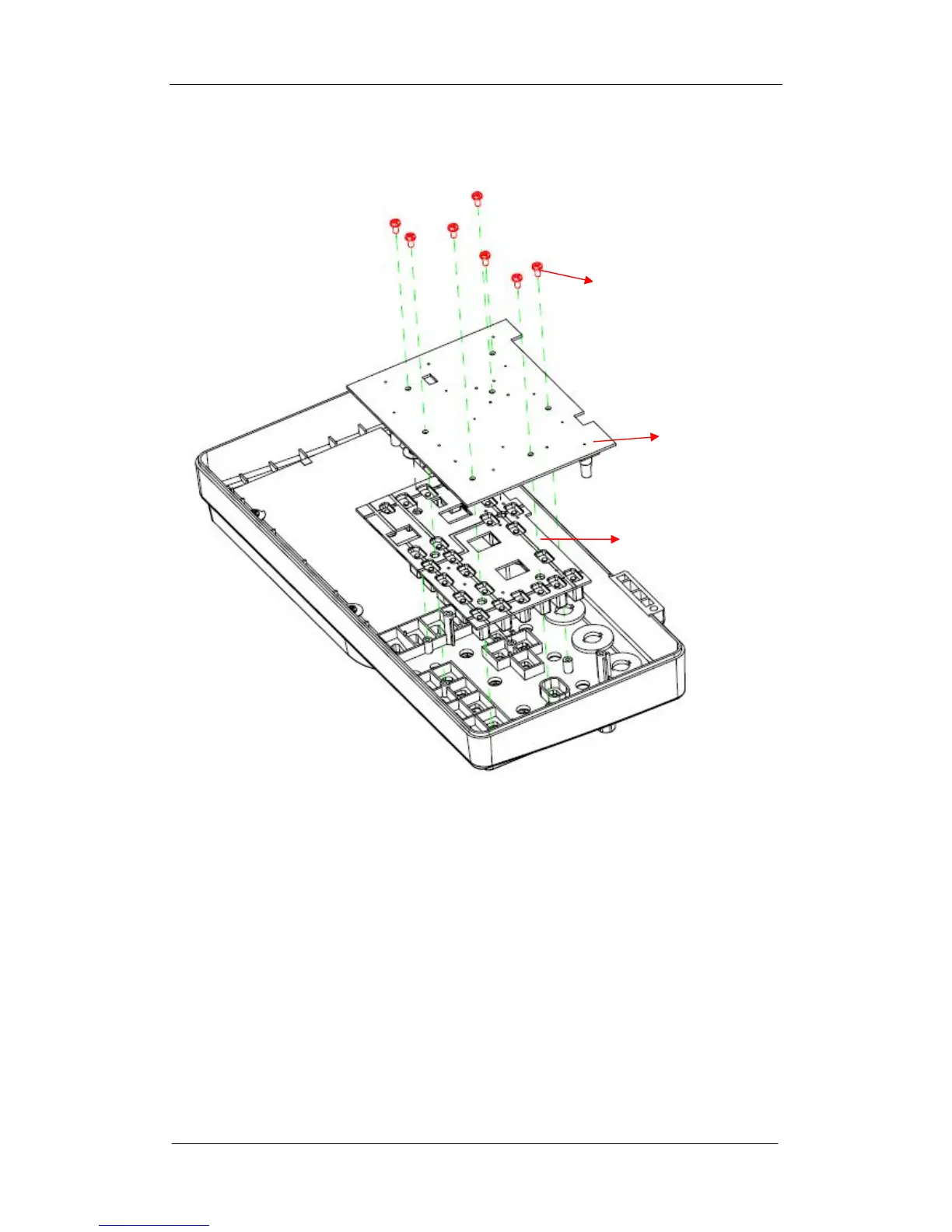

Figure 5-11 Removing the Keypad Module
Removing steps:
1. Place the front panel module on a soft surface as the figure above shows
such as an anti-static mat.
3. Remove the seven screws located on the edge of the printed circuit board.
2. Remove the keypad circuit board from the soft keypad, which is made of
silica gel to avoid touching the electrical contacts.
3. Separate the soft keypad from the front panel and then remove it carefully.
To install the keypad, please operate as the reverse steps.
Keypad circuit board
