In the Zero Span mode, the radio will provide a plot of the power measured in a 20MHz bandwidth
across time. Zero Span can only be conducted on one radio in the network at a time. Other radios
in the network will continue to operate and transmit so a zero span scan should not be conducted
within the same frequency that the mesh network is operating in.
Center Frequency – Specify the center frequency of the scan.
Sampling Rate – Set the sampling rate of the scan. (0.3Msps recommended)
Antenna Mask – Choose which antenna on the radio to use for scanning. If there are 2 antenna
radios in the network antenna 1 or 2 must be chosen.
Duration – Duration of each scan. A longer duration will provide better accuracy but will take
longer to complete.
Approximated time for scan – Approximate time that the network will be down for the scan to
complete.

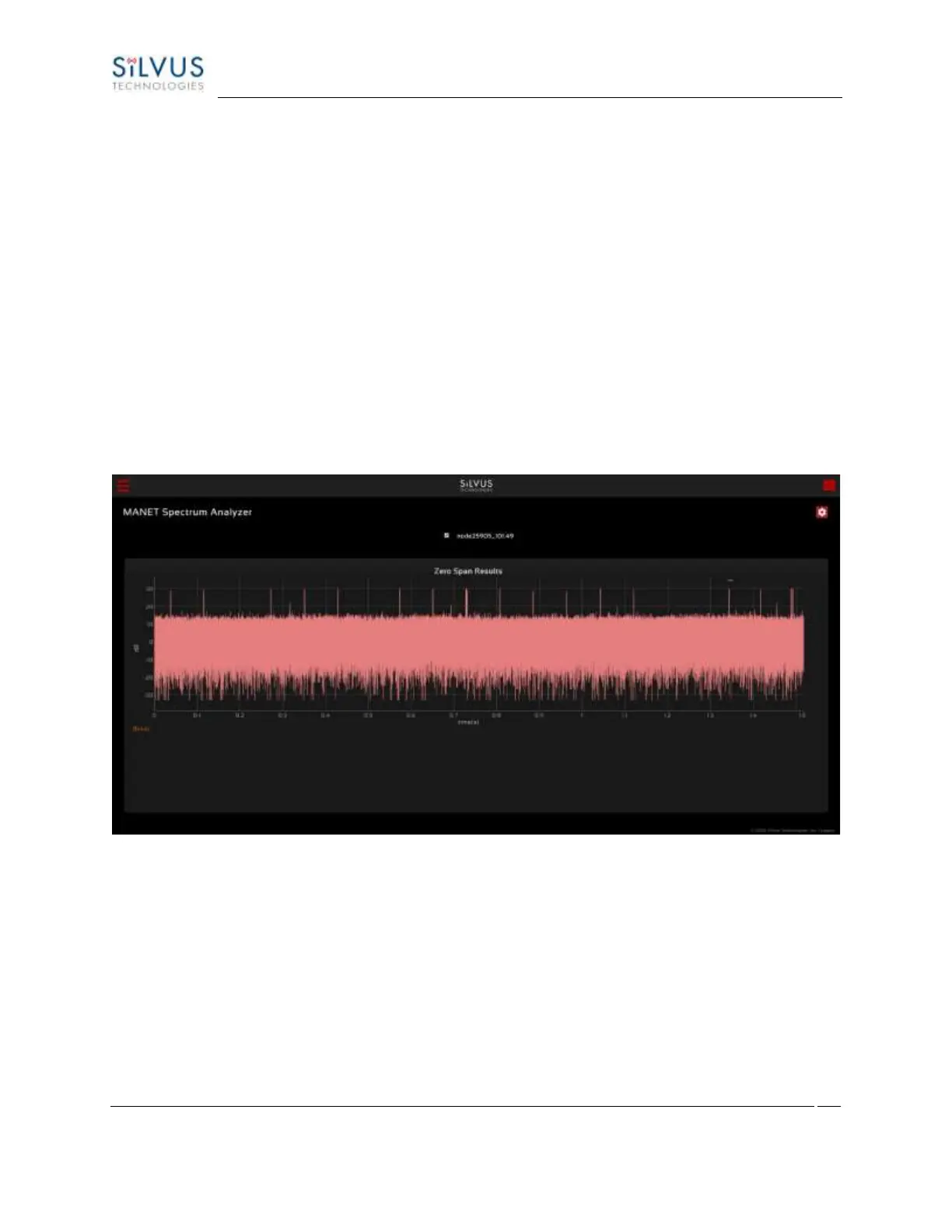

Figure 64 Zero Span Results
