Silvus StreamCaster S4200 - Figure 8 SC4400 E AUX Pinout Diagram (Radio Side); Table 4 SC4400 E USB;GPIO Connector Pinout

StreamCaster 4000 series MIMO Radio User Manual 9/2/20
10017C000 Silvus Technologies Confidential Page
23
SC4400E AUX Connector Pinout
Enclosure AUX
(GK0YCR-P10UC00-000L)
Signal
Color of wires coming from
ODU connector
1
USB GND
Yellow/Blue
2
USB1_D-
Red
3
USB1_VBUS
Green
4
USB0_VBUS
Violet
5
GPIO1 (BDA control)
Pink
6
USB0_D+
Black
7
USB0_D-
Brown
8
GND
Light Green
9
USB1_ID
Gray
10
USB1_D+
Orange

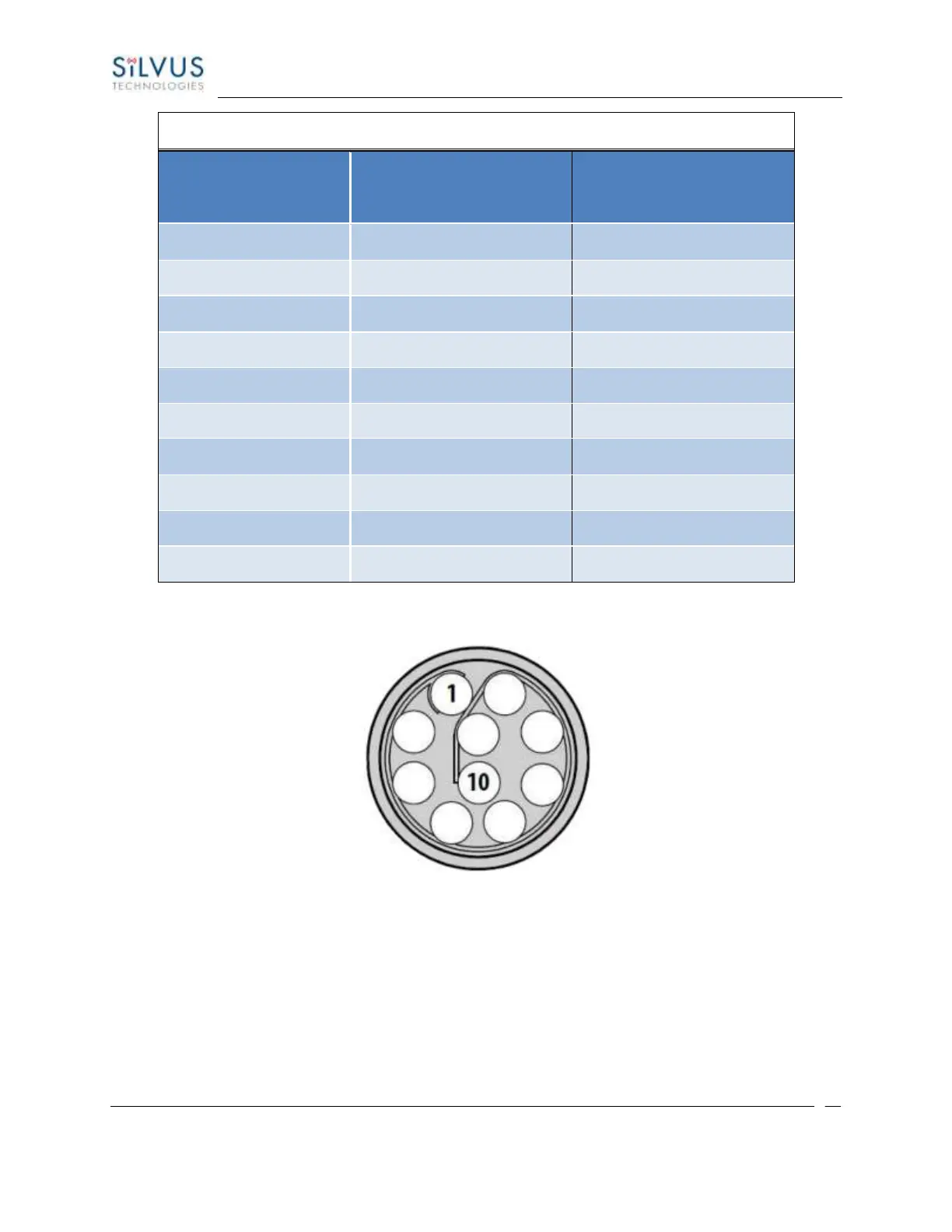

Table 4 SC4400E USB/GPIO Connector Pinout (USB1 is USB 2.0 OTG, USB2 is USB 2.0 Host Mode Only)
Figure 8 SC4400E AUX Pinout Diagram (Radio Side)
