4.2.2 SC4200E Pinouts
SC4200E Primary Power/Ethernet/Serial Connector Pinout
Enclosure PWR/COMM
(GK0YAR-P10UC00-000L)
Signal
Switchcraft Pinout
(EN3C2F16X)
Color of wires
coming from
ODU connector
1
5V OUT (For External GPS Puck)
NC
Pink
2
GND IN
2
Yellow/Blue
3
VCC IN
1
Green/Violet
4
ETH0_MX2N (RX-)
NC
Black
5
ETH0_MX2P (RX+)
NC
Brown
6
ETH0_MX1P (TX+)
NC
Red
7
RS232_RXD
NC
Gray
8
RS232_TXD
NC
White
9
GND
NC
Light Green
10
ETH0_MX1N (TX-)
NC
Orange

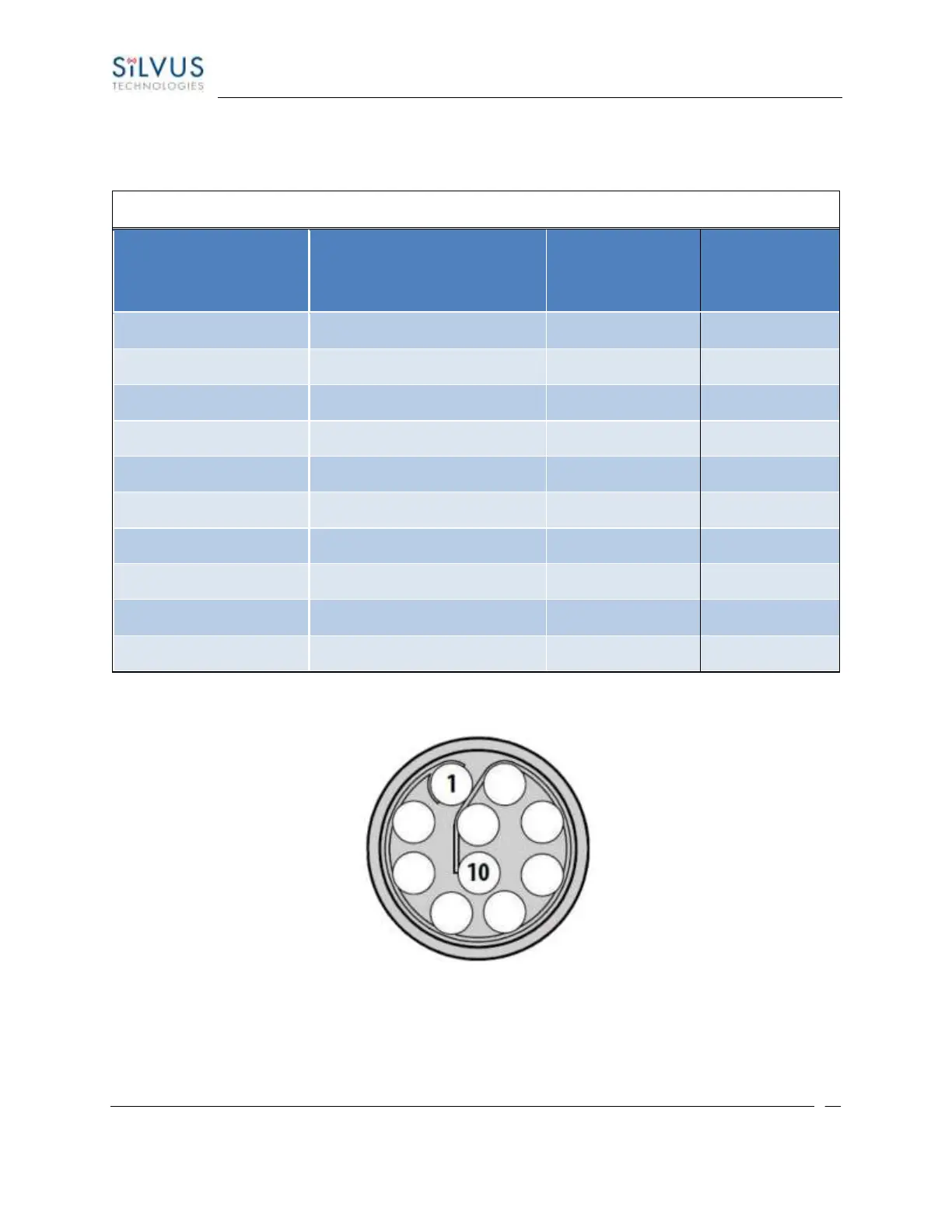

Table 6 SC4200E Primary Power/Ethernet/Serial Connector Pinout
Figure 10 SC4200E Primary Power/Serial/Ethernet Pinout Diagram (Radio Side)
