4.3.4 SC4200 Enclosure Mechanical Drawing

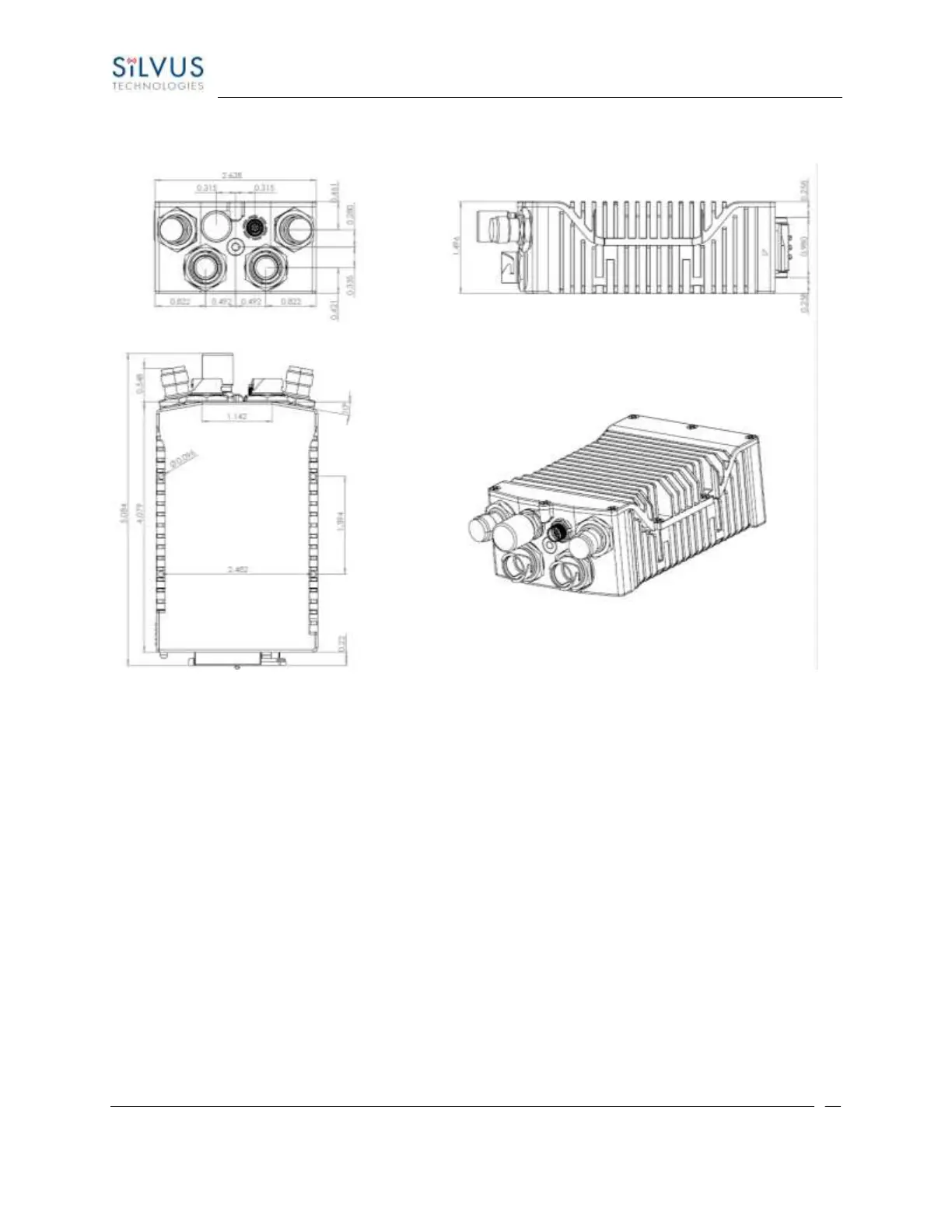

Figure 23 SC4200 Mechanical Drawing (top) and Mounting Pattern (bottom)
*mounting holes utilize https://www.mcmaster.com/96006a234 or equivalent. Hex head (5/64” drive), 2-56
thread, head diameter 9/64”; stainless steel; 3/8” length or longer
