SC4200E PTT Connector
Enclosure PTT Connector
(ODU GKCWAM-P07UB00-000L)
Signal
1
5V_OUT (Up to 400mA)
2
COR/DUAL_PTT
3
AUDIO_GND
4
PTT
5
SPEAKER_OUT
6
MIC_IN
7
RESERVED (Do Not Connect)

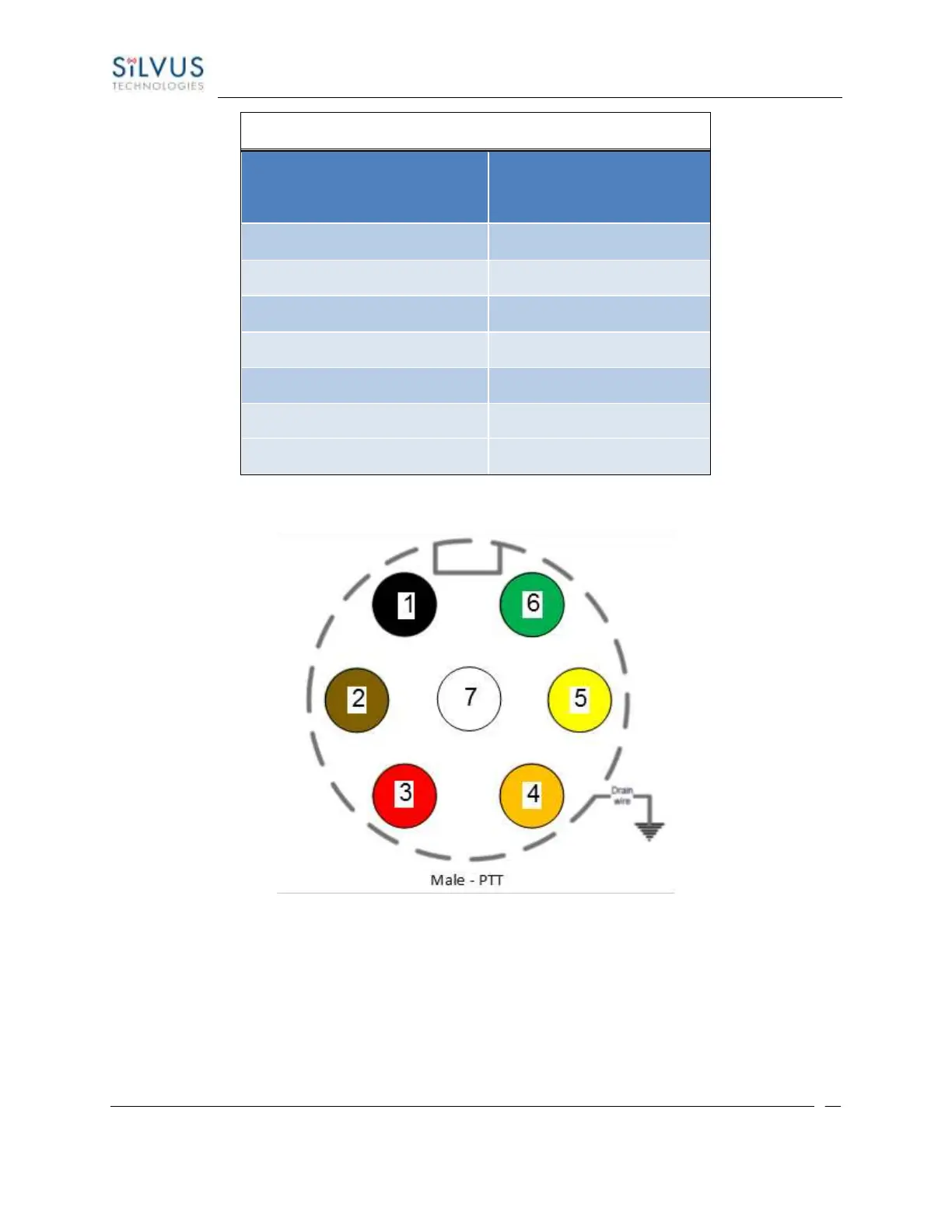

Table 9 SC4200E PTT Connector Pinout
Figure 13 SC4200E PTT Pinout Diagram (Cable Side)
