Silvus StreamCaster S4200 - Sc4200 E; Figure 3 Streamcaster 4200 E Ruggedized Enclosure

StreamCaster 4000 series MIMO Radio User Manual 9/2/20
10017C000 Silvus Technologies Confidential Page
17
SC4200E

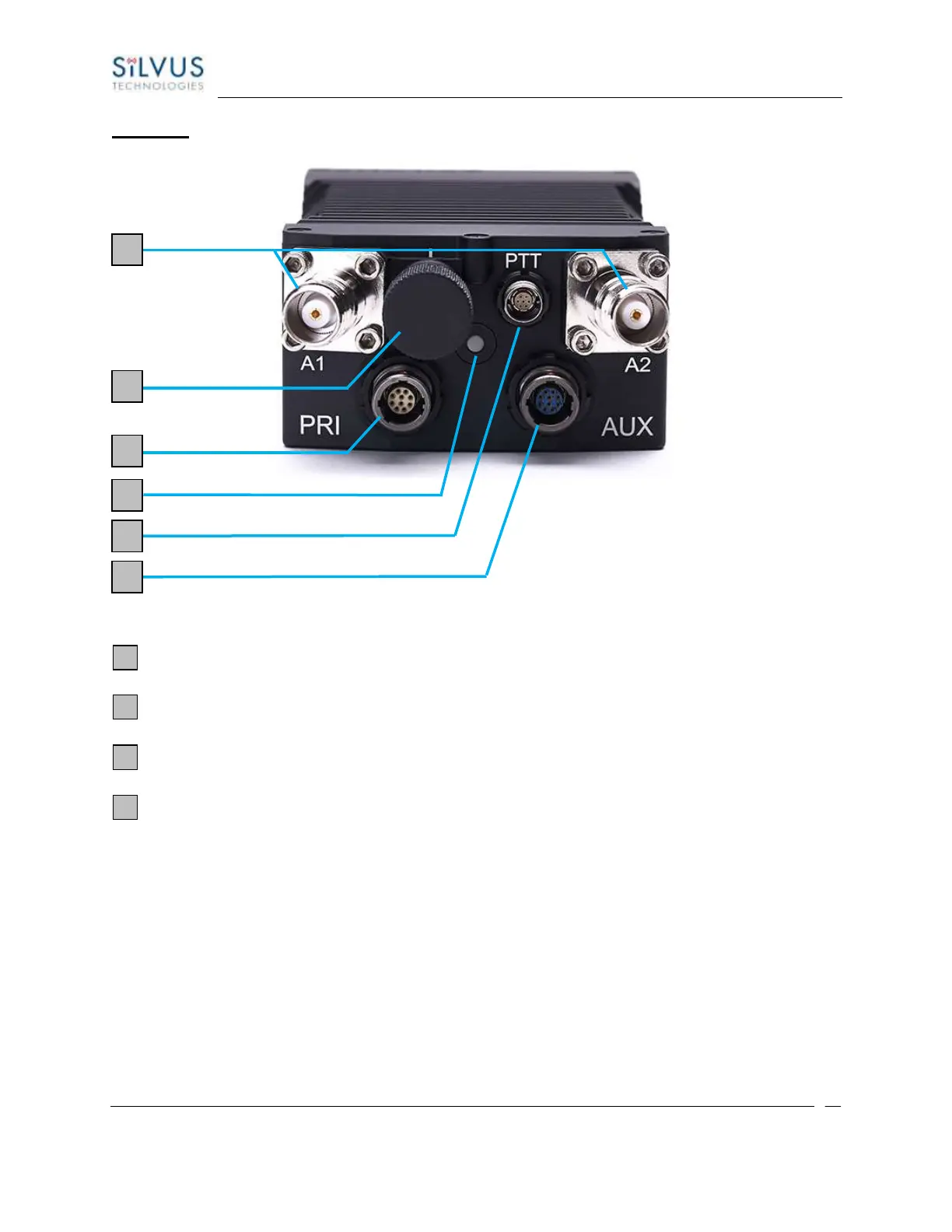

Figure 3 StreamCaster 4200E Ruggedized Enclosure
RF Channels 1-2 Connectors [TNC Female]
Power Switch [15-Position Rotating]
Power (EB Version Only, 9-20V), Ethernet, and Serial Port Connector [ODU GK0YAR-P10UC00-000L]
Bi-Color Status LED
• Red – Radio is in the process of booting up
• Flashing Green – Radio is fully booted but not wirelessly connected to any other radio
• Green – Radio is wirelessly connected to at least one other radio
• Flashing Red – Spectrum Scan in Progress
• Flashing Red – Radio has recovered from a bad state.
• Rapid Flashing Red for 1 second – The battery is less than or equal to 20%. LED will blink
red rapidly for 1 second then go back to normal. This will repeat every 5 seconds.
1
2
3
4
1
2
3
4
5
6
