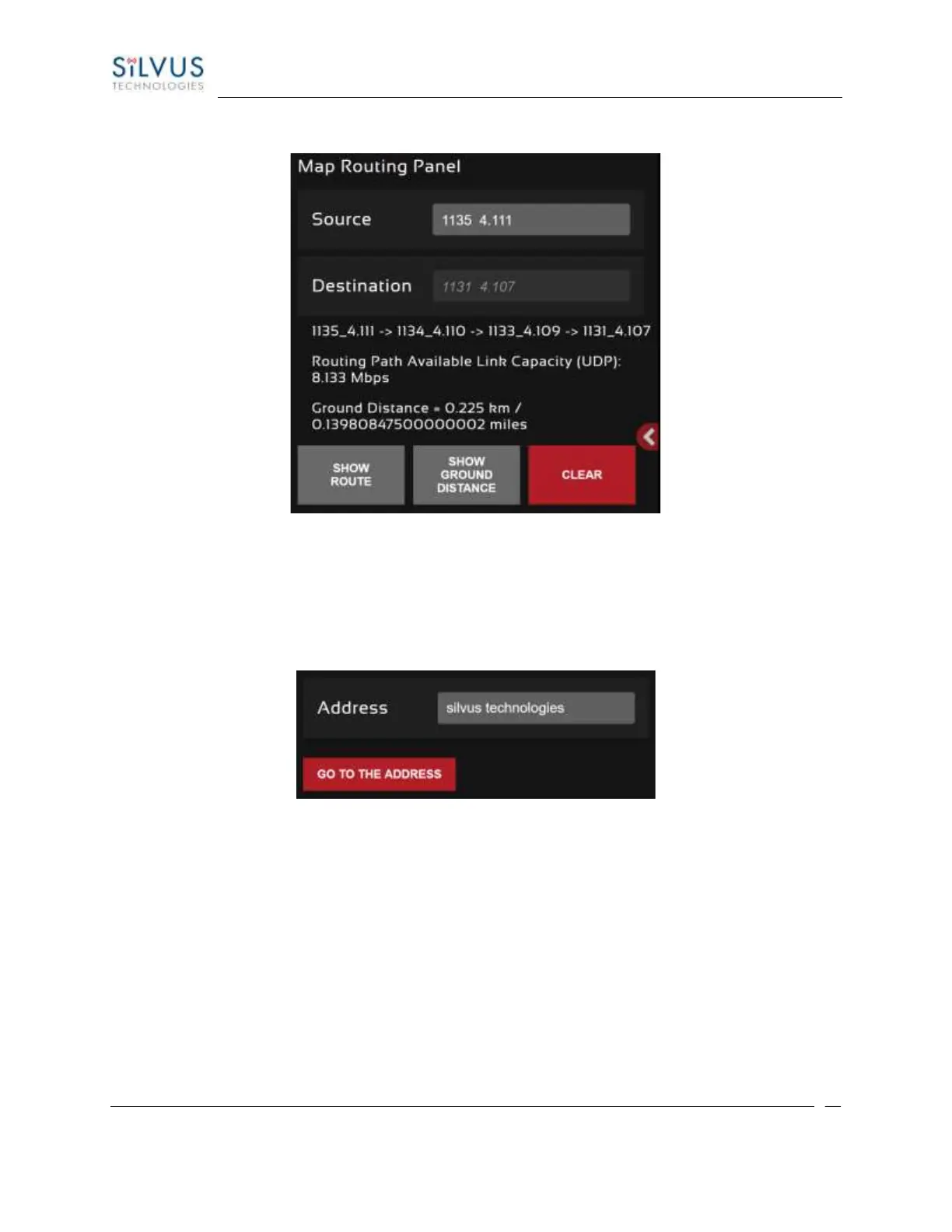

Map Routing Panel:
Figure 53 Map Control Panel (map routing panel)
The Map Routing Panel shows you the route path from one radio to another on the map. It also lists the
link capacity between the two radios, and the ground distance.
Address:
Figure 54 Map Control Panel (address)
The address function can help you zoom the map to a specific address without knowing the lat/long
coordinates. This can be a useful tool, and can also search for locations by just the name of it.
