5.1.4 Serial/USB Setup (not available on IVAS)

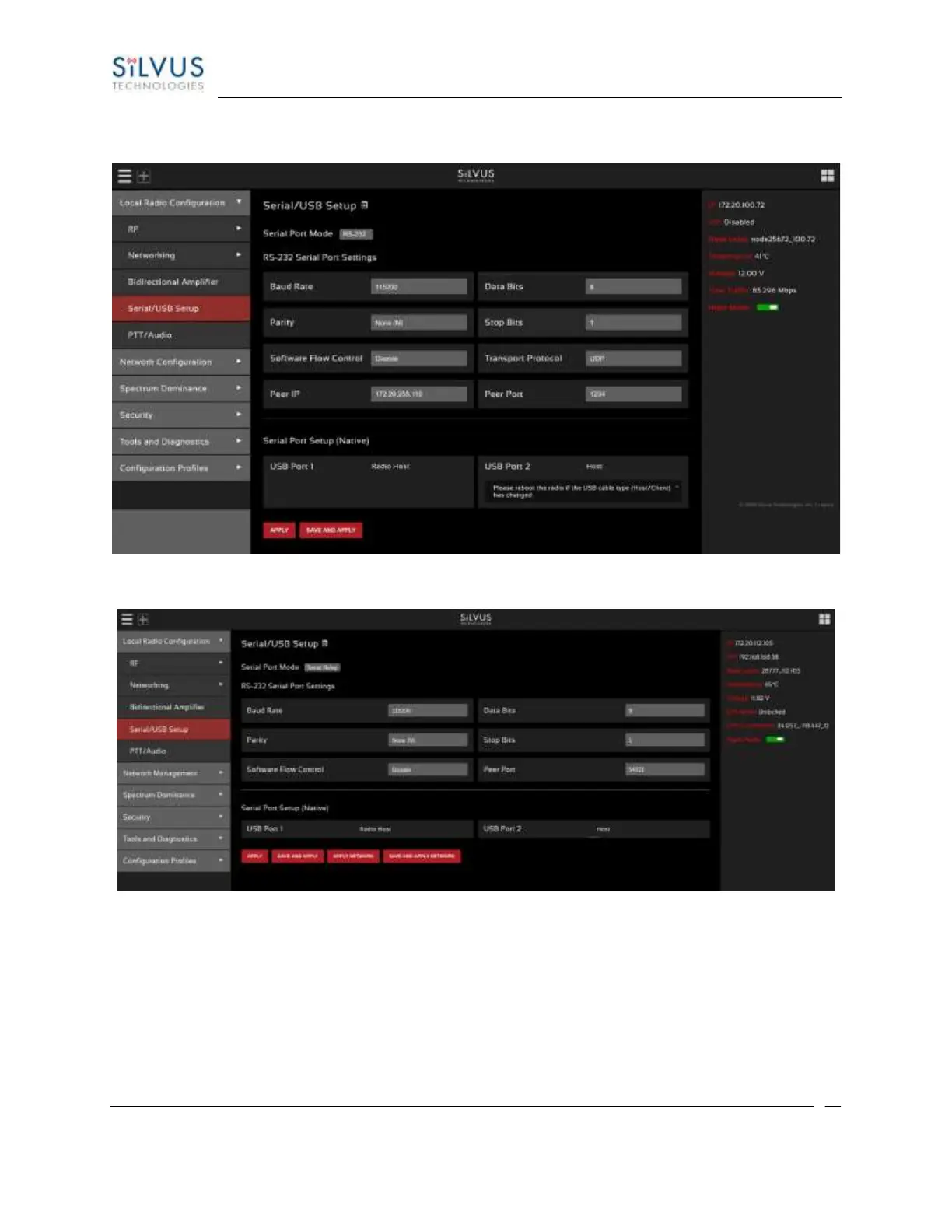

Figure 35 Serial/USB Setup Page – RS-232
Figure 36 Serial/USB Setup Page – Serial Relay
Serial Port Setup:
Each StreamCaster is equipped with one user configurable serial port. A special power cable and null
modem cable are required for access to the radio’s serial port. A brief description of each parameter is
given below.
