Silvus StreamCaster S4200 - SC4200 E Enclosure Mechanical Drawing; Figure 21 SC4200 E Mechanical Drawing (Top) and Mounting Pattern (Bottom)

StreamCaster 4000 series MIMO Radio User Manual 9/2/20
10017C000 Silvus Technologies Confidential Page
43
4.3.2 SC4200E Enclosure Mechanical Drawing

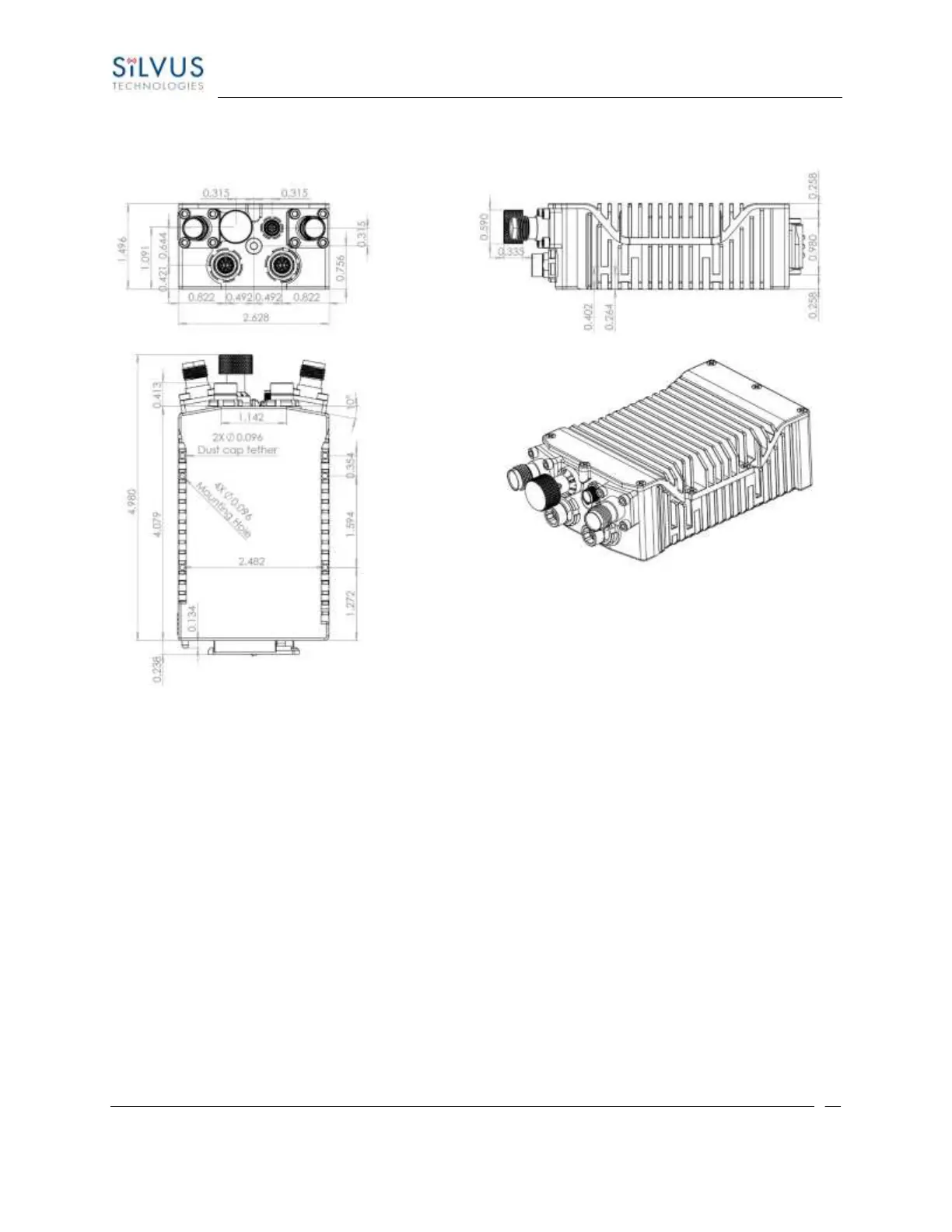

Figure 21 SC4200E Mechanical Drawing (top) and Mounting Pattern (bottom)
*mounting holes utilize https://www.mcmaster.com/96006a234 or equivalent. Hex head (5/64” drive), 2-56
thread, head diameter 9/64”; stainless steel; 3/8” length or longer
