Silvus StreamCaster S4200 - SC4400 E Enclosure Mechanical Drawing; Figure 20 SC4400 E Mechanical Drawing (Top) and Mounting Pattern (Bottom)

StreamCaster 4000 series MIMO Radio User Manual 9/2/20
10017C000 Silvus Technologies Confidential Page
42

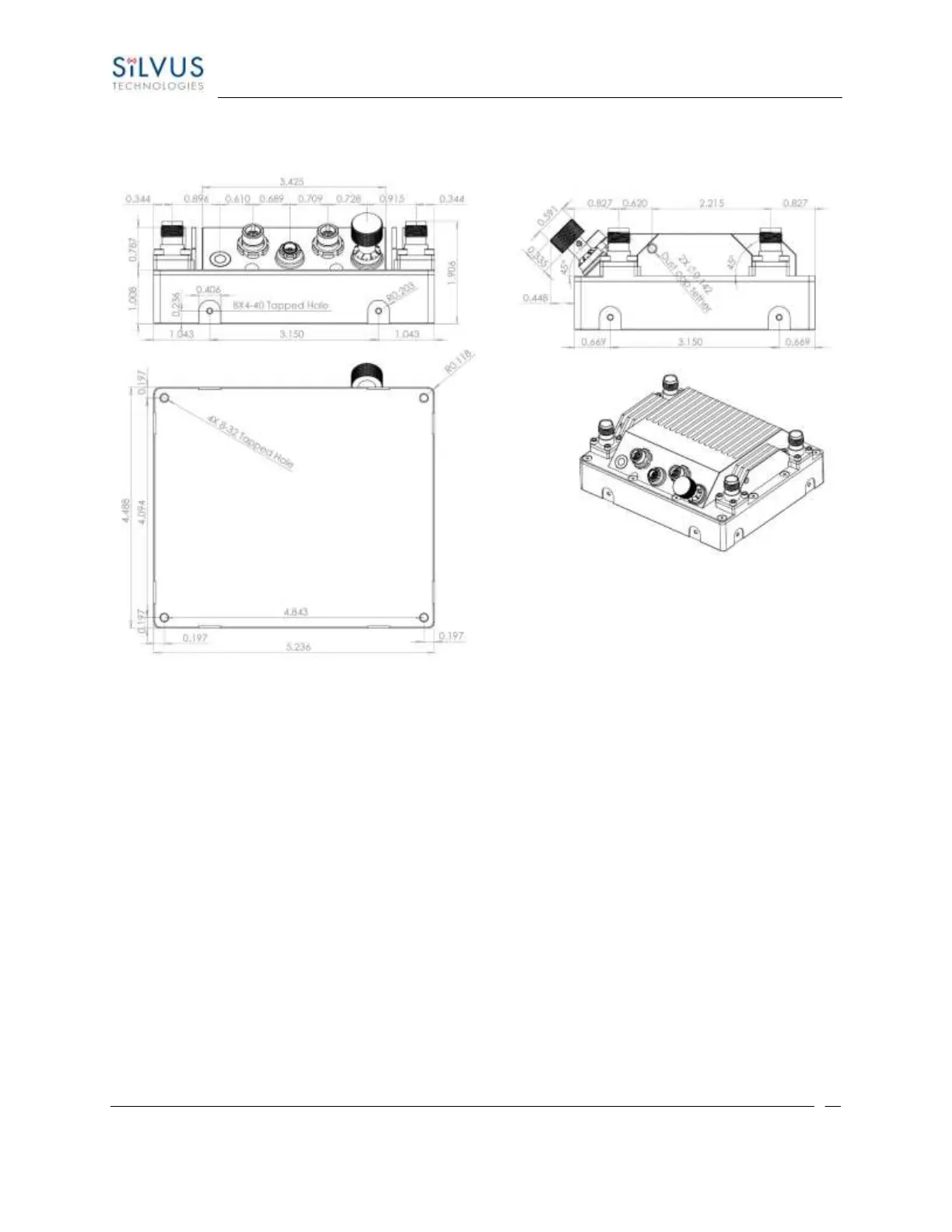

4.3.1 SC4400E Enclosure Mechanical Drawing
Figure 20 SC4400E Mechanical Drawing (top) and Mounting Pattern (bottom)
*Tapped mounting holes are available on bottom (8-32) and on the sides (4-40) of radio as indicated in Figure 20
SC4400E Mechanical Drawing (top) and Mounting Pattern (bottom).
