StreamCaster 4000 series MIMO Radio User Manual 9/2/20
10017C000 Silvus Technologies Confidential Page
94
take some time and will use up the radio’s available memory. For reference, a radius
of ~3000m will use approximately 5 percent of the total memory.
5.2.2.4 Manual GPS for Nodes without GPS Module

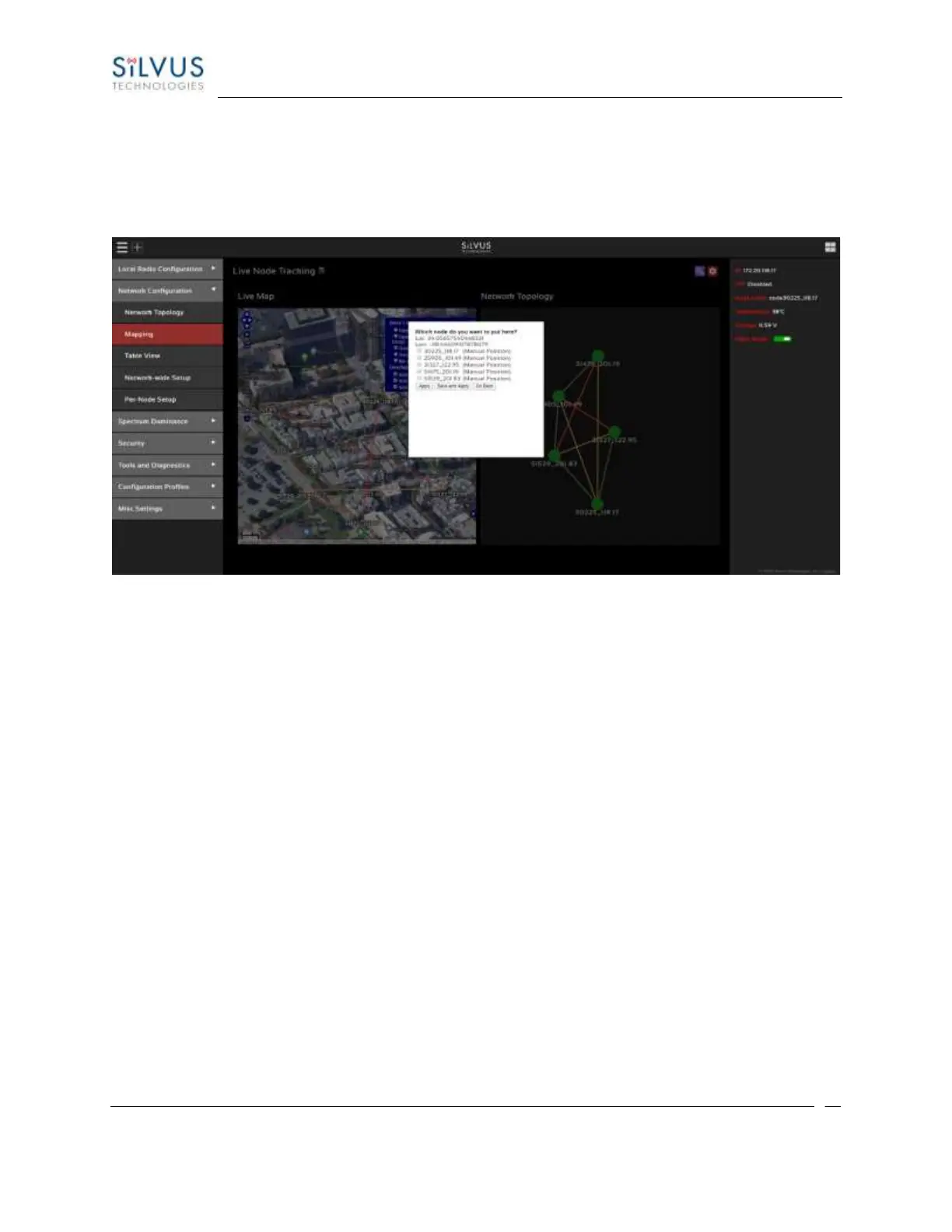

Figure 56 Manually Placing Nodes on the Map
If there are nodes within the mesh that do not have a GPS module connected, or are located in an area
with no GPS connectivity, the user can easily place the node on the map by right clicking on the desired
location on the map and choosing which node to place there. These values will be ignored if GPS
coordinates are available via a GPS module.
