Figure 40 Individual Node Characteristics
• Link Characteristics – By double clicking the mouse on any link in the network, users can view key
operating characteristics of that link. Figure 41 Link Characteristics shows an example of this for
the link between ‘node30225’ and ‘node51539’. The characteristics shown are:
o SNR: The SNR of the link in each direction.
o MCS: The MCS used to transfer data in each direction.
o Variable GI Mode: The variable GI mode used for the transmitting node.
o UDP User Throughput: The estimated UDP User Throughput available for each direction
of the link. This is estimated based on the current MCS used for transmission.
o Queue Size: Number of packets in TX Queue in each direction.
o NSS: Number of Spatial Streams in each direction.
o Air Time: Percentage of air time used in each direction
o Data Rate: Data rate in each direction
o Data Loss Rate: Percentage of data lost during transmission
o Received Signal Powers: Received signal power for each antenna in each direction.

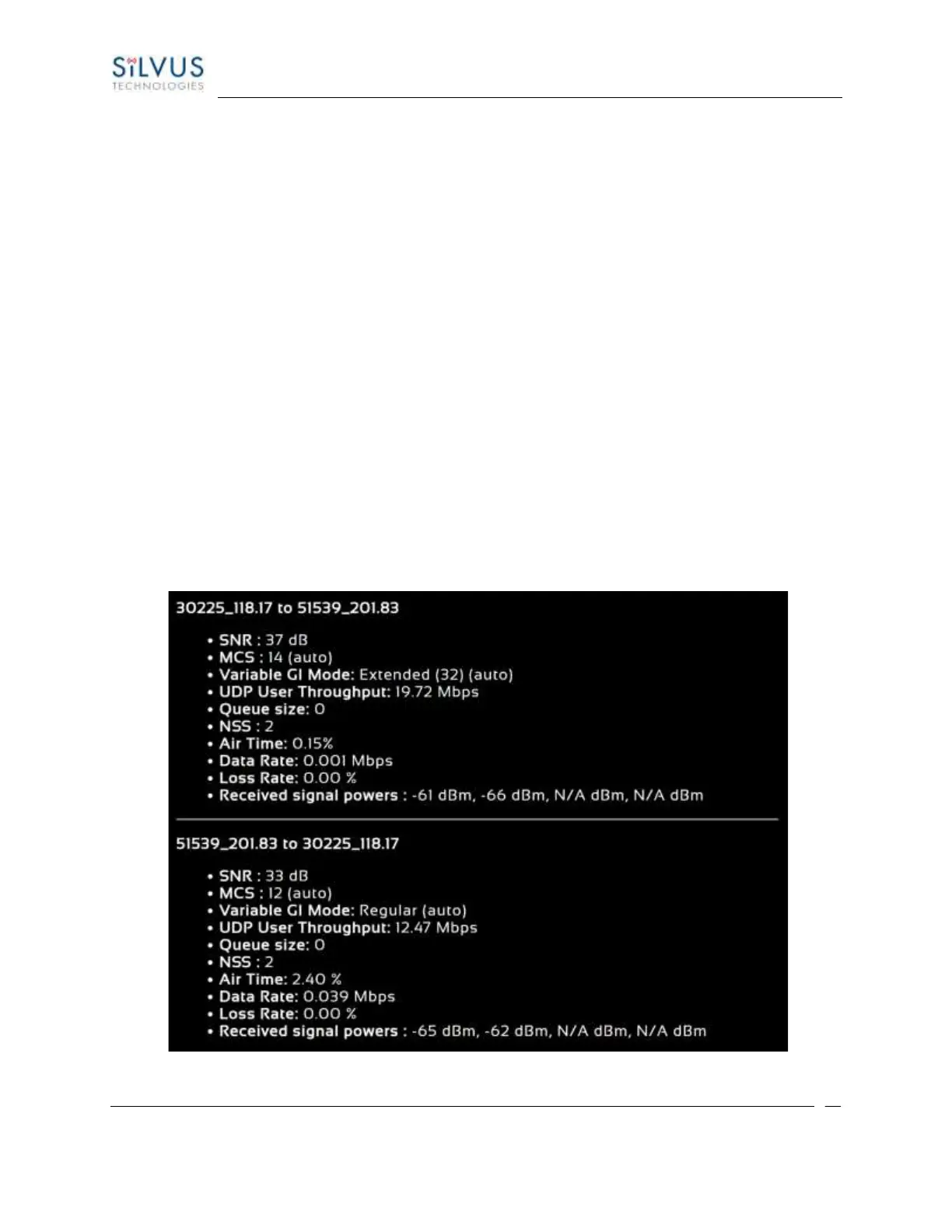

Figure 41 Link Characteristics
