4. StreamCaster Hardware Overview
4.1 Hardware Interfaces
SC4400E

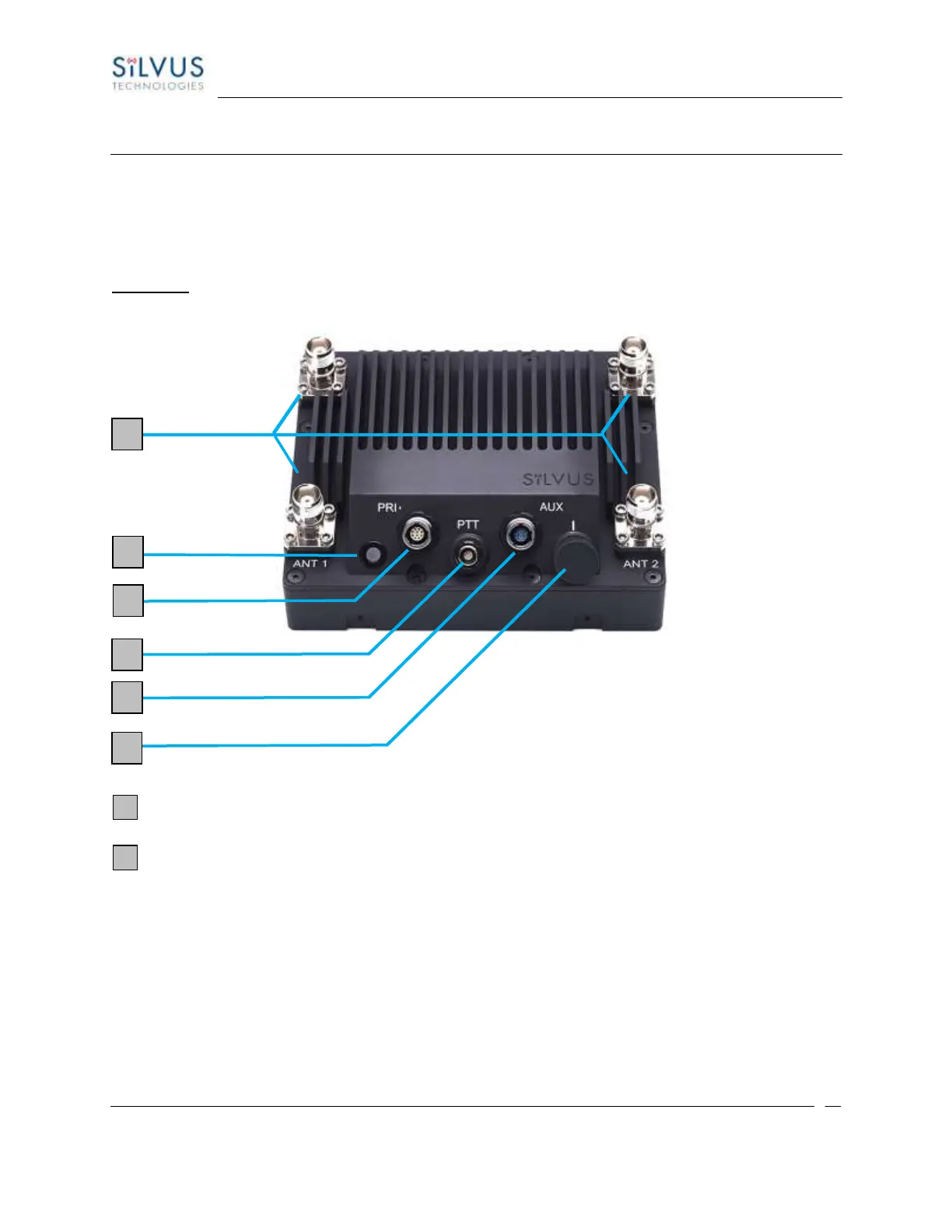

Figure 2 StreamCaster 4400E Ruggedized Enclosure
RF Channels 1-4 Connectors [TNC Female]
Bi-Color Status LED
• Red – Radio is in the process of booting up
• Flashing Green – Radio is fully booted but not wirelessly connected to any other radio
• Green – Radio is wirelessly connected to at least one other radio
• Flashing Red – Spectrum Scan in Progress
• Flashing Red – Radio has recovered from a bad state.
• Rapid Flashing Green – When the multi position switch is rotate to a new position, LED
will rapidly flash green while new settings are being applied. LED will resume normal
indication after settings have been applied.
To Next Page
