SC4400 AUX Connector Pinout
Enclosure AUX
(LF10WBRB-12SD)
Signal
1
USB1_GND
2
USB1_D-
3
USB1_VBUS
4
USB2_VBUS
5
GPIO1 (PA Enable 3.3V)
6
USB2_D+
7
USB2_D-
8
RESERVED (Do Not Connect)
9
GND
10
USB1_Sense
11
USB1_D+
12
USB2_GND
Table 12 SC4400 AUX USB/GPIO Connector Pinout (USB1 is USB 2.0 OTG, USB2 is USB 2.0 Host Mode Only)
3
5
SC4400
USB / GPIO
Serial Ground
11
10
Pink
Orange
Brown
Red
Yellow
Black
White
Green
Blue
Purple
B/W striped
Grey
USB1_GND
USB1_D-
USB1_VBUS
Ext PA Control
USB2_D+
USB2_GND
USB2_D-
Reserved (DNC)
GND
6
8
7
9
4
2
USB1_D+
1
12
USB2_VBUS

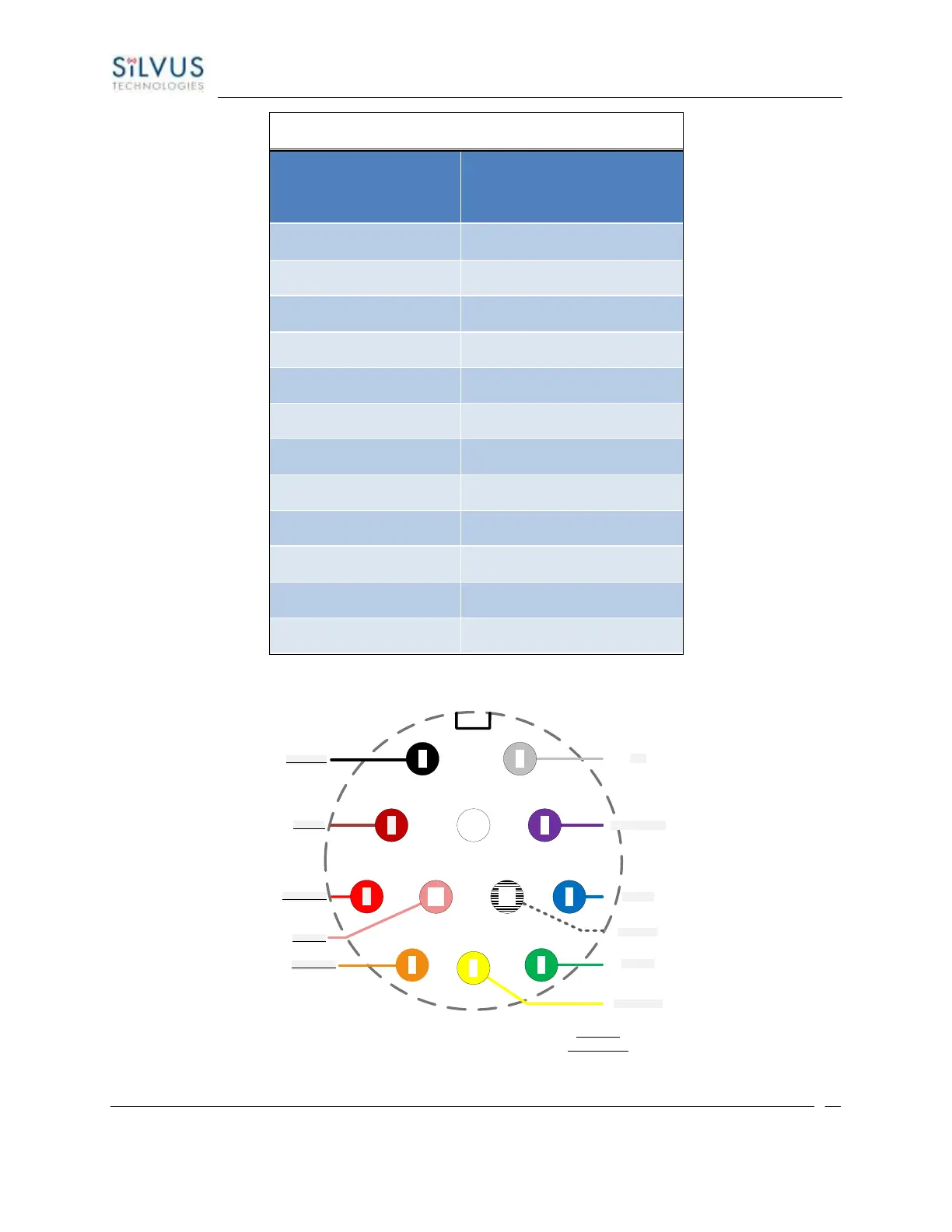

Figure 15 SC4400 AUX Pinout Diagram (Cable Side)
