4.3.3 SC4400 Enclosure Mechanical Drawing

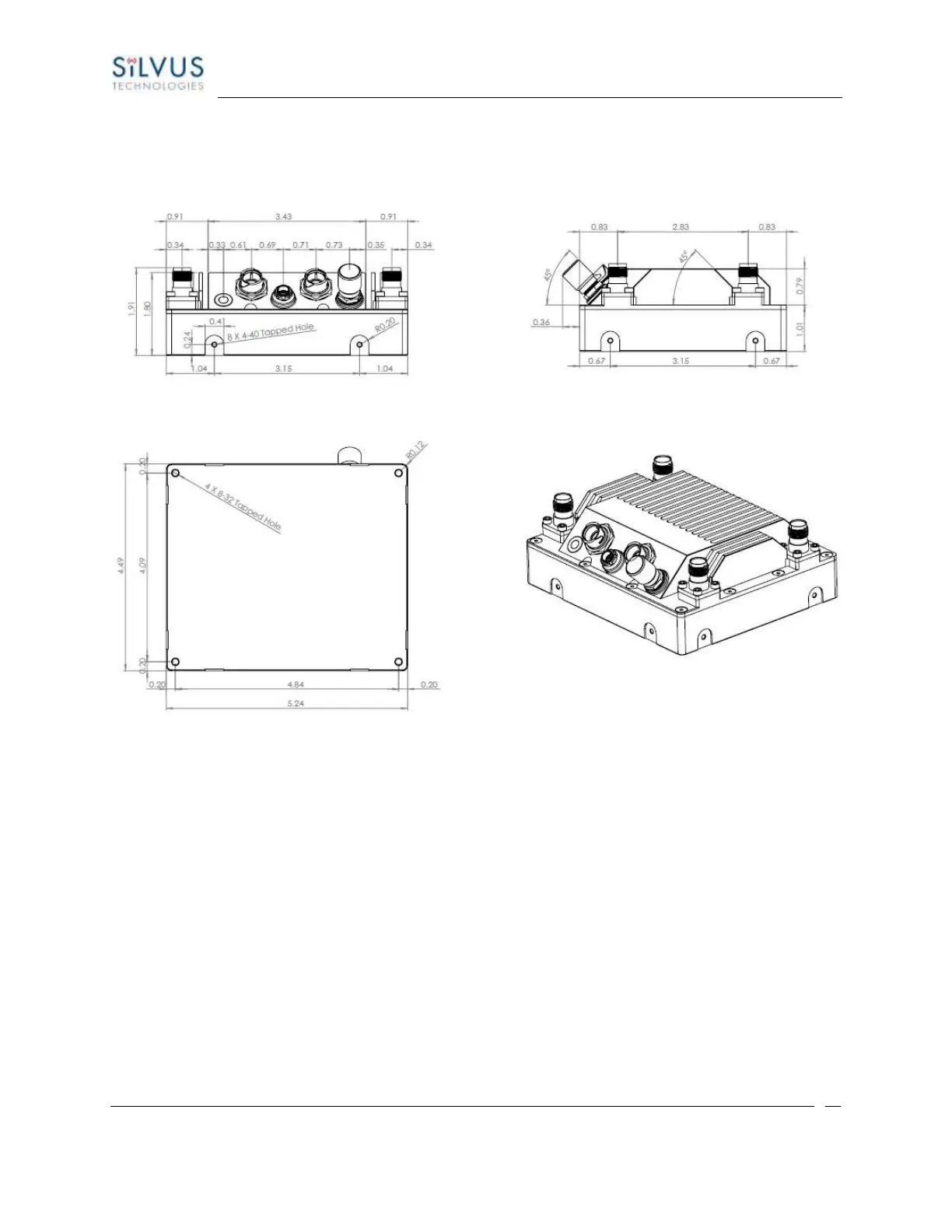

Figure 22 SC4400 Mechanical Drawing (top) and Mounting Pattern (bottom)
*Tapped mounting holes are available on bottom (8-32) and on the sides (4-40) of radio as indicated in Figure 22
SC4400 Mechanical Drawing (top) and Mounting Pattern (bottom).
