Simplex 4010 Applications Manual

2-15

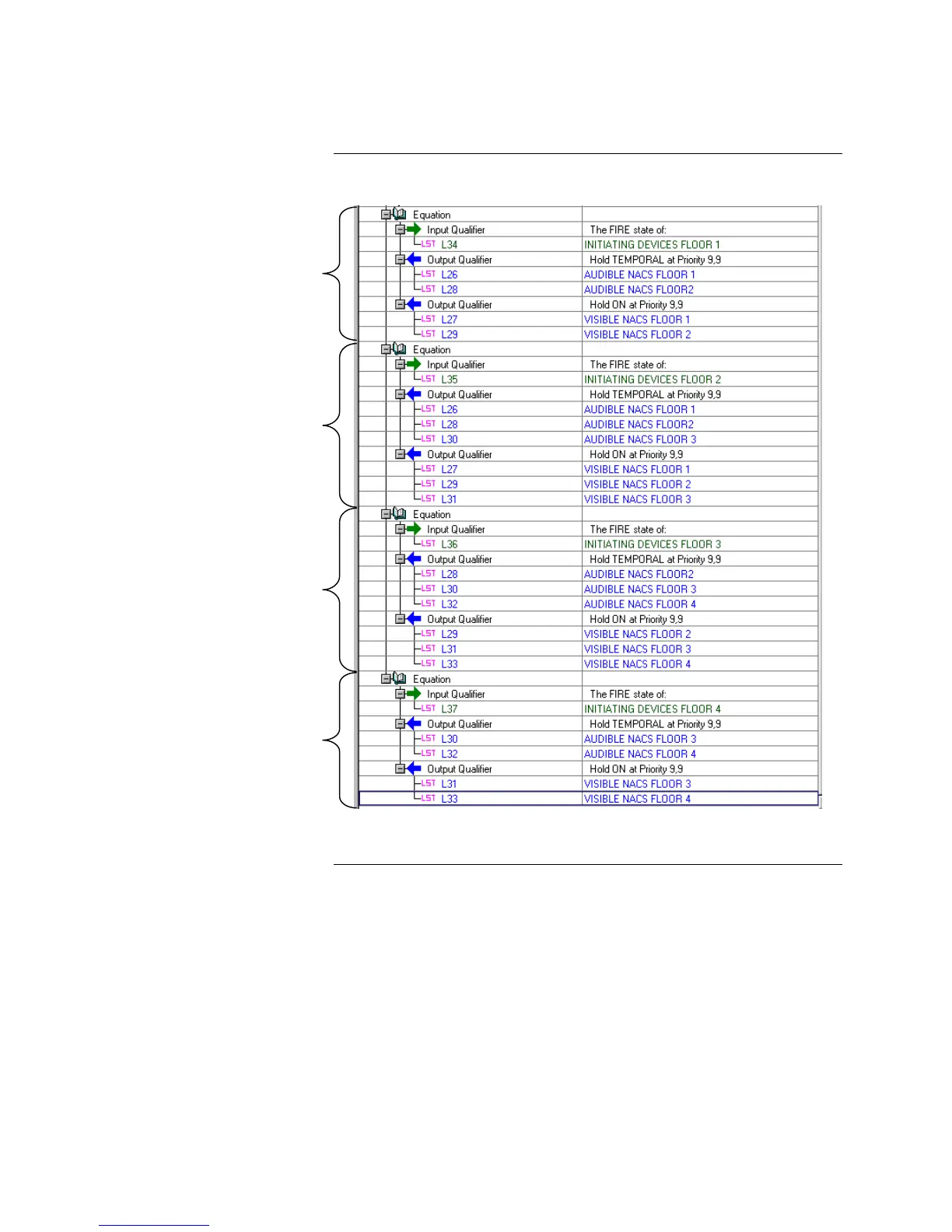

Figure 2-7. Fire Floor, Floor Above, and Below with Standard NACs
Continued on next page
Selective Signaling by Fire Floor, Floor Above, and Floor Below,
Continued
Step 7. Add Custom Control
Equations (continued)
Equation 1
Equation 2
Equation 3
Equation 4
