3-6
1St STAGE ALARM
CONDITION
1ST STAGE ALARM SIGNALS
2ND STAGE ALARM CONDITION or MANUAL RELEASE STATION
2ND STAGE PRE-DISCHARGE SIGNALS
2ND STAGE
DISCHARGE SIGNALS
SOLENOID
ACTIVATION
RELEASE TIMER
ABORT STATION ACTIVE
Automatic
Initiating
Device
Activated
System
Reset
Figure 3-3. Pre-Signal with Abort Switch Timeline
Programming the suppression component of either default application is done
with a combination of Custom Control and the system’s built-in suppression
release options, suppression point types, and suppression lists.

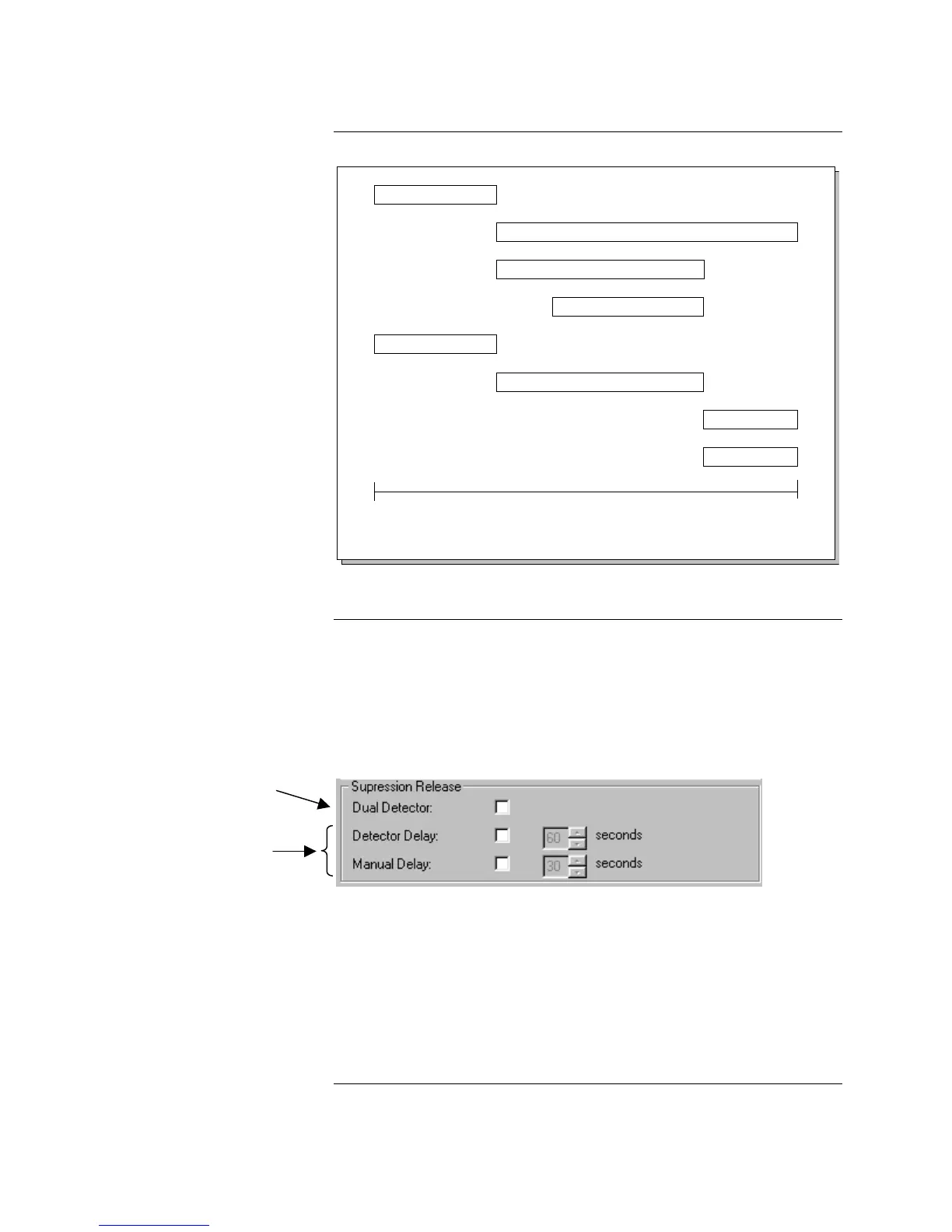

1. Set the Suppression Release System Options, as shown below. These
options are available by first selecting the PC Programmer Card Tab and
then selecting the System Options Radio button.
2. Use the PC Programmer’s Point Tab to assign suppression points with the
point types listed below. Refer to Appendix A for specific details on these
point types.
• SUPABRT. Use for suppression release abort points.
• SUPDUMP. Use for manual suppression release points.
• SUPREL. Use for suppression (agent discharge) release output points.
• SUPDET. Use for automatic initiating devices
Continued on next page
Dual Detector, Pre-Signal, and Abort Switch with No Delay, Continued
Introduction (continued)
Programming System
Options, Point Types, and
Lists
Select only if two detectors
must activate prior to agent
discharge
Check and enter number of
seconds to delay, if necessary
