Simplex 4010ES IDNAC User Manual

page 50 579-1150 Rev M
4010ES IDNAC Fire Alarm System Installation Guide

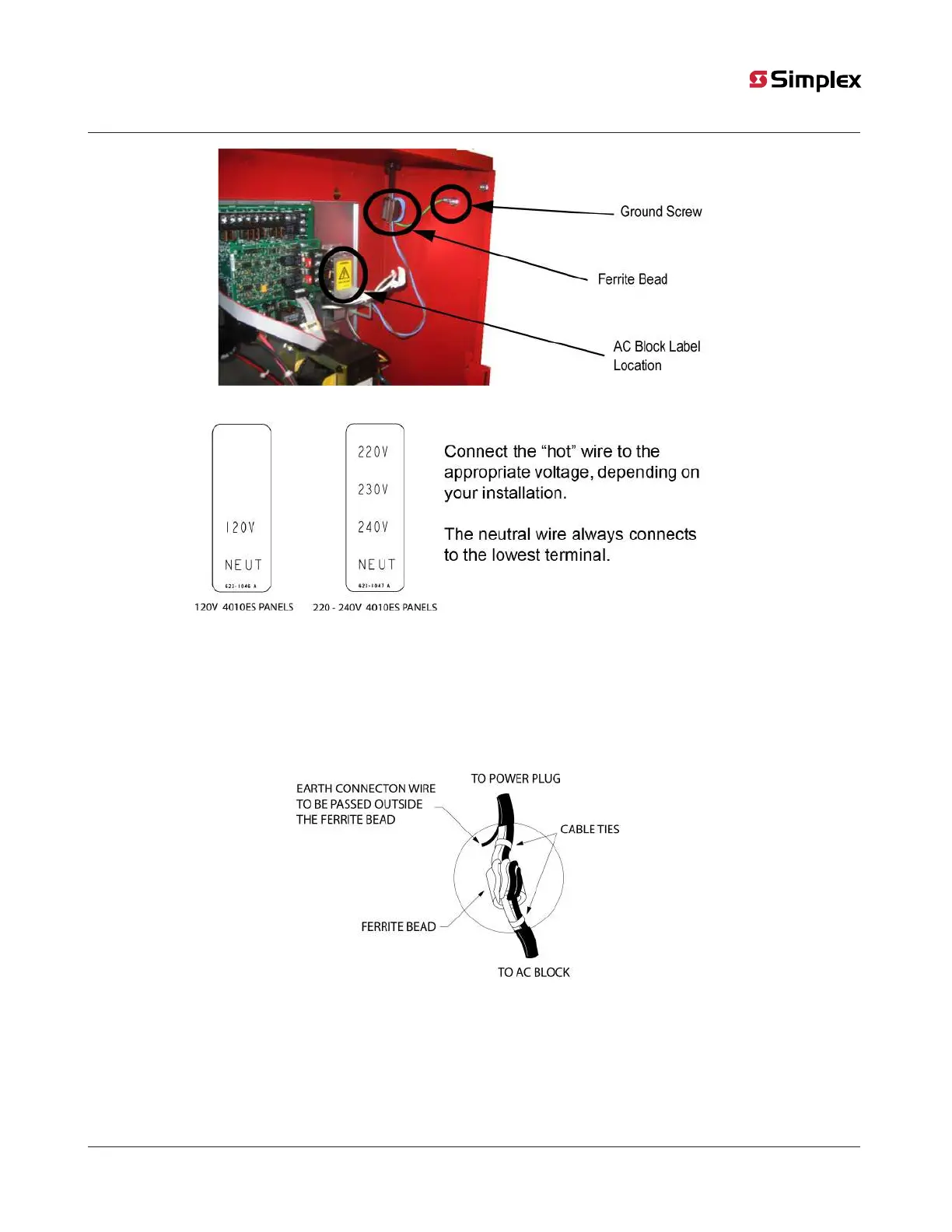

Figure 38: Grounding wire
Figure 39: AC block labels for AC power connections
Note:
In 220-240V panels, the 4010ES requires a true transformer output of 220-240V. Do not connect two out of phase “hot” wires to create
the desired voltage.
When connecting the AC power wire to the AC block, it needs to pass through a ferrite bead to reduce radiated emissions. Route the black
and white AC power wires to the supplied ferrite bead. Loop the wires twice through the bead and secure with two cable ties as shown in
Figure 40. The cable ties are supplied in the ship group that comes with the panel.
Figure 40: AC Power line ferrite bead

Simplex 4010ES IDNAC Specifications

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
