The DC printer prints alarms in red ink; troubles and supervisory conditions in black ink. A DC printer printline is 40
characters long. A typical DC printer printout is shown in Figure 10.

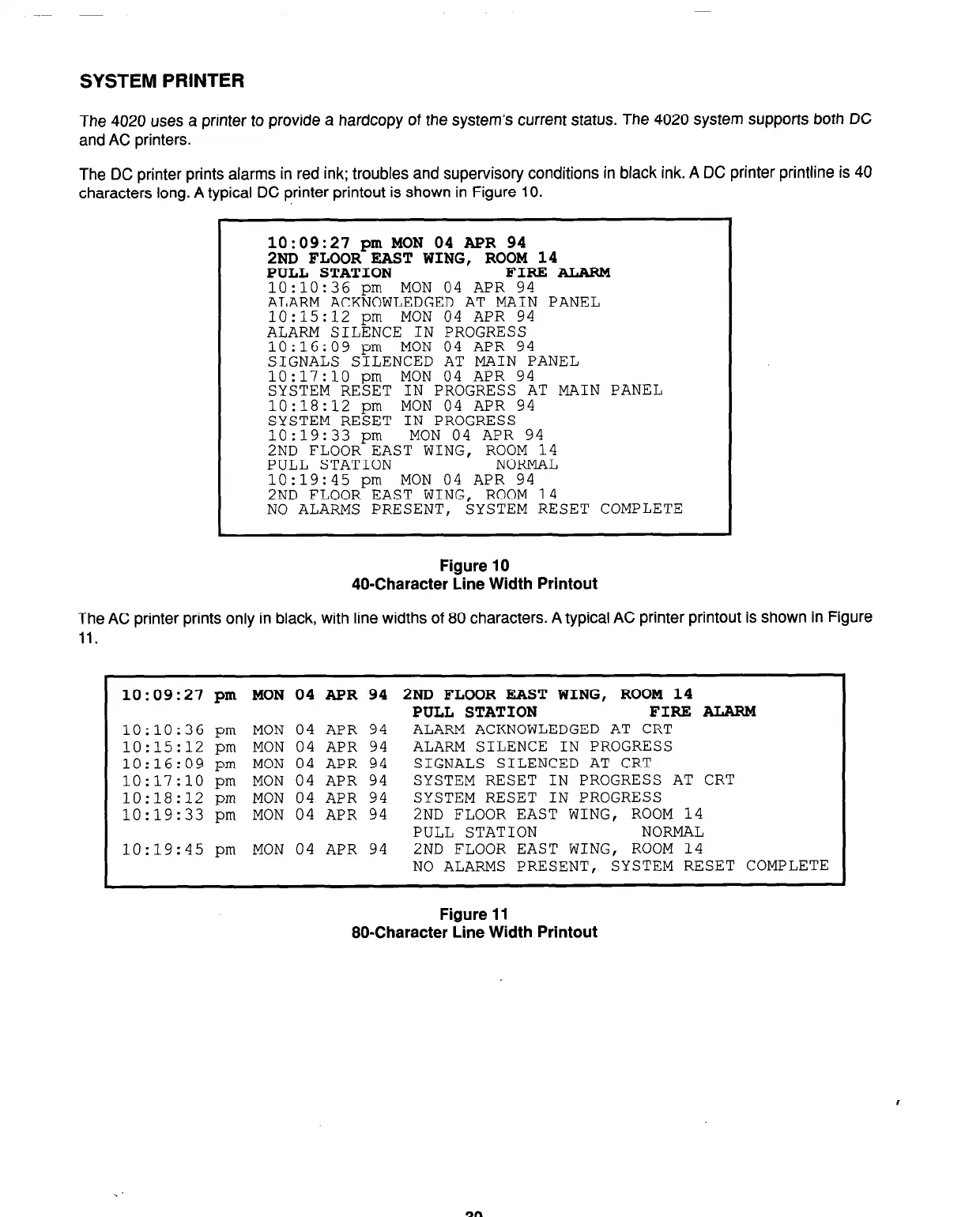

SYSTEM PRINTER
The 4020 uses a printer to provide a hardcopy of the system’s current status. The 4020 system supports both DC
and AC printers.
Figure 10
40-Character Line Width Printout
The AC printer prints only in black, with line widths of 80 characters. A typical AC printer printout is shown in Figure
11.
10:09:27 pm MON 04 APR 94
2ND FLOOR FAST WING, ROOM 14
PULL STATION
FIRE ALARM
10:10:36 pm MON 04 APR 94
ALARM ACKNOWLEDGED AT MAIN PANEL
10:15:12 pm MON 04 APR 94
ALARM SILENCE IN PROGRESS
10:16:09 pm MON 04 APR 94
SIGNALS SILENCED AT MAIN PANEL
10:17:10 pm MON 04 APR 94
SYSTEM RESET IN PROGRESS AT MAIN PANEL
10:18:12 pm MON 04 APR 94
SYSTEM RESET IN PROGRESS
10:19:33
pm
MON 04 APR 94
2ND FLOOR EAST WING, ROOM 14
PULL STATION
NORMAL
10:19:45 pm MON 04 APR 94
2ND FLOOR EAST WING, ROOM 14
NO ALARMS PRESENT,
SYSTEM RESET COMPLETE
10:09:27 pm
10:10:36 pm
MON 04 APR 94
10:15:12 pm
MON 04 APR 94
10:16:09 pm
MON 04 APR 94
10:17:10 pm MON 04 APR 94
10:18:12 pm MON 04 APR 94
10:19:33 pm
MON 04 APR 94
10:19:45 pm
MON 04 APR 94
MON 04 APR 94
2ND FLOOR EAST WING, ROOM 14
PULL STATION
FIRE ALARM
ALARM ACKNOWLEDGED AT CRT
ALARM SILENCE IN PROGRESS
SIGNALS SILENCED AT CRT
SYSTEM RESET IN PROGRESS AT CRT
SYSTEM RESET IN PROGRESS
2ND FLOOR EAST WING, ROOM 14
PULL STATION
NORMAL
2ND FLOOR EAST WING, ROOM 14
NO ALARMS PRESENT,
SYSTEM RESET COMPLETE
Figure 11
BO-Character Line Width Printout
