SECTION 8
ADVANCED FUNCTIONS
INTRODUCTION
When more involved operator functionality/control is required, simply open the interface panel “Access Door” to

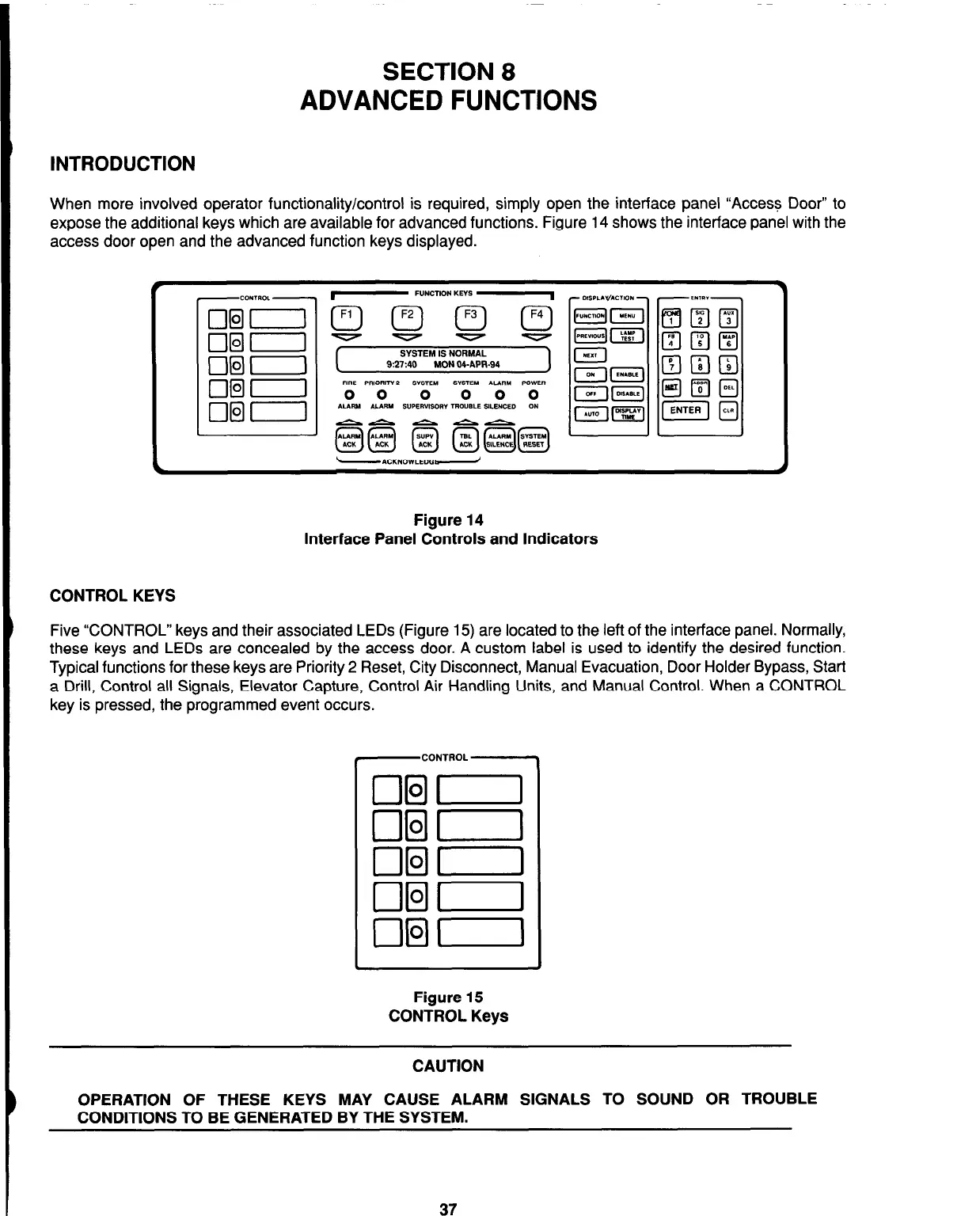

expose the additional keys which are available for advanced functions. Figure 14 shows the interface panel with the
access door open and the advanced function keys displayed.
\,r;7 v v
SYSTEM IS NORMAL
9:2?:4O MON 04-APR.94
I
Figure 14
Interface Panel Controls and Indicators
CONTROL KEYS
Five “CONTROL” keys and their associated LEDs (Figure 15) are located to the left of the interface panel. Normally,
these keys and LEDs are concealed by the access door. A custom label is used to identify the desired function.
Typical functions for these keys are Priority 2 Reset, City Disconnect, Manual Evacuation, Door Holder Bypass, Start
a Drill, Control all Signals, Elevator Capture, Control Air Handling Units, and Manual Control. When a CONTROL
key is pressed, the programmed event occurs.
-CONTROL
ml0
q r
CIEID
cm0
ClElr
Figure 15
CONTROL Keys
CAUTION
OPERATION OF THESE KEYS MAY CAUSE ALARM SIGNALS TO SOUND OR TROUBLE
CONDITIONS TO BE GENERATED BY THE SYSTEM.
37
