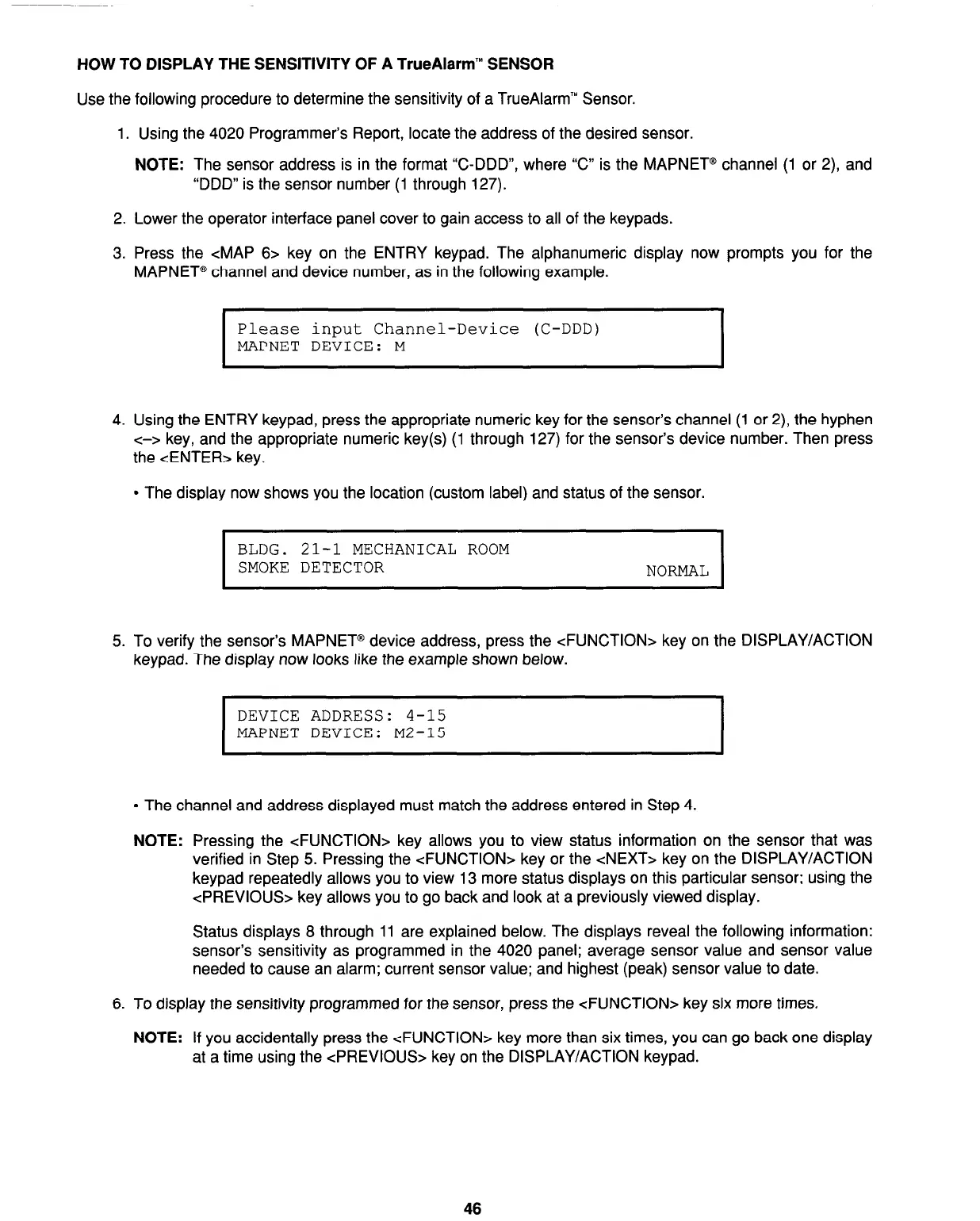

HOW TO DISPLAY THE SENSITIVITY OF A TrueAlarm” SENSOR

Use the following procedure to determine the sensitivity of a TrueAlarm” Sensor.

1. Using the 4020 Programmer’s Report, locate the address of the desired sensor.

NOTE: The sensor address is in the format “C-DDD”, where “C” is the MAPNET@ channel (1 or 2), and

“DDD” is the sensor number (1 through 127).

2. Lower the operator interface panel cover to gain access to all of the keypads.

3. Press the <MAP 6> key on the ENTRY keypad. The alphanumeric display now prompts you for the

MAPNET@ channel and device number, as in the following example.

Please input Channel-Device (C-DDD)

MAPNET DEVICE: M

4. Using the ENTRY keypad, press the appropriate numeric key for the sensor’s channel (1 or 2), the hyphen

C--> key, and the appropriate numeric key(s) (1 through 127) for the sensor’s device number. Then press

the <ENTER> key.

The display now shows you the location (custom label) and status of the sensor.

BLDG. 21-l MECHANICAL ROOM

SMOKE DETECTOR

NORMAL

5. To verify the sensor’s MAPNET@ device address, press the <FUNCTION> key on the DISPLAY/ACTION

keypad. The display now looks like the example shown below.

DEVICE ADDRESS: 4-15

MAPNET DEVICE: M2-15

The channel and address displayed must match the address entered in Step 4.

NOTE: Pressing the <FUNCTION> key allows you to view status information on the sensor that was

verified in Step 5. Pressing the <FUNCTION> key or the <NEXT> key on the DISPLAY/ACTION

keypad repeatedly allows you to view 13 more status displays on this particular sensor; using the

.zPREVIOUS> key allows you to go back and look at a previously viewed display.

Status displays 8 through 11 are explained below. The displays reveal the following information:

sensor’s sensitivity as programmed in the 4020 panel; average sensor value and sensor value

needed to cause an alarm; current sensor value; and highest (peak) sensor value to date.

6. To display the sensitivity programmed for the sensor, press the =zFUNCTION> key six more times.

NOTE: If you accidentally press the <FUNCTION> key more than six times, you can go back one display

at a time using the <PREVIOUS> key on the DISPLAY/ACTION keypad.
