DISPLAY/ACTION

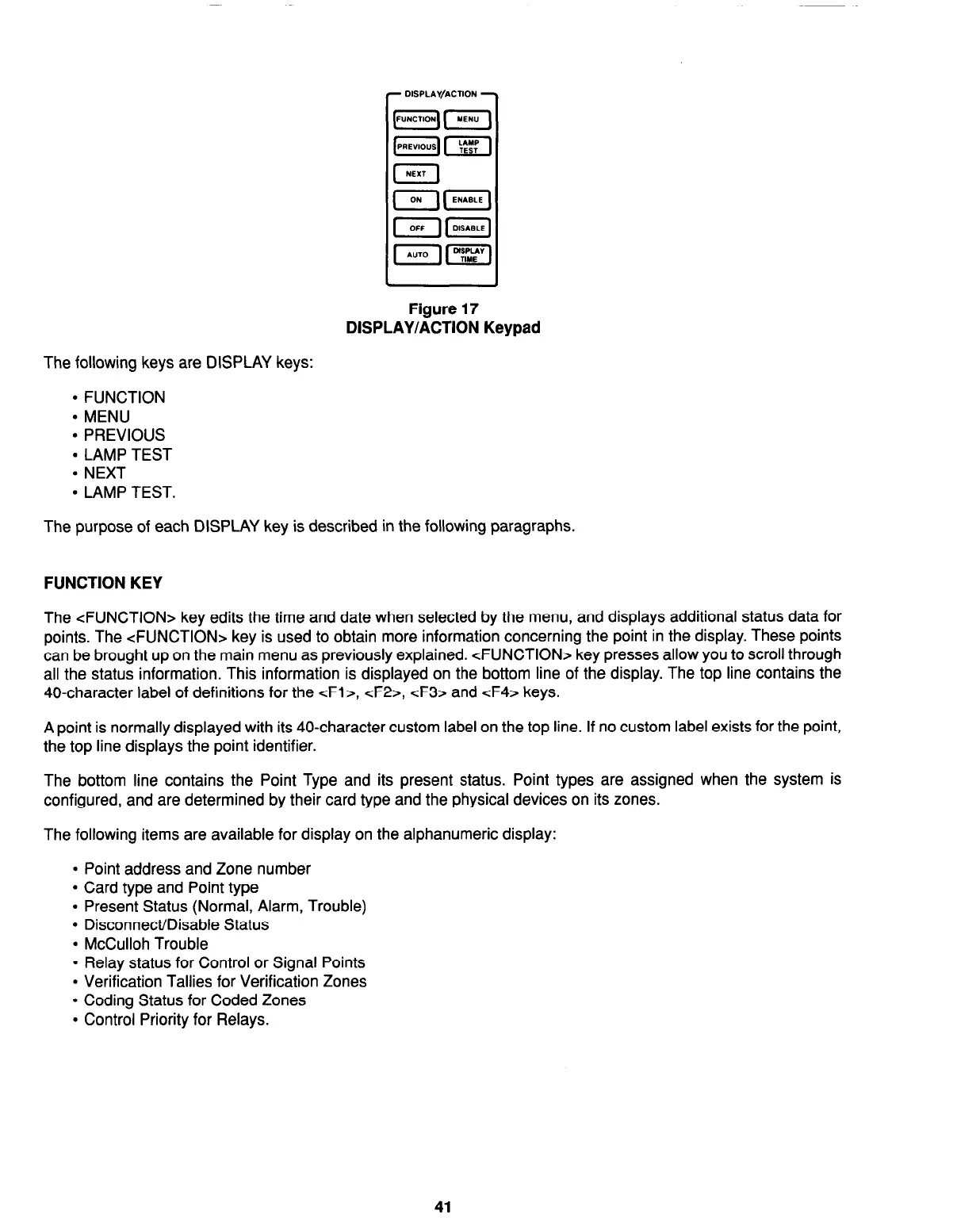

Figure 17
DISPLAY/ACTION Keypad
The following keys are DISPLAY keys:
l
FUNCTION
l
MENU
l
PREVIOUS
. LAMP TEST
l
NEXT
l
LAMP TEST.
The purpose of each DISPLAY key is described in the following paragraphs.
FUNCTION KEY
The <FUNCTION> key edits the time and date when selected by the menu, and displays additional status data for
points. The <FUNCTION> key is used to obtain more information concerning the point in the display. These points
can be brought up on the main menu as previously explained. <FUNCTION> key presses allow you to scroll through
all the status information. This information is displayed on the bottom line of the display. The top line contains the
40-character label of definitions for the cFl>, <F2>, <F3> and <F4> keys.
A point is normally displayed with its 40-character custom label on the top line. If no custom label exists for the point,
the top line displays the point identifier.
The bottom line contains the Point Type and its present status. Point types are assigned when the system is
configured, and are determined by their card type and the physical devices on its zones.
The following items are available for display on the alphanumeric display:
l
Point address and Zone number
l
Card type and Point type
l
Present Status (Normal, Alarm, Trouble)
l
Disconnect/Disable Status
l
McCulloh Trouble
l
Relay status for Control or Signal Points
l
Verification Tallies for Verification Zones
l
Coding Status for Coded Zones
l
Control Priority for Relays.
41
