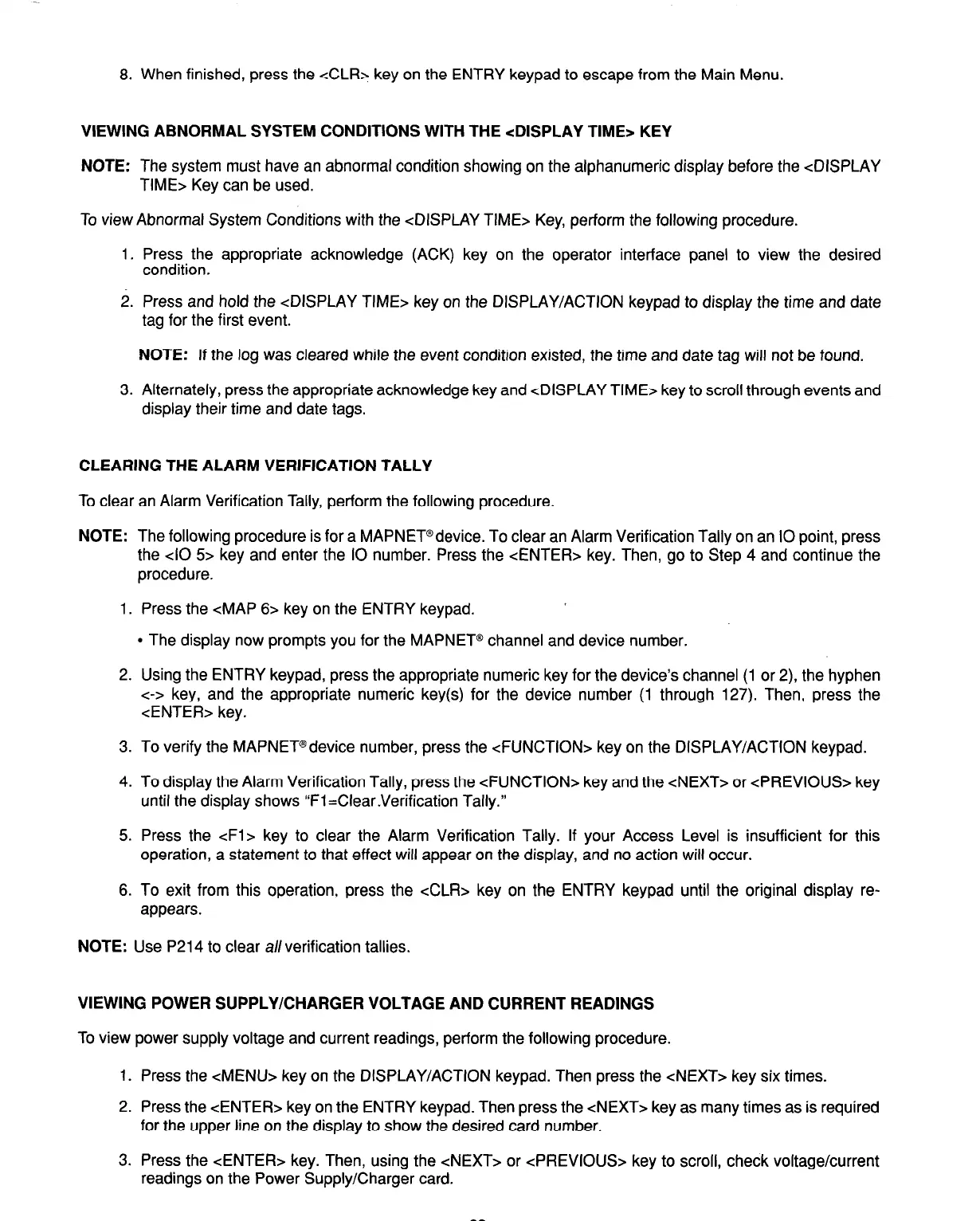

8. When finished, press the cCLR> key on the ENTRY keypad to escape from the Main Menu.
VIEWING ABNORMAL SYSTEM CONDITIONS WITH THE <DISPLAY TIME> KEY
NOTE: The system must have an abnormal condition showing on the alphanumeric display before the <DISPLAY
TIME> Key can be used.
To view Abnormal System Conditions with the <DISPLAY TIME> Key, perform the following procedure.
1. Press the appropriate acknowledge (ACK) key on the operator interface panel to view the desired
condition.
2. Press and hold the <DISPLAY TIME> key on the DISPLAY/ACTION keypad to display the time and date
tag for the first event.
NOTE: If the log was cleared while the event condition existed, the time and date tag will not be found.
3. Alternately, press the appropriate acknowledge key and <DISPLAY TIME> key to scroll through events and
display their time and date tags.
CLEARING THE ALARM VERIFICATION TALLY
To clear an Alarm Verification Tally, perform the following procedure.
NOTE:
The following procedure is for a MAPNET@device. To clear an Alarm Verification Tally on an IO point, press
the cl0 5s key and enter the IO number. Press the <ENTER> key. Then, go to Step 4 and continue the
procedure.
1. Press the <MAP 6s key on the ENTRY keypad.
l
The display now prompts you for the MAPNET@ channel and device number.
2. Using the ENTRY keypad, press the appropriate numeric key for the device’s channel (1 or 2), the hyphen
<-> key, and the appropriate numeric key(s) for the device number (1 through 127). Then, press the
<ENTER> key.
3. To verify the MAPNET@device number, press the <FUNCTION> key on the DISPLAY/ACTION keypad.
4. To display the Alarm Verification Tally, press the <FUNCTION> key and the <NEXT> or <PREVIOUS> key
until the display shows “Fl =Clear.Verification Tally.”
5. Press the cFl> key to clear the Alarm Verification Tally. If your Access Level is insufficient for this
operation, a statement to that effect will appear on the display, and no action will occur.
6. To exit from this operation, press the cCLR> key on the ENTRY keypad until the original display re-
appears.
NOTE: Use P214 to clear a// verification tallies.
VIEWING POWER SUPPLY/CHARGER VOLTAGE AND CURRENT READINGS
To view power supply voltage and current readings, perform the following procedure.
1. Press the <MENU> key on the DISPLAY/ACTION keypad. Then press the <NEXT> key six times.
2. Press the <ENTER> key on the ENTRY keypad. Then press the <NEXT> key as many times as is required
for the upper line on the display to show the desired card number.
3. Press the <ENTER> key. Then, using the <NEXT> or <PREVIOUS> key to scroll, check voltage/current
readings on the Power Supply/Charger card.
68
