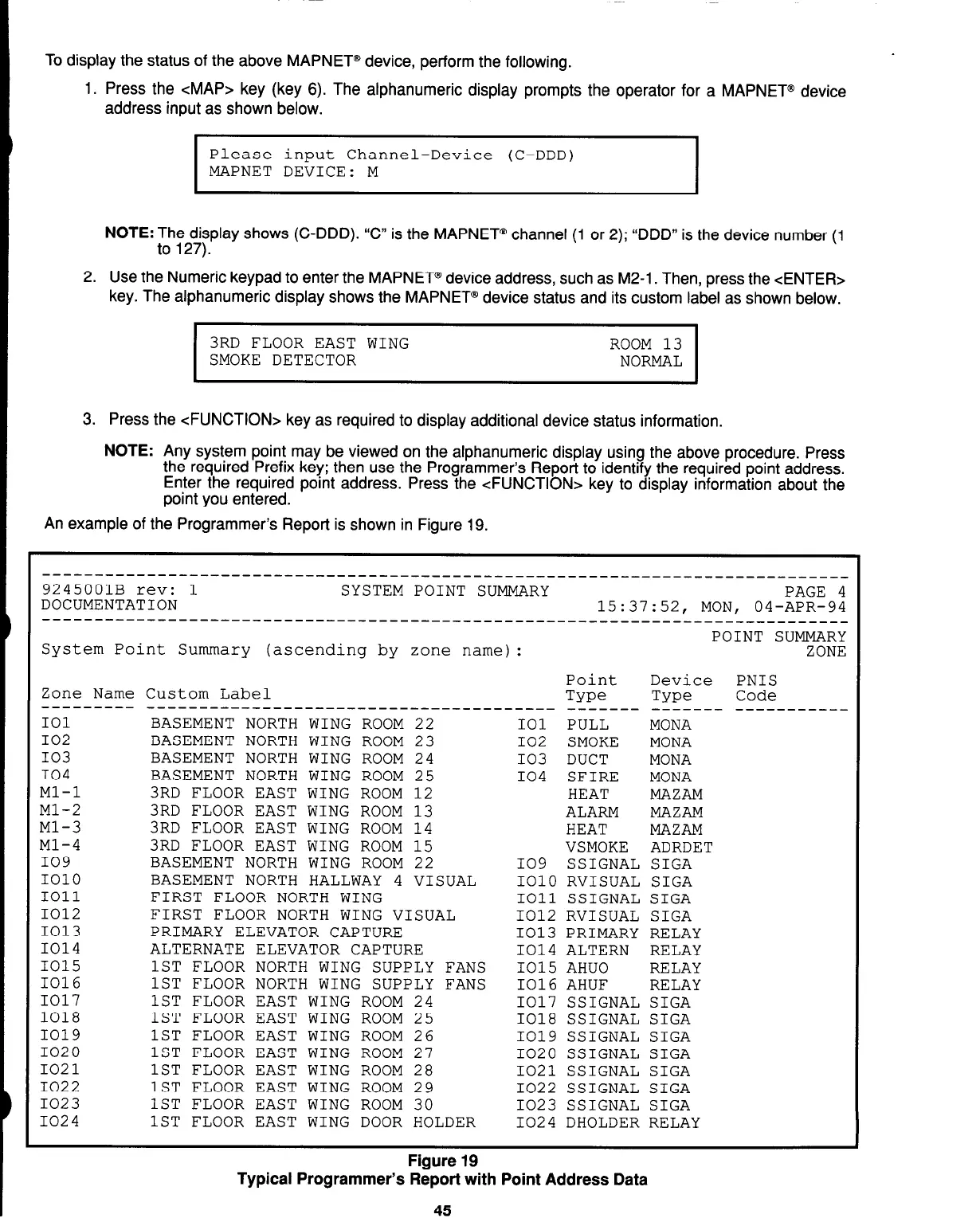

To display the status of the above MAPNET@ device, perform the following.
1. Press the <MAP> key (key 6). The alphanumeric display prompts the operator for a MAPNET@ device
address input as shown below.
Please input Channel-Device (C-DDD)
MAPNET DEVICE: M
I
1
NOTE: The display shows (C-DDD). “C” is the MAPNET@ channel (1 or 2); “DDD” is the device number (1
to 127).
2. Use the Numeric keypad to enter the MAPNET@ device address, such as M2-1. Then, press the <ENTER>
key. The alphanumeric display shows the MAPNET@ device status and its custom label as shown below.
I
3RD FLOOR EAST WING
ROOM 13
SMOKE DETECTOR
NORMAL
I
3. Press the <FUNCTION> key as required to display additional device status information.
NOTE: Any system point may be viewed on the alphanumeric display using the above procedure. Press
the required Prefix key; then use the Programmer’s Report to identify the required point address.
Enter the required point address. Press the <FUNCTION> key to display information about the
point you entered.
An example of the Programmer’s Report is shown in Figure 19.
----_------------------------------------------------------------------------
9245001B rev: 1 SYSTEM POINT SUMMARY
PAGE 4
DOCUMENTATION
15:37:52, MON, 04-APR-94
-------~__---~~~~~__------~~~---------~-------------------------~~-----------
POINT SUMMARY
System Point Summary (ascending by zone name):
ZONE
Point Device
PNIS
Zone Name Custom Label
Type Type
Code
---------
---~~~~~_-------~__---------~----------
_------ -----_- -----------
101
BASEMENT NORTH WING ROOM 22 101
PULL
MONA
102
BASEMENT NORTH WING ROOM 23 102
SMOKE
MONA
103
BASEMENT NORTH WING ROOM 24 103
DUCT
MONA
104
BASEMENT NORTH WING ROOM 25 104
SFIRE
MONA
Ml-l 3RD FLOOR EAST WING ROOM 12 HEAT MAZAM
Ml-2 3RD FLOOR EAST WING ROOM 13 ALARM
MAZAM
Ml-3
3RD FLOOR EAST WING ROOM 14
HEAT MAZAM
Ml-4 3RD FLOOR EAST WING ROOM 15 VSMOKE
ADRDET
109
BASEMENT NORTH WING ROOM 22 109
SSIGNAL
SIGA
1010
BASEMENT NORTH HALLWAY 4 VISUAL 1010
RVISUAL
SIGA
1011 FIRST FLOOR NORTH WING 1011 SSIGNAL SIGA
1012 FIRST FLOOR NORTH WING VISUAL
1012 RVISUAL SIGA
1013 PRIMARY ELEVATOR CAPTURE 1013
PRIMARY
RELAY
1014 ALTERNATE ELEVATOR CAPTURE 1014
ALTERN
RELAY
1015 1ST FLOOR NORTH WING SUPPLY FANS
1015 AHUO
RELAY
1016 1ST FLOOR NORTH WING SUPPLY FANS
1016 AHUF RELAY
1017
1ST FLOOR EAST WING ROOM 24 1017
SSIGNAL
SIGA
1018
1ST FLOOR EAST WING ROOM 25 1018
SSIGNAL
SIGA
1019
1ST FLOOR EAST WING ROOM 26 1019
SSIGNAL
SIGA
1020
1ST FLOOR EAST WING ROOM 27 1020
SSIGNAL
SIGA
1021
1ST FLOOR EAST WING ROOM 28 1021
SSIGNAL
SIGA
1022
1ST FLOOR EAST WING ROOM 29 1022
SSIGNAL
SIGA
1023
1ST FLOOR EAST WING ROOM 30 1023
SSIGNAL
SIGA
1024 1ST FLOOR EAST WING DOOR HOLDER
1024 DHOLDER RELAY
Figure
19
Typical Programmer’s Report with Point Address Data
45
