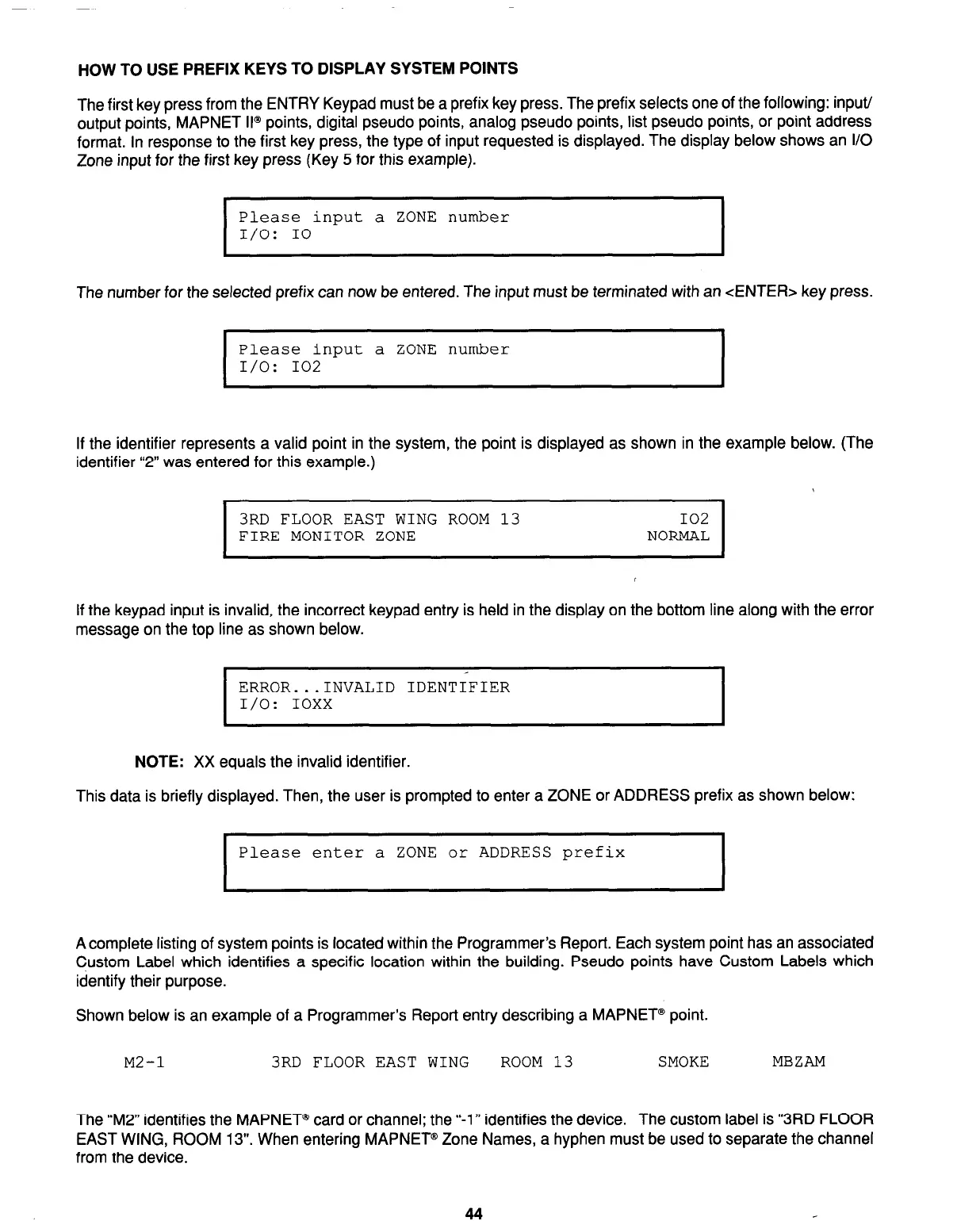

HOW TO USE PREFIX KEYS TO DISPLAY SYSTEM POINTS
The first key press from the ENTRY Keypad must be a prefix key press. The prefix selects one of the following: input/
output points, MAPNET II@ points, digital pseudo points, analog pseudo points, list pseudo points, or point address
format. In response to the first key press, the type of input requested is displayed. The display below shows an I/O
Zone input for the first key press (Key 5 for this example).
I
Please input a ZONE number
I/O: IO
I
The number for the selected prefix can now be entered. The input must be terminated with an <ENTER> key press.
Please input a ZONE number
I/O: 102
If the identifier represents a valid point in the system, the point is displayed as shown in the example below. (The
identifier “2” was entered for this example.)
I
3RD FLOOR EAST WING ROOM 13
102
FIRE MONITOR ZONE
NORMAL
I
If the keypad input is invalid, the incorrect keypad entry is held in the display on the bottom line along with the error
message on the top line as shown below.
I
ERROR.. .INVALID IDENTIFIER
I/O:
IOXX
I
NOTE: XX equals the invalid identifier.
This data is briefly displayed. Then, the user is prompted to enter a ZONE or ADDRESS prefix as shown below:
I
Please enter a ZONE or ADDRESS prefix
I
A complete listing of system points is located within the Programmer’s Report. Each system point has an associated
Custom Label which identifies a specific location within the building. Pseudo points have Custom Labels which
identify their purpose.
Shown below is an example of a Programmer’s Report entry describing a MAPNET@ point.
M2-1
3RD FLOOR EAST WING ROOM 13 SMOKE
MBZAM
The “M2” identifies the MAPNET@ card or channel; the “-1” identifies the device. The custom label is “3RD FLOOR
EAST WING, ROOM 13”. When entering MAPNET@ Zone Names, a hyphen must be used to separate the channel
from the device.
44
