Simplex 4100 Service Instructions

SW1
SW1 = Reset switch to microcontroller.
Fl
Fast Acting 4/l OA.
Jumpers
Shunt Jumper P2:
l To enable RAM Battery Backup: Plug jumper 166-l 57 onto pins 1 and 2.
l To disable RAM Battery Backup: Plug jumper 166-I 57 onto pins 2 and 3.
Shunt Jumper P3:
l To enable Flash EPROM writes: Plug jumper 166-157 onto 1 and 2.
l To disable Flash EPROM writes: Plug jumper 166-l 57 onto 2 and 3.
Connectors
Pl = Same as Pl of the 565-333 UT Master Controller.
P4 = Master Display Port.
l Connects to the master display board (optional) and drives the display board’s LCD, LEDs, and keypad.
P5+P6 = Connects to a 565-l 61 motherboard for power and comm connections, plus two external inputs.
U5 U6 U8 U9
u12 u13
u14
LED1 P4
SW1
Pl

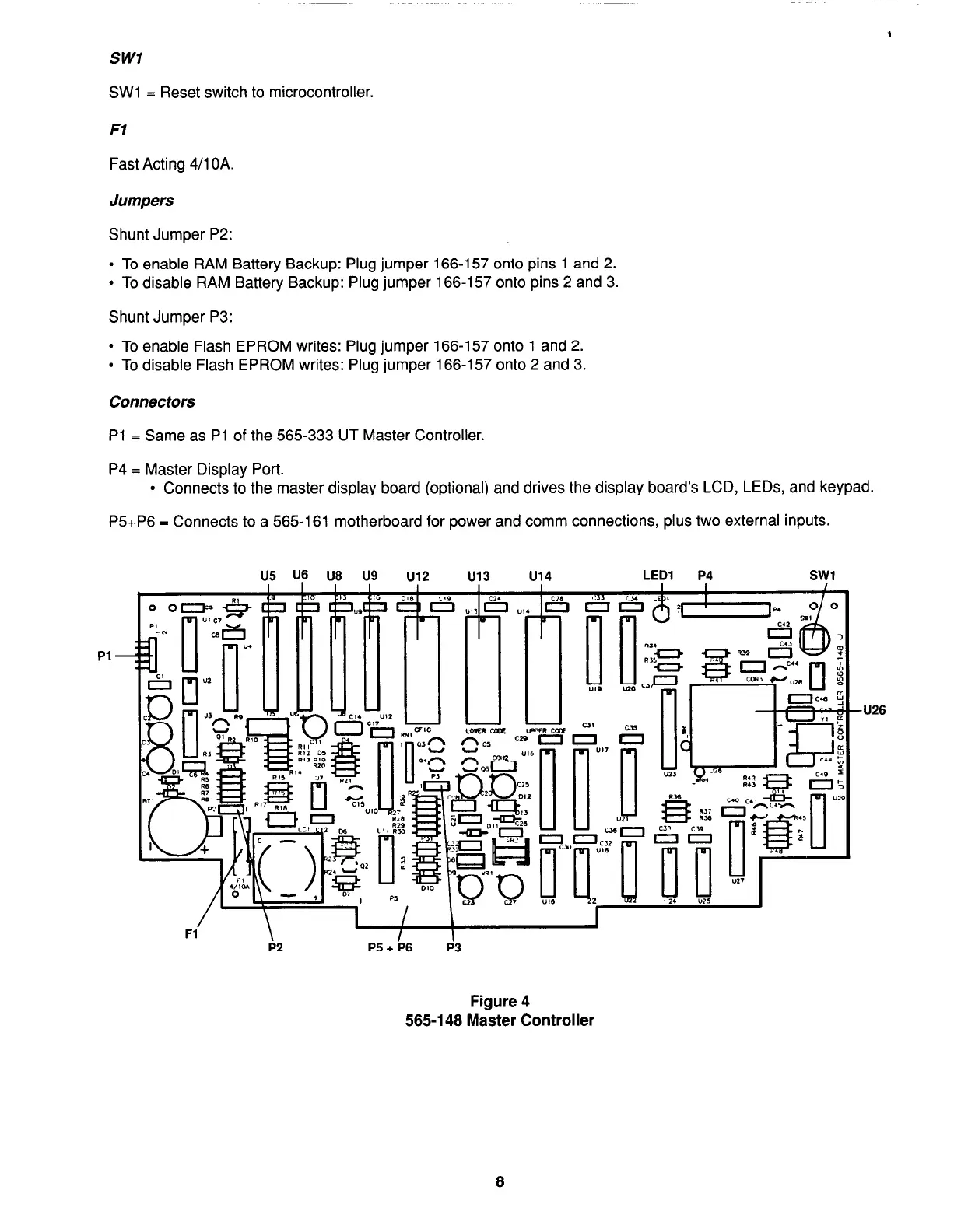

Figure 4
565-l 48 Master Controller
-U26
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
