Simplex 4100 Service Instructions

,.
Connectors
Pl = Fits into Socket J2 on the motherboard.
P3 = 25pin female RS-232 connector (Port l/Port A).
P4 = 25pin female RS-232 connector (Port 2/Part B).
LED1
J12IJ13 J14lJ15
R49
Jll
P4
P3

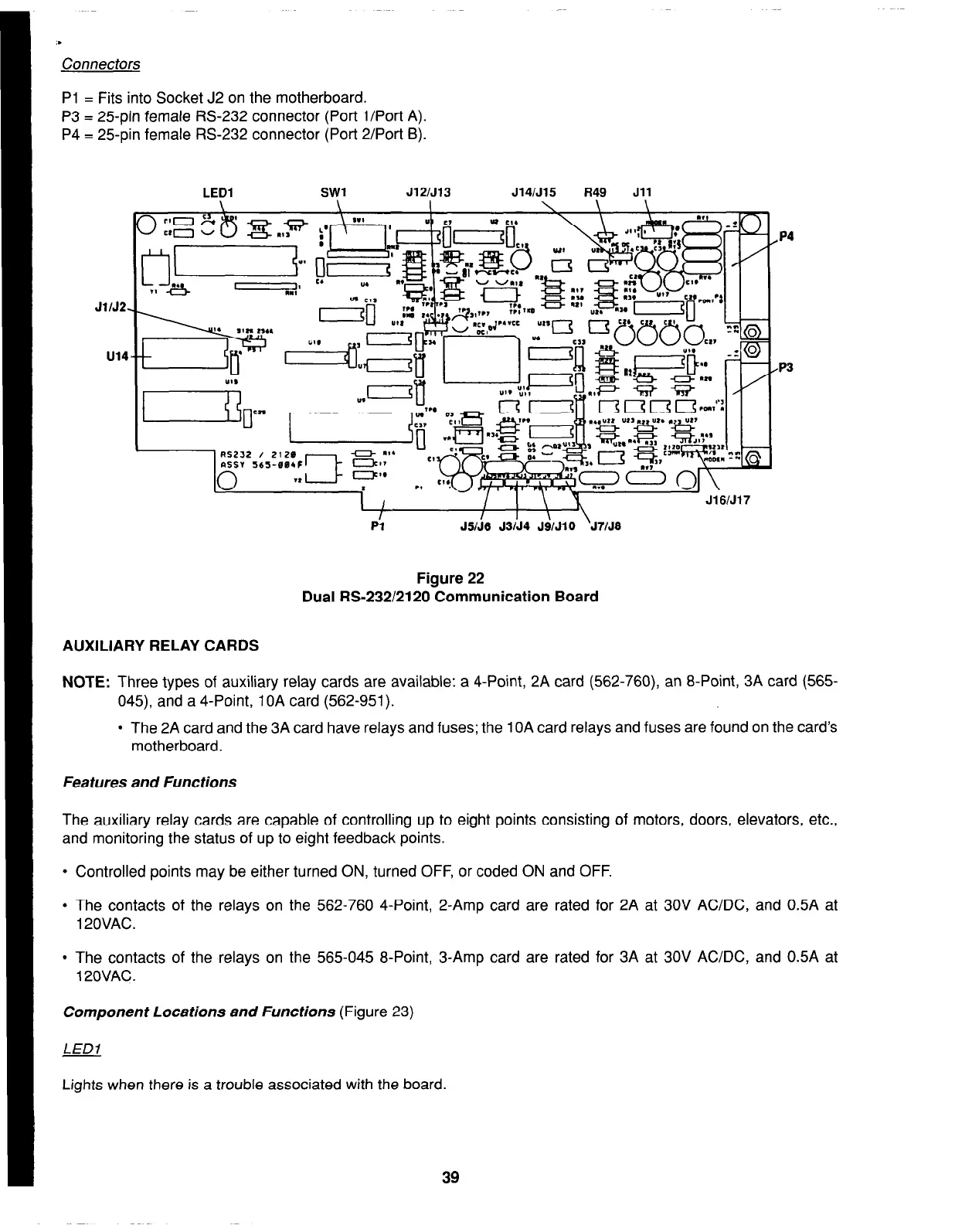

Figure 22
Dual RS-232/2120 Communication Board
AUXILIARY RELAY CARDS
NOTE: Three types of auxiliary relay cards are available: a 4-Point, 2A card (562-760) an 8-Point, 3A card (565-
045), and a 4-Point, 1OA card (562-951).
l The 2A card and the 3A card have relays and fuses: the 1 OA card relays and fuses are found on the card’s
motherboard.
Features and Functions
The auxiliary relay cards are capable of controlling up to eight points consisting of motors, doors, elevators, etc.,
and monitoring the status of up to eight feedback points.
l Controlled points may be either turned ON, turned OFF, or coded ON and OFF.
l The contacts of the relays on the 562-760 4-Point, e-Amp card are rated for 2A at 30V AC/DC, and 0.5A at
12OVAC.
l The contacts of the relays on the 565-045 8-Point, 3-Amp card are rated for 3A at 30V AC/DC, and 0.5A at
12OVAC.
Component Locations and Functions (Figure 23)
LED1
Lights when there is a trouble associated with the board.
39
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
