MASTER MOTHERBOARD ASSEMBLY
Provides field termination points for the 15 circuits that make up a basic 4100 Fire Alarm System.
Board Identification
Four types of master motherboards are available, each of which can be identified by the name and number it bears.
They are:
Master Motherboard (562-855)
- Style B (formerly Class B) w/o suppression
1
Master Motherboard (562-859)
t
See Figure 5
- Style B with suppression
A
Master Motherboard Termination Board (562-978)
- Style D (formerly Class A) w/o suppression
1
Master Motherboard Termination Board (562-979)
- Style D with suppression.
See Figure 6
TB3 P4
TBl P5 P7
TB2 P6
TB4

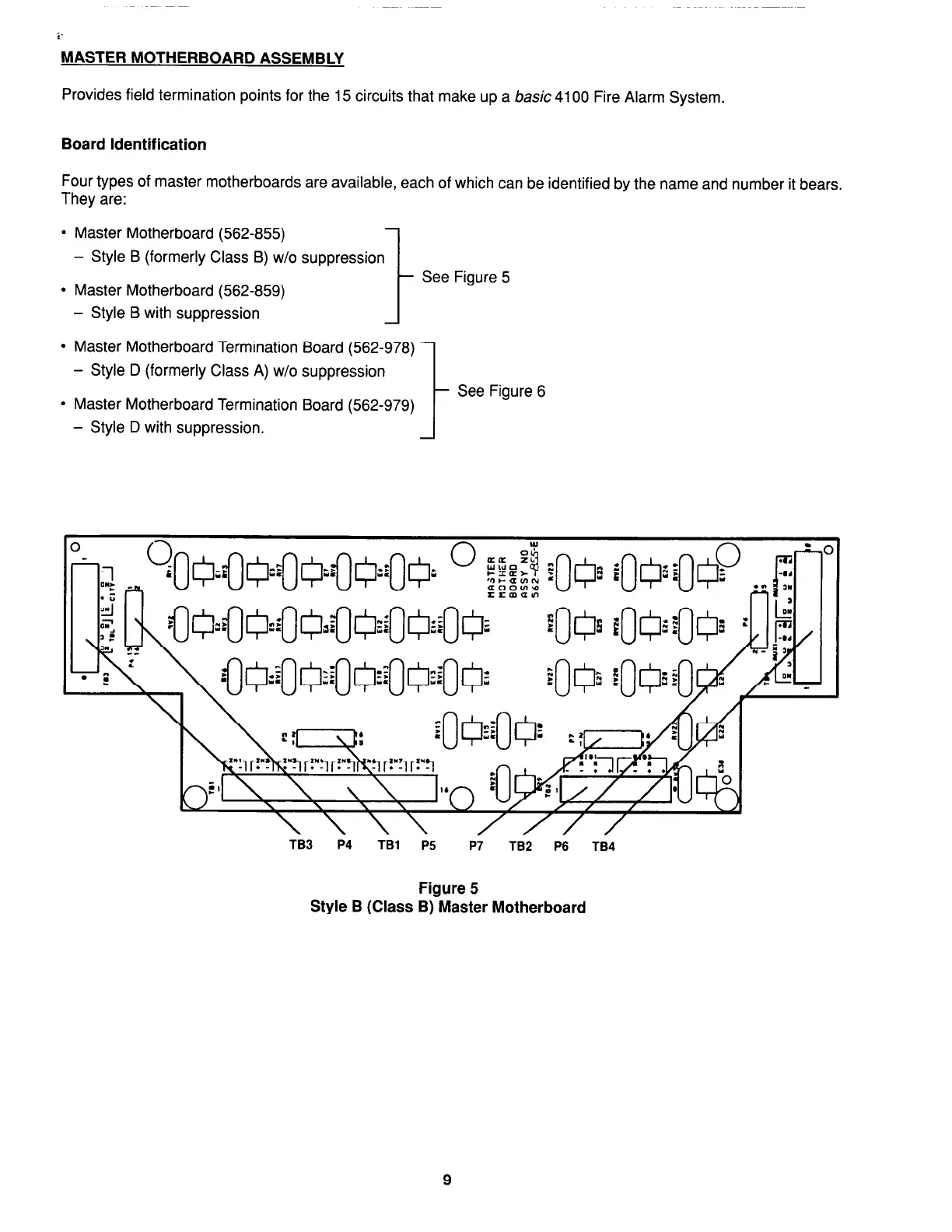

Figure 5
Style B (Class B) Master Motherboard
9
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
