Simplex 4100 Service Instructions

5

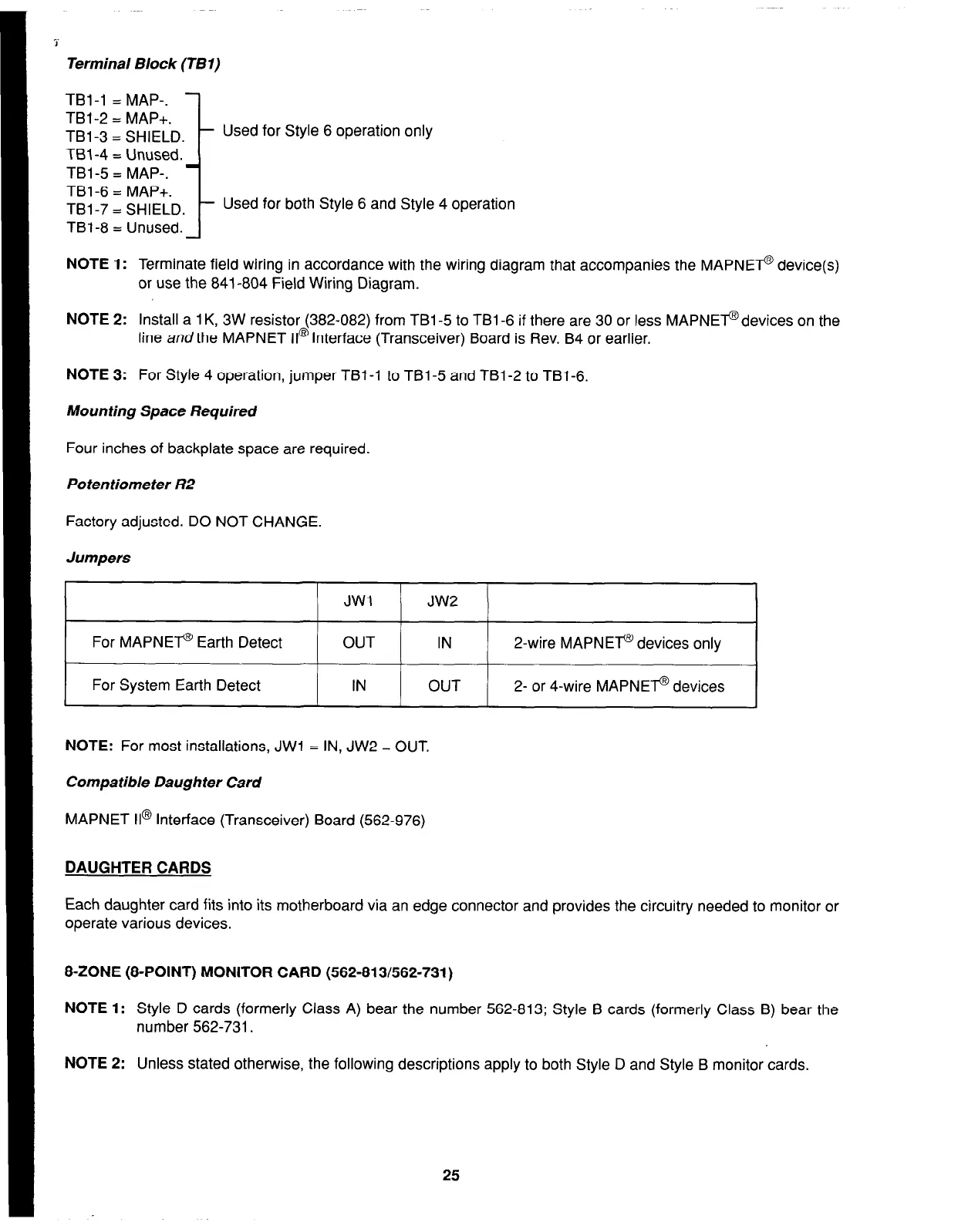

Terminal Block (TBl)
TBl-1 = MAP-.
TBl-2 = MAP+.
TBl-3 = SHIELD.
TBl-4 = Unused.
TBl-5 = MAP-.
TBl-6 = MAP+.
TBl-7 =
SHIELD.
TBl-8 = Unused.
Used for Style 6 operation only
Used for both Style 6 and Style 4 operation
NOTE 1: Terminate field wiring in accordance with the wiring diagram that accompanies the MAPNET@ device(s)
or use the 841-804 Field Wiring Diagram.
NOTE 2: Install a 1 K, 3W resistor (382-082) from TBl-5 to TBl-6 if there are 30 or less MAPNET@devices on the
line and the MAPNET II@ Interface (Transceiver) Board is Rev. 84 or earlier.
NOTE 3:
For Style 4 operation, jumper TBl-1 to TBl-5 and TBl-2 to TBl-6.
Mounting Space Required
Four inches of backplate space are required.
Potentiometer R2
Factory adjusted. DO NOT CHANGE.
Jumpers
For MAPNET@ Earth Detect
For System Earth Detect
JWl
OUT
IN
JW2
IN
OUT
2-wire MAPNEP devices only
2- or 4-wire MAPNET@ devices
NOTE: For most installations, JWl = IN, JW2 = OUT.
Compatible Daughter Card
MAPNET II@ Interface (Transceiver) Board (562-976)
DAUGHTER CARDS
Each daughter card fits into its motherboard via an edge connector and provides the circuitry needed to monitor or
operate various devices.
8-ZONE (&POINT) MONITOR CARD (562-813/562-731)
NOTE 1:
NOTE 2:
Style D cards (formerly Class A) bear the number 562-813; Style B cards (formerly Class B) bear the
number 562-731.
Unless stated otherwise, the following descriptions apply to both Style D and Style B monitor cards.
25
