Simplex 4100 Service Instructions

1
NOTE 3: When replacing a defective motherboard, affix an address label to the replacement board that matches
the label on the original board.
LED1
SW1
JWl,2,3and4
I
Pl

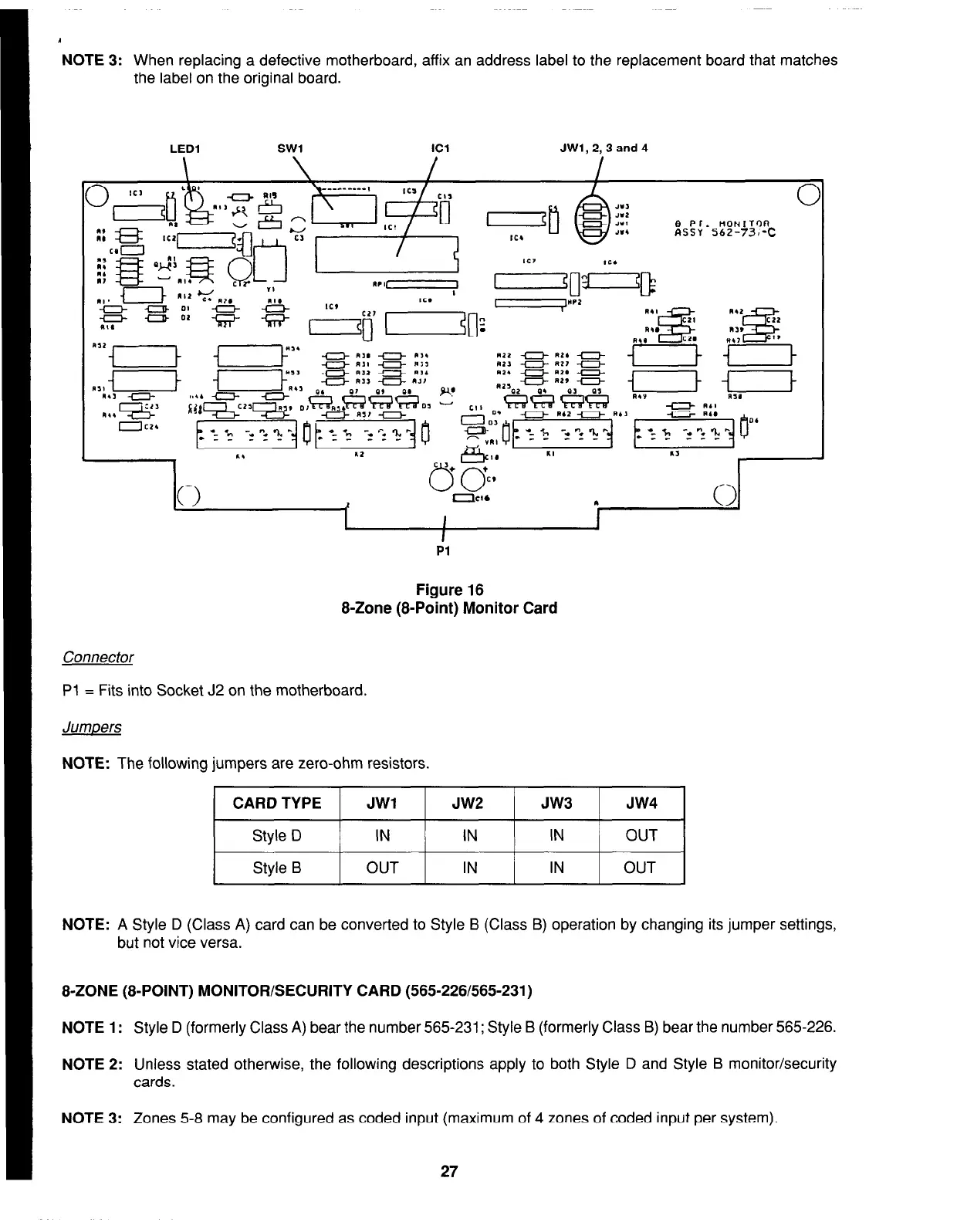

Figure 16
8-Zone (8-Point) Monitor Card
Connector
Pl = Fits into Socket J2 on the motherboard.
NOTE: The following jumpers are zero-ohm resistors.
( CARDTYPE 1 JWl 1 JW2 / JW3 1 JW4 1
Style D
Style B
IN
IN
IN OUT
OUT
IN
IN OUT
NOTE: A Style D (Class A) card can be converted to Style B (Class B) operation by changing its jumper settings,
but not vice versa.
8-ZONE (&POINT) MONITOR/SECURITY CARD (565-226565-231)
NOTE 1: Style D (formerly Class A) bear the number 565231; Style B (formerly Class B) bear the number 565226.
NOTE 2: Unless stated otherwise, the following descriptions apply to both Style D and Style B monitor/security
cards.
NOTE 3: Zones 5-8 may be configured as coded input (maximum of 4 zones of coded input per system).
27
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
