Simplex 4100 Service Instructions

i
LED1
Jl JW6/JW7 u17
SW1
I
Pl

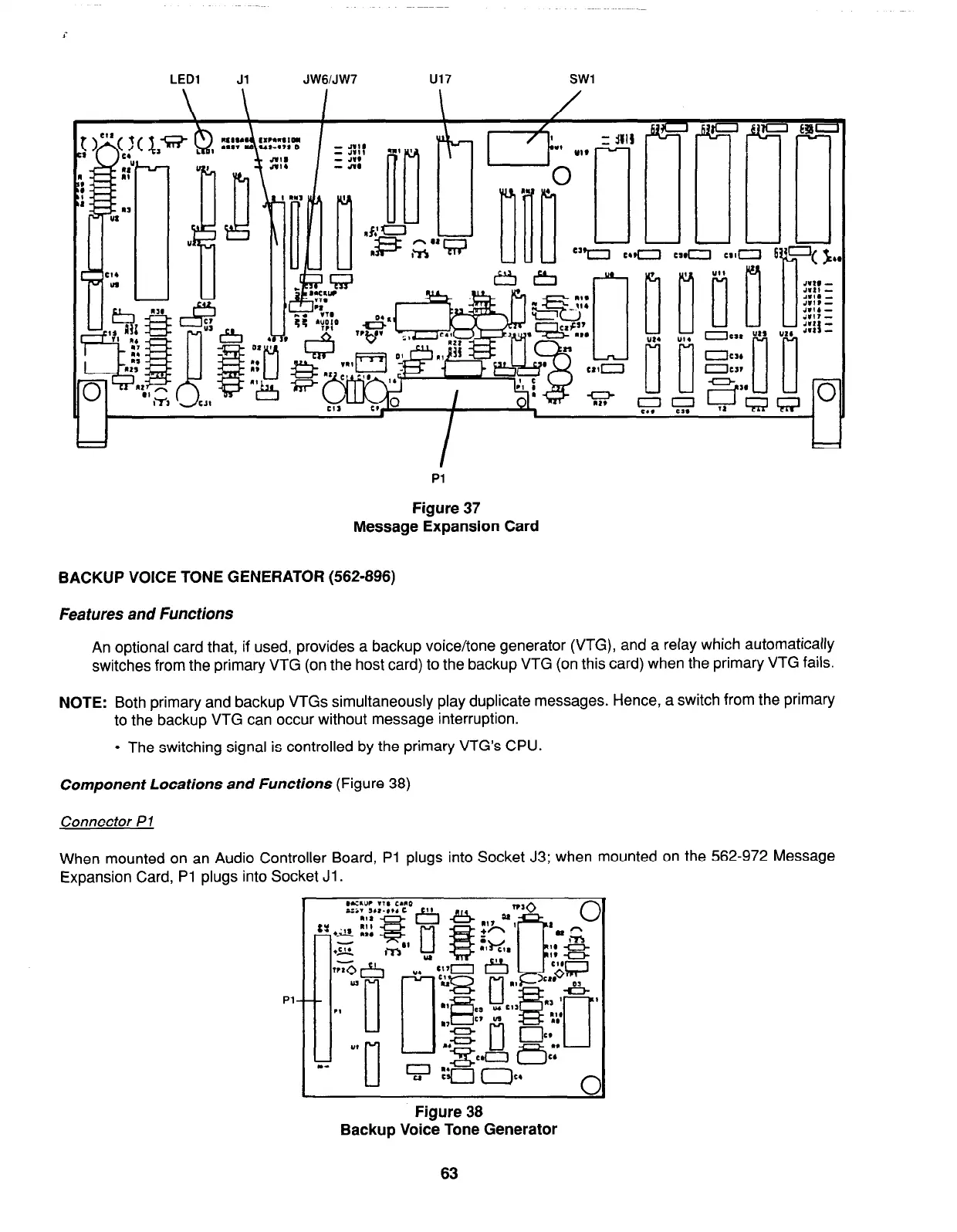

Figure 37
Message Expansion Card
BACKUP VOICE TONE GENERATOR (562-896)
Features and Functions
An optional card that, if used, provides a backup voice/tone generator (VTG), and a relay which automatically
switches from the primary VTG (on the host card) to the backup VTG (on this card) when the primary VTG fails.
NOTE: Both primary and backup VTGs simultaneously play duplicate messages. Hence, a switch from the primary
to the backup VTG can occur without message interruption.
l The switching signal is controlled by the primary VTG’s CPU.
Component Locations and Functions (Figure 38)
Connector P 1
When mounted on an Audio Controller Board, Pl plugs into Socket J3; when mounted on the 562-972 Message
Expansion Card, Pl plugs into Socket Jl .
Figure 38
Backup Voice Tone Generator
63
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
