Simplex 4100 - Loo-Watt Amplifier Component Locations

TB3
Rl
\
\
I
r -- .- - -- “.W . . . .I
n ii
a- .a

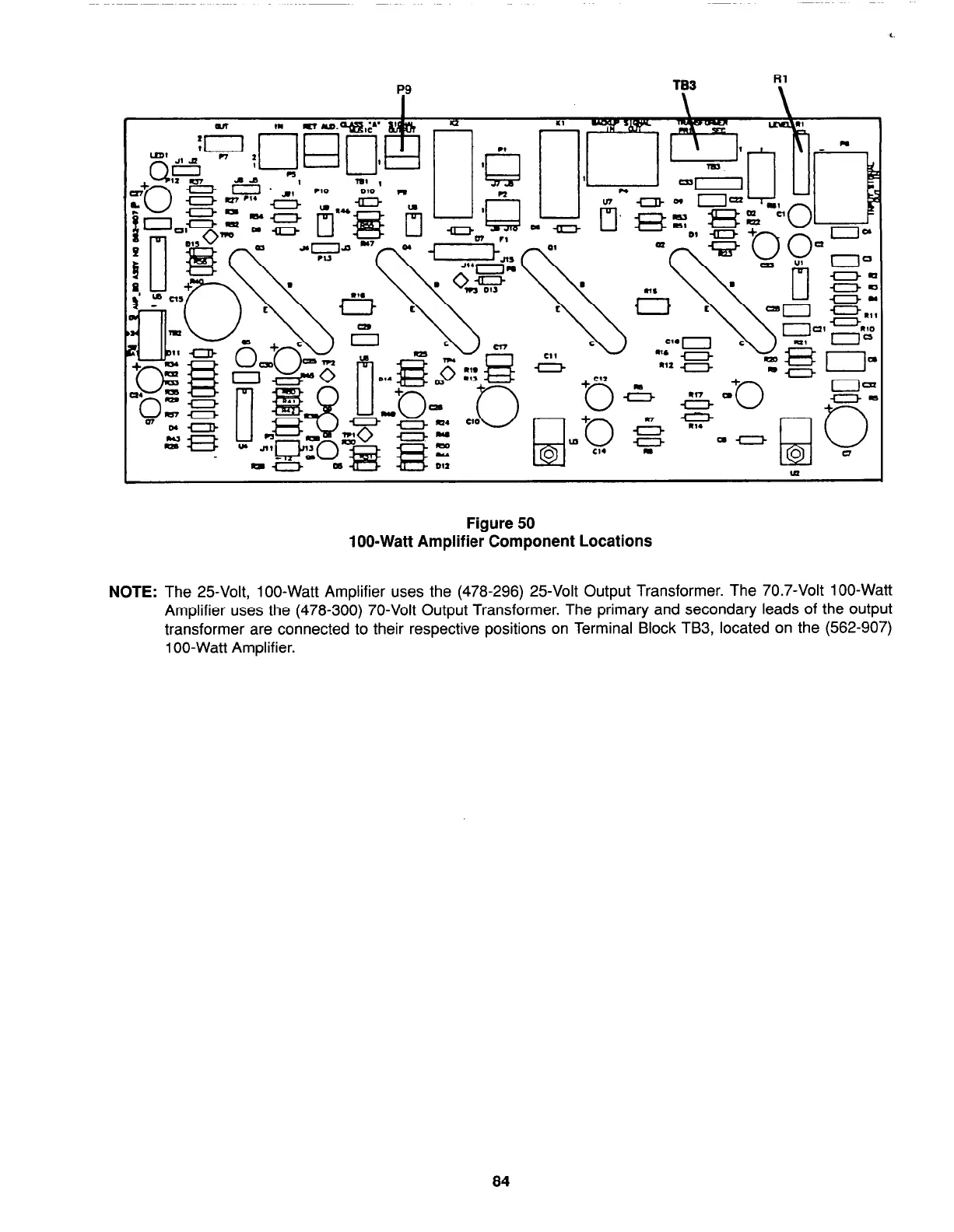

Figure 50
loo-Watt Amplifier Component Locations
NOTE: The 25-Volt, loo-Watt Amplifier uses the (478-296) 25-Volt Output Transformer. The 70.7-Volt loo-Watt
Amplifier uses the (478-300) 70-Volt Output Transformer. The primary and secondary leads of the output
transformer are connected to their respective positions on Terminal Block TB3, located on the (562-907)
loo-Watt Amplifier.
84
