Simplex 4100 Service Instructions

In addition to the above, the Master Power Supply can connect to:
l A system current meter
l A system voltage meter
l A battery charging current meter
l A battery voltage meter.

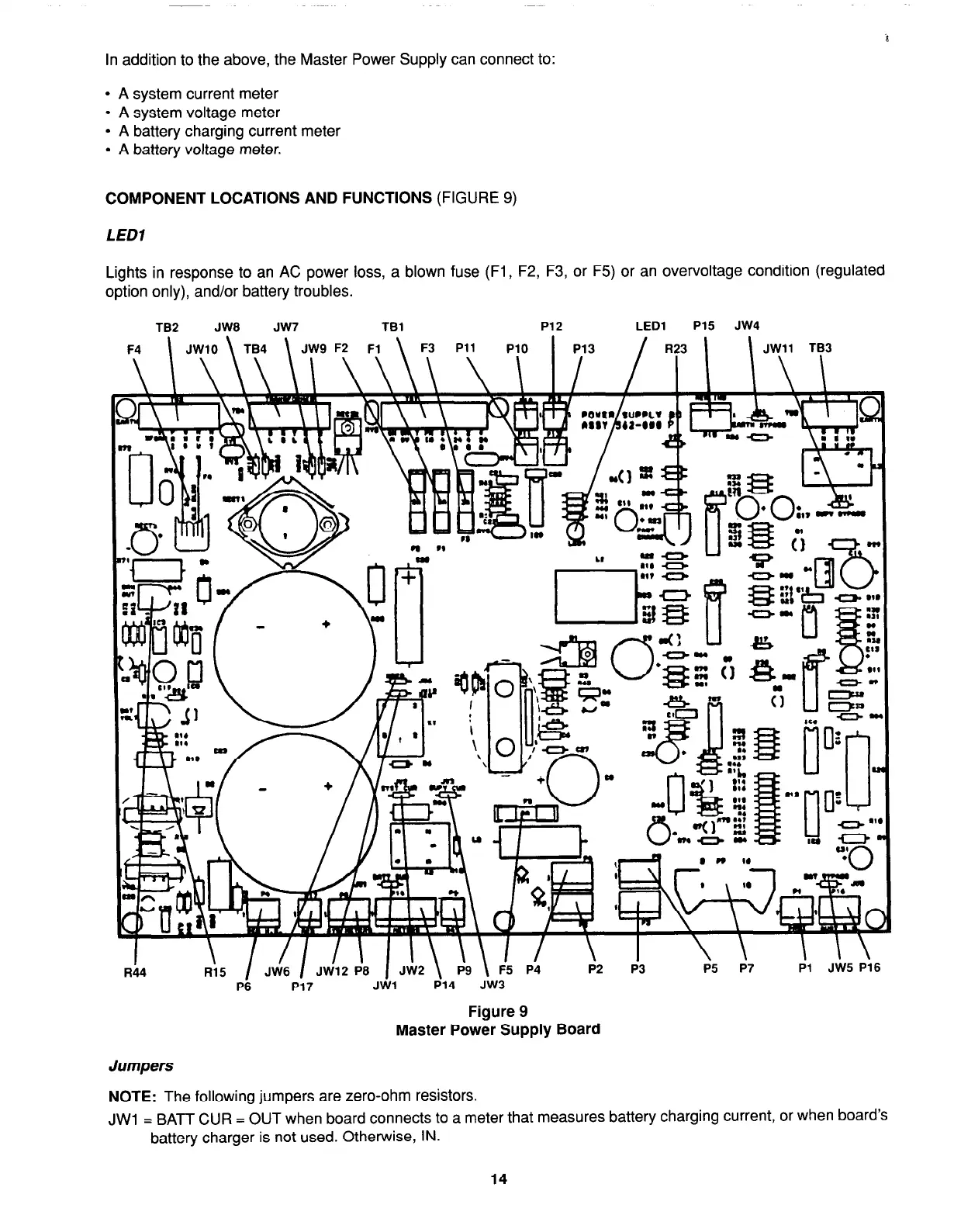

COMPONENT LOCATIONS AND FUNCTIONS (FIGURE 9)
LED1
Lights in response to an AC power loss, a blown fuse (Fl, F2, F3, or F5) or an overvoltage condition (regulated
option only), and/or battery troubles.
TB2 JW8 JW7
TBl
P12
LED1 P15 JW4
FA \ .IWlll \ TRA
\ .IWQ F2
Fl
\ F3 Pll
Plrl I PlR
/ R7R 1
R;5 JVi6 / J&2 +8
1 JiJ2 \ 69 \ F-5
J&5 Pi6
P6
P17
JWl
P14
JW3
Figure 9
Master Power Supply Board
Jumpers
NOTE: The following jumpers are zero-ohm resistors.
JWl = BATT CUR = OUT when board connects to a meter that measures battery charging current, or when board’s
battery charger is not used. Otherwise, IN.
14
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
